Product Detail

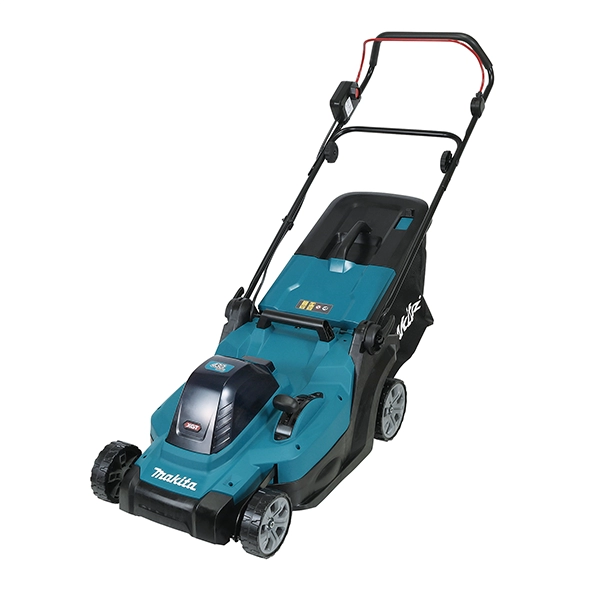

LM004GZ 430 mm (17")

40Vmax Cordless Lawn Mower


Features


  • 40Vmax XGT BL Cordless 43 cm (17") Lawn Mower
  • LM003G has been developed based on DLM382, and are easy-to-use due to the use of a single battery, featuring improved mowing performance, grass collection performance
    and maneuverability
  • Higher mowing performance; the blade is designed to tilt down towards the front of the mower when attached, minimizing double-cutting to reduce the load on the machine for reduced energy consumption, better feeling of cutting and improved grass collecting performance
  • Warning lamp for Battery capacity, High temperature and Overload
  • Less force required to turn on the mower; Reduction in user fatigue has been achieved by redesigning the shape of switch lever and the specification of spring to reduce the force required to pull switch lever to turn on the mower
  • Easy-to-operate handle lock levers;
    • each side of the handle can be locked/unlocked with just a single action without tool
    • allows for easier folding of handle when storing the mower
  • Easier cutting height adjustment;
    • Easy-to-grip egg-shaped lever top
    • U-shaped notches, which provide positive stops for lever, can be visually checked, making it easy to adjust cutting height

Specification



Thumbnail
Model NameLM004GZ
Product Name40Vmax Cordless Lawn Mower
Max Output740 W
Cutting Width430 mm (17")
Cutting Height20 - 75 mm (13/16" - 2-15/16")
Wheel DiameterFront: 140 mm (5-1/2")
Rear: 165 mm (6-1/2")
Grass Catcher Capacity50 L
No Load Speed (RPM)3,800
Dimensions (L x W x H)1,390 - 1,440 x 460 x 990 - 1,020 mm
(54-3/4 - 56-3/4 x 18-1/8 x 39 - 40-1/4")
Net Weight15.6 - 18.2 kg (34.4 - 40.1 lbs.)
Continuous Usage Time (approx.)52 min with BL4080F

* Recommended batteries 2.0Ah, 2.5Ah, 4.0Ah, 5.0Ah, 8.0Ah

Standard Equipment
Socket Wrench, Blade, Mulching Plug, Grass Catcher

Available Option
GZ: Without Charger & Battery
