Product Detail

DCU601Z

18Vx2 Battery Powered Wheelbarrow


Features


  • Max load capacity up to 300 kg (661 lbs)
    • on flat ground (0 - 3 degrees): 300 kg (661 lbs)
    • on slope (3 - 12 degrees): 180 kg (397 lbs)

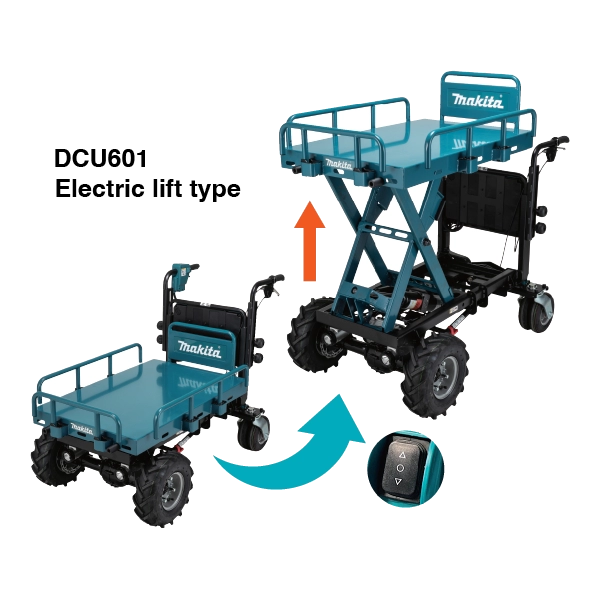

  • Electric lift
    • The switch on the battery box enables the user to lift up the flat frame to 1,020mm above ground level electrically (elevated to 1,020mm in approximately 30 seconds)
    • The electric lift is limited to use on a flat ground, therefore, the machine is equipped with a level gauge to check the leveling of the machine
  • Compatible with various sizes of loads
    • L x W: 965 x 645 (mm)
    • The front, left, and right guards are designed to be easily lowered below the flat frame by lifting and sliding them, allowing for easy loading and unloading while dragging loads without lifting up them
  • 4-wheel barrow (with front-wheel drive system) for stable load-carrying even with heavy loads
  • XPT (eXtreme Protection Technology) / IPX4-compatible
    High water-resistance allows to operate the machine even if it is wet with water
  • Powered by two 18V LXT batteries in series
    • Two or four batteries can be installed for a 2-series/2-parallel connection for a secure amount of work
    • Equipped with a battery selection switch to choose which combination of 2 batteries to use

Specification



Thumbnail
Model NameDCU601Z
Product Name18Vx2 Battery Powered Wheelbarrow
Max Load Capacity300 kg on flat ground (0 - 3 degrees)
180 kg on slope (3 - 12 degrees)
Traveling SpeedForward, High: 5 km/h
Medium: 3.5 km/h
Low: 1.5 km/h
Reverse: 1 km/h
Max Climbing Capacity12°
Dimensions (L x W x H)1,400 x 730 x 820 mm
(55 x 28-3/4 x 32-1/4")
Net Weight145 kg (320 lbs.)
Continuous Usage Time (approx.)7.2 km/ 100 min
with 4 pcs BL1860B batteries
on flat ground with lights off
loaded with 300 kg at 5.0 km/h
Available Option
Z: Without Charger & Battery
