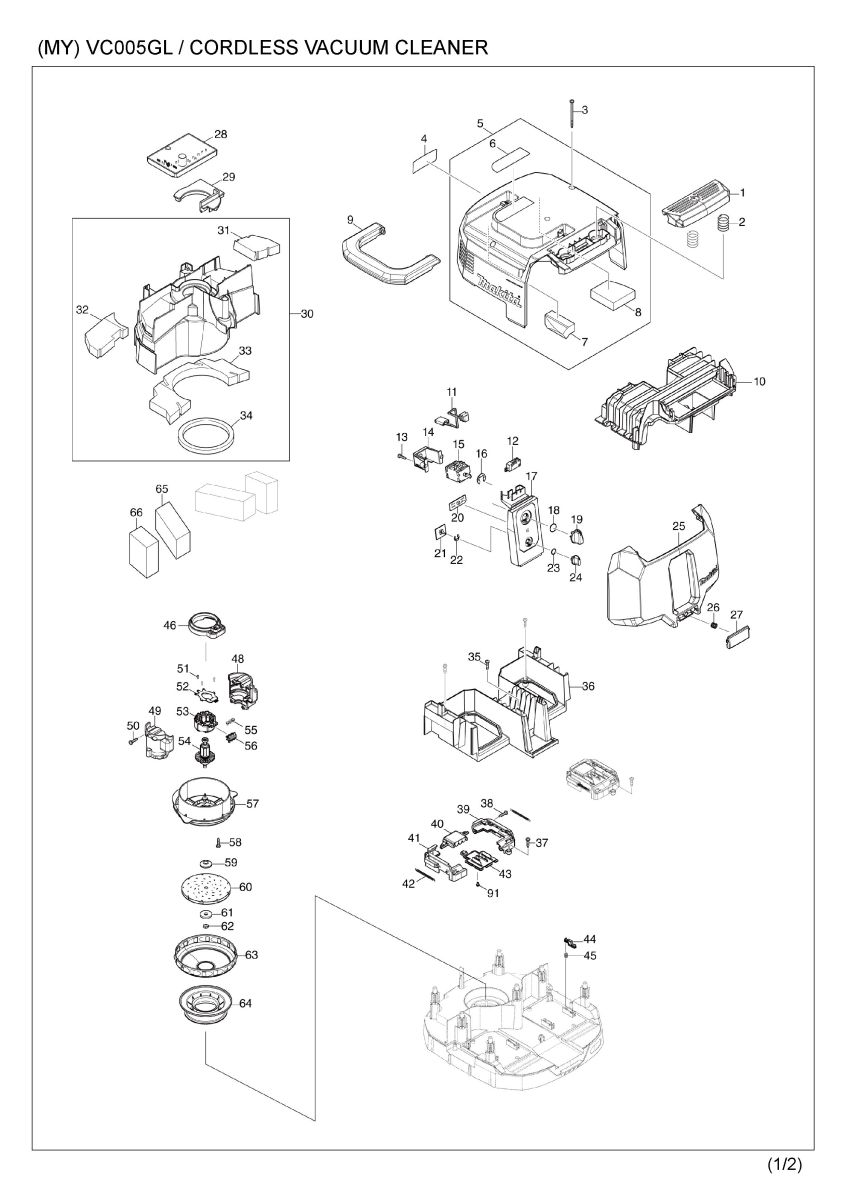

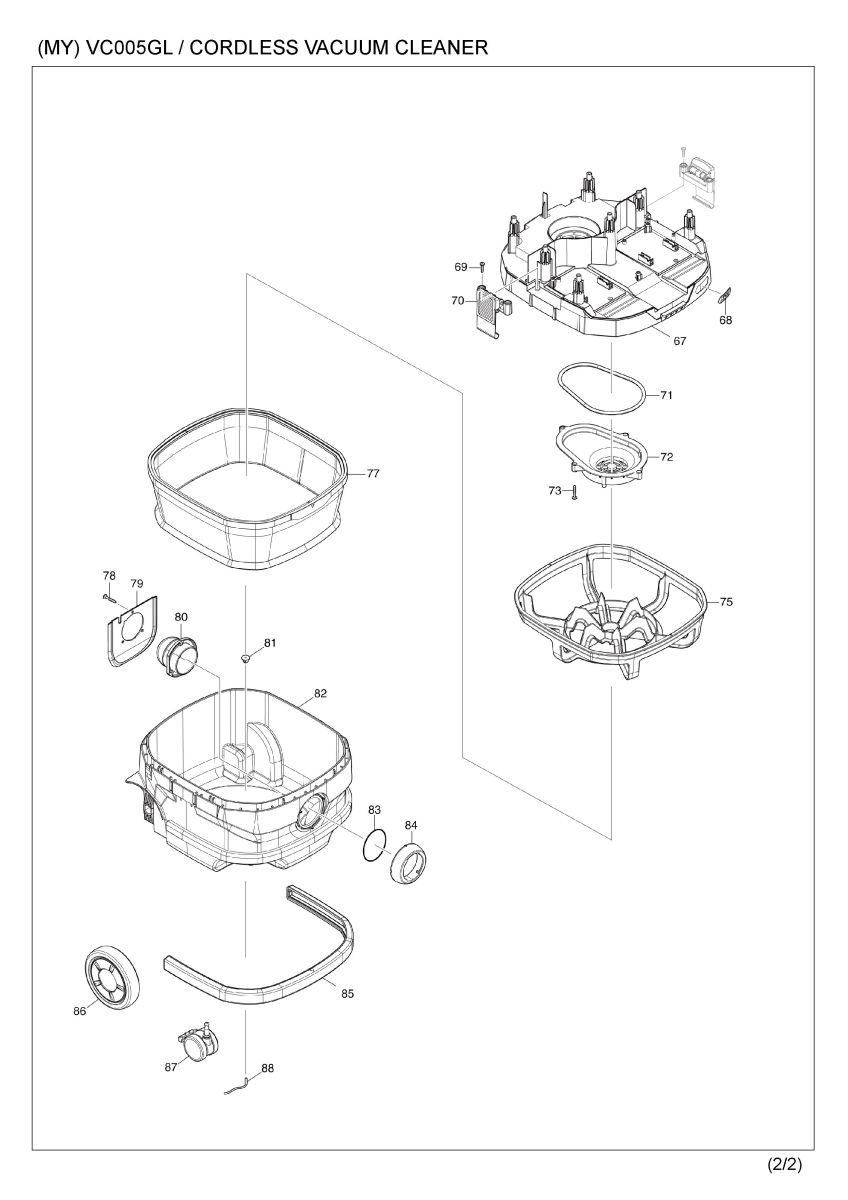

Part Diagram
Total: 105 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 413B26-9 | SWITCH BUTTON | 1 | |
| 2 | 234273-5 | COMPRESSION SPRING 20 | 2 | |
| 3 | 266340-8 | TAPPING SCREW 4X65 | 7 | |
| 4 | 8112N6-1 | VC005GL NAME PLATE | 1 | |
| 5 | 141F78-1 | COWLING COMPLETE | 1 | |
| D10 | INC. 6-8 | |||
| 6 | 813A18-6 | CAUTION LABEL | 1 | |
| 7 | 422796-7 | TOP DAMPER A | 1 | |
| 8 | 422797-5 | TOP DAMPER B | 1 | |
| 9 | 413B27-7 | GRIP | 1 | |
| 10 | 413B33-2 | UPPER HOUSING | 1 | |
| 11 | 638A20-6 | LEAD UNIT | 1 | |
| 12 | 651910-0 | SWITCH D2VW-01-3HS | 1 | |
| 13 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 14 | 451343-7 | SWITCH HOLDER | 1 | |
| 15 | 650013-7 | SWITCH 1703.4002 | 1 | |
| 16 | 961062-2 | STOP RING E-12 | 1 | |
| 17 | 141H90-3 | SWITCH BASE COMPLETE | 1 | |
| C10 | 8045P7-8 | INDICATION LABEL | 1 | |
| 18 | 213176-6 | O RING 14 | 1 | |
| 19 | 455733-6 | SWITCH LEVER | 1 | |
| 20 | 620F40-4 | INDICATION CIRCUIT | 1 | |
| 21 | 620D39-7 | SUB CONTROLLER | 1 | |
| 22 | 961013-5 | STOP RING E-7 | 1 | |
| 23 | 213054-0 | O RING 9 | 1 | |
| 24 | 451344-5 | SWITCH DIAL | 1 | |
| 25 | 413B28-5 | BATTERY COVER | 1 | |
| 26 | 231456-8 | COMPRESSION SPRING 7 | 1 | |
| 27 | 413B30-8 | BATTERY COVER HOOK | 1 | |
| 28 | 620F37-3 | CONTROLLER | 1 | |
| 29 | 422795-9 | RUBBER CAP | 1 | |
| 30 | 141F84-6 | SEPARATOR COMPLETE | 1 | |
| D10 | INC. 31-34 | |||
| 31 | 422802-8 | BAND DUMPER E | 1 | |
| 32 | 422801-0 | BAND DUMPER D | 1 | |
| 33 | 422799-1 | BAND DUMPER B | 1 | |
| 34 | 422804-4 | SEAL A | 1 | |
| 35 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 36 | 413B31-6 | LOWER HOUSING | 1 | |
| 37 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 38 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 39 | 183U06-0 | TERMINAL CASE SET | 2 | |
| D10 | INC. 41 | |||
| 40 | 413B40-5 | TERMINAL COVER | 2 | |
| 41 | 183U06-0 | TERMINAL CASE SET | 2 | |
| D10 | INC. 39 | |||
| 42 | 232722-6 | TENSION SPRING 4 | 4 | |
| 43 | 632T08-2 | TERMINAL UNIT | 2 | |
| 44 | 413B41-3 | LOCK LEVER | 4 | |
| 45 | 232472-3 | COMPRESSION SPRING 2 | 4 | |
| 46 | 422794-1 | RUBBER RING | 1 | |
| 48 | 183U05-2 | MOTOR HOUSING SET | 1 | |
| D10 | INC. 49 | |||
| 49 | 183U05-2 | MOTOR HOUSING SET | 1 | |
| D10 | INC. 48 | |||
| 50 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 51 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 52 | 620F39-9 | CONTROLLER B | 1 | |
| 53 | 629A83-3 | STATOR | 1 | |
| 54 | 619704-9 | ROTOR | 1 | |
| 55 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 56 | 632S88-2 | LEAD UNIT | 1 | |
| 57 | 413B45-5 | FAN BASE | 1 | |
| 58 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 59 | 313062-2 | FLANGE | 1 | |
| 60 | 240178-9 | FAN 104 | 1 | |
| 61 | 253752-4 | FLAT WASHER 8 | 1 | |
| 62 | 252268-6 | HEX. NUT M6 | 1 | |
| 63 | 347171-5 | FAN COVER | 1 | |
| 64 | 422793-3 | SUPPORT RING | 1 | |
| 65 | 422803-6 | REAR BLOCK FILTER A | 2 | |
| 66 | 422819-1 | REAR BLOCK FILTER B | 2 | |
| 67 | 141G68-0 | TANK COVER COMPLETE | 1 | |
| C10 | 422798-3 | BAND DUMPER A | 1 | |
| 68 | 8030S0-0 | XGT LOGO LABEL | 1 | |
| 69 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 70 | 162A10-2 | HOOK COMPLETE | 2 | |
| 71 | 422805-2 | SEAL RING | 1 | |
| 72 | 413B22-7 | LOWER TANK COVER | 1 | |
| 73 | 266374-1 | TAPPING SCREW 4X25 | 4 | |
| 75 | 413B46-3 | FILTER CAGE | 1 | |
| 77 | 141F85-4 | CLOTH FILTER COMPLETE | 1 | |
| 077-1 | 191V71-1 | CLOTH FILTER SET | 1 | |
| 78 | 266374-1 | TAPPING SCREW 4X25 | 3 | |
| 79 | 457853-2 | HOLDER PLATE | 1 | |
| 80 | 457852-4 | HOLDER | 1 | |
| 81 | 421468-1 | CORD SEAL | 1 | |
| 82 | 413B47-1 | TANK | 1 | |
| 83 | 213655-4 | O RING 56 | 1 | |
| 84 | 457851-6 | INLET | 1 | |
| 85 | 422806-0 | BUMPER | 1 | |
| 86 | 141F86-2 | CASTER 120 COMPLETE | 2 | |
| C10 | 413B49-7 | SHAFT | 2 | |
| 87 | 162A11-0 | CASTER 50 | 2 | |
| 88 | 649150-2 | EARTH LINE 120 | 1 | |
| 91 | 652031-1 | PAN HEAD SCREW M3X6 | 4 | |
| A01 | 191G86-8 | NOZZLE ASSEMBLY SET | 1 | |
| A02 | 140G19-0 | TELESCOPIC PIPE COMPLETE | 1 | |
| A03 | 140G26-3 | BENT PIPE COMPLETE | 1 | |
| A04 | 199493-7 | HOSE COMPLETE 32-1.7 SET | 1 | |
| A05 | 195432-5 | POLY BAG SET(650X650) | 1 | |
| A06 | 413B37-4 | MULTI HOOK | 1 | |
| A07 | 451350-0 | STOPPER | 1 | |
| A08 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| A09 | 911133-5 | PAN HEAD SCREW M4X18 | 1 |
