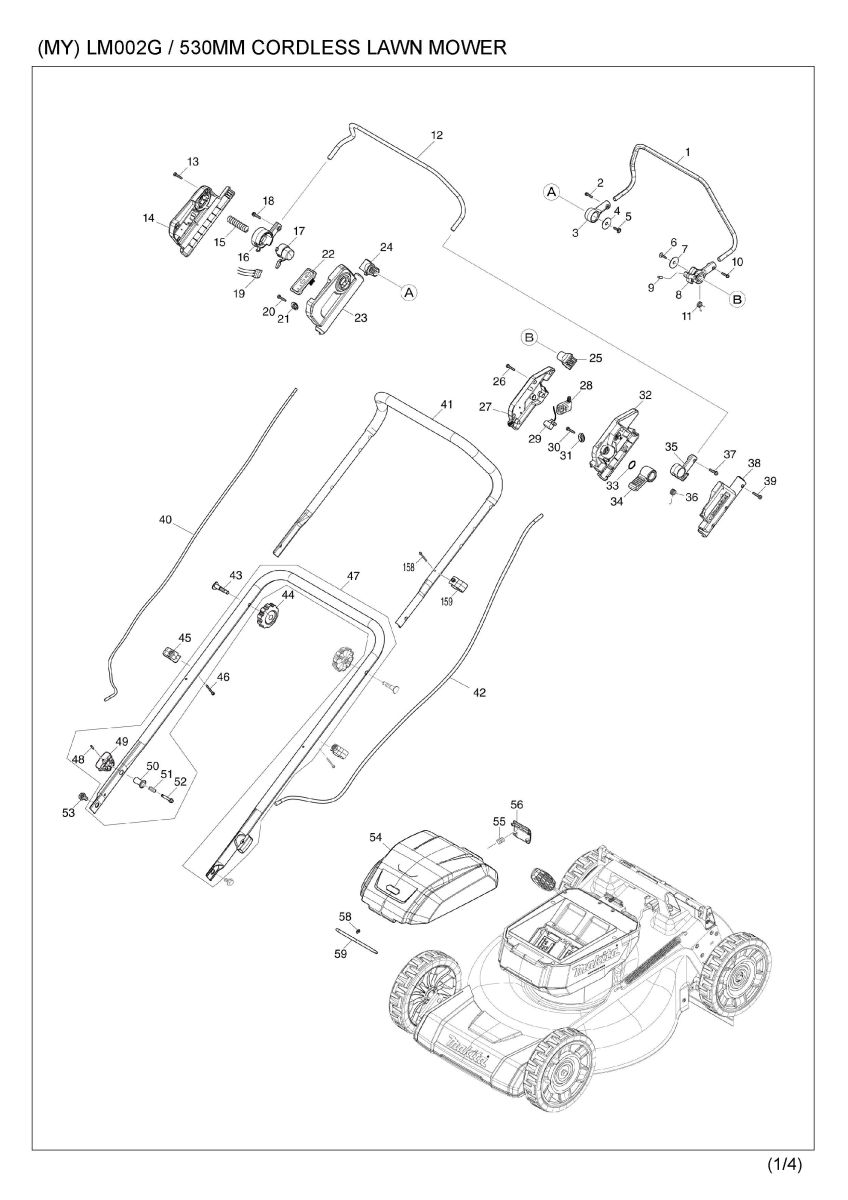

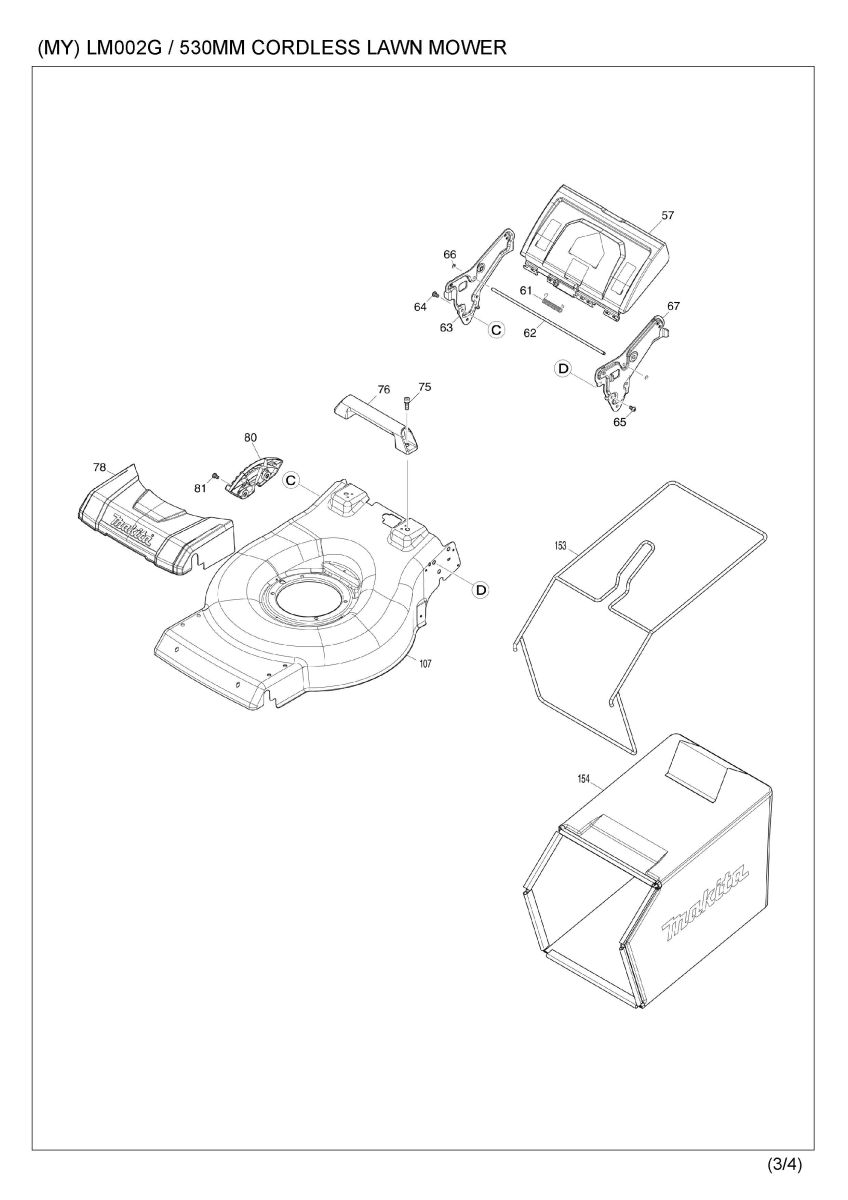

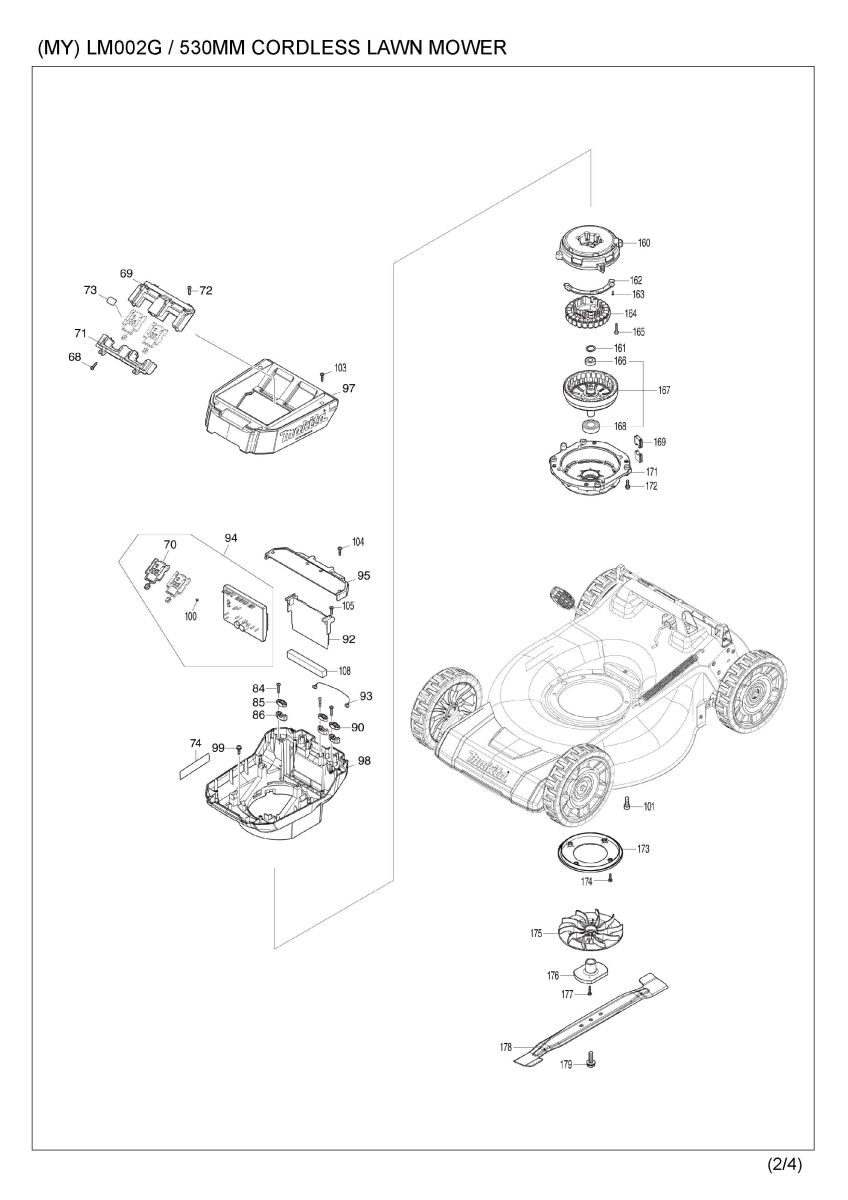

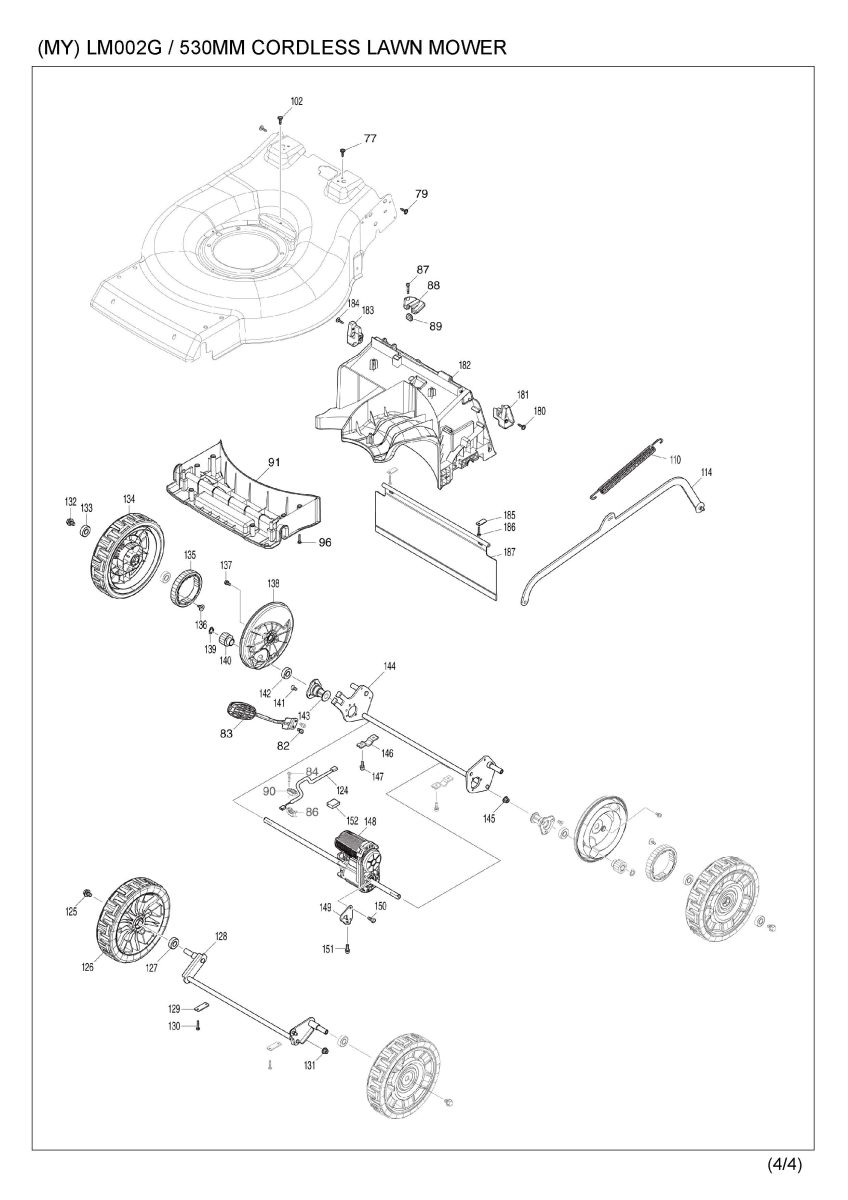

Part Diagram
Total: 196 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 327425-6 | DRIVING LEVER | 1 | |
| 2 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 3 | 459858-8 | DRIVING LEVER SUPPORT R | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| 4 | 253814-8 | FLAT WASHER 8 | 1 | |
| 5 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 6 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 7 | 253814-8 | FLAT WASHER 8 | 1 | |
| 8 | 413B10-4 | DRIVING LEVER SUPPORT L | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| 9 | 268225-4 | PIN 5 | 1 | |
| 10 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 11 | 232566-4 | TORSION SPRING 12 | 1 | |
| 12 | 327424-8 | SWITCH LEVER | 1 | |
| 13 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 14 | 183X93-7 | SWITCH BOX SET | 1 | |
| C10 | 8044A1-9 | INDICATION LABEL | 1 | |
| D10 | INC. 23 | |||
| 15 | 231227-3 | COMPRESSION SPRING 15 | 1 | |
| 16 | 459856-2 | SWITCH LEVER SUPPORT R | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| 17 | 459857-0 | LOCK OFF BUTTON | 1 | |
| 18 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 19 | 632T11-3 | SWITCH UNIT | 1 | |
| 20 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 21 | 687123-7 | STRAIN RELIEF | 1 | |
| 22 | 141M31-9 | SWITCH CIRCUIT COMPLETE | 1 | |
| C10 | 539258-9 | SWITCH PLATE ASS'Y | 1 | |
| C20 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 23 | 183X93-7 | SWITCH BOX SET | 1 | |
| C10 | 8044A1-9 | INDICATION LABEL | 1 | |
| D10 | INC. 14 | |||
| 24 | 413A98-8 | DRIVING LEVER HOLDER | 1 | |
| 25 | 413A98-8 | DRIVING LEVER HOLDER | 1 | |
| 26 | 266424-2 | TAPPING SCREW 4X20 | 5 | |
| 27 | 183U35-3 | LEVER BOX SET | 1 | |
| D10 | INC. 38 | |||
| 28 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 29 | 620J45-8 | DIAL CIRCUIT | 1 | |
| 30 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 31 | 687123-7 | STRAIN RELIEF | 1 | |
| 32 | 413A95-4 | LEVER BOX C | 1 | |
| 33 | 213A12-2 | O-RING 18 | 1 | |
| 34 | 413B01-5 | SPEED LEVER | 1 | |
| 35 | 459863-5 | SWITCH LEVER SUPPORT L | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| 36 | 232575-3 | TORSION SPRING 12 | 1 | |
| 37 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 38 | 183U35-3 | LEVER BOX SET | 1 | |
| D10 | INC. 27 | |||
| 39 | 266424-2 | TAPPING SCREW 4X20 | 5 | |
| 40 | 699215-0 | POWER SUPPLY CORD UNIT | 1 | |
| 41 | 327871-3 | HANDLE UPPER | 1 | |
| 42 | 699216-8 | POWER SUPPLY CORD UNIT | 1 | |
| 43 | 265C08-1 | FLAT HEAD BOLT M8X50 | 2 | |
| 44 | 265C06-5 | THUMB NUT M8 | 2 | |
| 45 | 413L52-8 | CLAMP | 2 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| 46 | 911168-6 | PAN HEAD SCREW M4X40 | 2 | |
| 47 | 122D38-0 | HANDLE LOWER ASSEMBLY | 1 | |
| D10 | INC. 48-52 | |||
| 48 | 258004-8 | SPRING PIN 2.5-16 | 2 | |
| 49 | 413943-1 | KNOB | 2 | |
| 50 | 327A66-4 | LOCK HOLDER | 2 | |
| 51 | 234121-8 | COMPRESSION SPRING 8 | 2 | |
| 52 | 327A65-6 | LOCK PIN | 2 | |
| 53 | 265C07-3 | HEX. BOLT M8 | 2 | |
| 54 | 136880-9 | BATTERY COVER ASS'Y | 1 | |
| C10 | 8046H9-4 | INDICATION LABEL | 1 | |
| C20 | 8032A7-2 | XGT LOGO LABEL | 1 | |
| 55 | 231037-8 | COMPRESSION SPRING 7 | 1 | |
| 56 | 459852-0 | LOCK LEVER | 1 | |
| 57 | 141M22-0 | REAR FLAP COMPLETE | 1 | |
| C10 | 8047H4-0 | CAUTION LABEL | 1 | |
| 58 | 961018-5 | STOP RING E-5 | 1 | |
| 59 | 327536-7 | ROD 6 | 1 | |
| 61 | 232721-8 | TORSION SPRING 8 | 1 | |
| 62 | 327A64-8 | ROD 6 | 1 | |
| 63 | 347A56-1 | HANDLE BRACKET R | 1 | |
| 64 | 265B20-5 | HEX.SOCKET BUTTON HEAD BOLT M8 | 3 | |
| 65 | 265B20-5 | HEX.SOCKET BUTTON HEAD BOLT M8 | 3 | |
| 66 | 961018-5 | STOP RING E-5 | 2 | |
| 67 | 347A55-3 | HANDLE BRACKET L | 1 | |
| 68 | 266424-2 | TAPPING SCREW 4X20 | 3 | |
| 69 | 183X12-3 | TERMINAL HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 71 | |||
| 70 | 632T08-2 | TERMINAL UNIT | 2 | |
| 71 | 183X12-3 | TERMINAL HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 69 | |||
| 72 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 73 | 8582C8-9 | LM002G SERIAL NO. LABEL | 1 | |
| 74 | 8582C2-1 | LM002G NAME PLATE | 1 | |
| 75 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 2 | |
| 76 | 413L42-1 | REAR GRIP | 1 | |
| 77 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 2 | |
| 78 | 413L33-2 | FRONT COVER | 1 | |
| 79 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 7 | |
| 80 | 413L43-9 | HEIGHT ADJUST PLATE | 1 | |
| 81 | 265B20-5 | HEX.SOCKET BUTTON HEAD BOLT M8 | 2 | |
| 82 | 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 2 | |
| 83 | 162B98-8 | HEIGHT ADJUST LEVER COMPLETE | 1 | |
| 84 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 85 | 687123-7 | STRAIN RELIEF | 2 | |
| 86 | 687051-6 | STRAIN RELIEF | 3 | |
| 87 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 88 | 413L50-2 | LEAD COVER | 1 | |
| 89 | 422526-6 | GROMMET | 1 | |
| 90 | 687124-5 | STRAIN RELIEF | 1 | |
| 91 | 413L35-8 | DECK UNDER COVER F | 1 | |
| 92 | 413L30-8 | INNER PLATE | 1 | |
| 93 | 620J46-6 | LED CIRCUIT | 1 | |
| 94 | 539252-1 | CONTROLLER ASS'Y | 1 | |
| D10 | INC. 70, 100 | |||
| 95 | 141M28-8 | COWLING COVER COMPLETE | 1 | |
| 96 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 97 | 413L22-7 | COWLING UPPER | 1 | |
| 98 | 413L21-9 | COWLING LOWER | 1 | |
| 99 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 100 | 652031-1 | PAN HEAD SCREW M3X6 | 4 | |
| 101 | 922441-9 | HEX. SOCKET HEAD BOLT M8X25 | 4 | |
| 102 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 103 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 104 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 105 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 107 | 141S44-6 | DECK COMPLETE | 1 | |
| 108 | 422956-1 | SPONGE | 1 | |
| 110 | 232628-8 | TENSION SPRING 16 | 1 | |
| 114 | 347A58-7 | CONNECTING ROD | 1 | |
| 124 | 699213-4 | POWER SUPPLY CORD UNIT | 1 | |
| 125 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 2 | |
| 126 | 141M25-4 | TIRE 230 COMPLETE | 2 | |
| 127 | 210163-6 | BALL BEARING 6001DDW | 2 | |
| 128 | 162C00-7 | FRONT SHAFT | 1 | |
| 129 | 347869-4 | PLATE | 2 | |
| 130 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 131 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 132 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 2 | |
| 133 | 210163-6 | BALL BEARING 6001DDW | 4 | |
| 134 | 141M26-2 | TIRE 230 COMPLETE | 2 | |
| 135 | 227913-2 | SPUR GEAR 49 | 2 | |
| 136 | 265B00-1 | TAPPING SCREW FLANGE 4X12 | 4 | |
| 137 | 911213-7 | PAN HEAD SCREW M5X12 | 4 | |
| 138 | 413L40-5 | WHEEL CAP | 2 | |
| 139 | 961052-5 | RETAINING RING (EXT) S-12 | 2 | |
| 140 | 227A00-3 | SPUR GEAR 12 | 2 | |
| 141 | 251951-2 | HEX. SOCKET C.S.H. SCREW M5X10 | 6 | |
| 142 | 210163-6 | BALL BEARING 6001DDW | 2 | |
| 143 | 313390-5 | REAR SHAFT HOLDER | 2 | |
| 144 | 162C02-3 | REAR SHAFT | 1 | |
| 145 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 146 | 347865-2 | CLAMP 19 | 2 | |
| 147 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 4 | |
| 148 | 122E54-8 | DRIVE UNIT | 1 | |
| 149 | 347A59-5 | BRACKET | 1 | |
| 150 | 266388-0 | TAPPING SCREW 5X16 | 2 | |
| 151 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 1 | |
| 152 | 683A20-1 | POLYOLEFIN TUBE | 1 | |
| 153 | 162C45-5 | GRASS CATCHER BRACKET | 1 | |
| 154 | 162C13-8 | GRASS CATCHER | 1 | |
| 158 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | |
| 159 | 413944-9 | CLAMP | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| 160 | 141M30-1 | STATOR BASE COMPLETE | 1 | |
| 161 | 253455-0 | WAVE WASHER 19 | 1 | |
| 162 | 620J44-0 | CONTROLLER B | 1 | |
| 163 | 265C89-5 | FLAT HEAD SCREW M3X10 | 3 | |
| 164 | 629B84-7 | STATOR | 1 | |
| 165 | 911148-2 | PAN HEAD SCREW M4X25 | 6 | |
| 166 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 167 | 519785-2 | ROTOR ASS'Y | 1 | |
| D10 | INC. 166,168 | |||
| 168 | 211332-2 | BALL BEARING 6004LLU | 1 | |
| 169 | 422955-3 | GROMMET | 2 | |
| 171 | 312D43-7 | BRACKET | 1 | |
| 172 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 173 | 413L53-6 | BAFFLE PLATE | 1 | |
| 174 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | |
| 175 | 240205-2 | FAN 170 | 1 | |
| 176 | 312D48-7 | BLADE SUPPORT 530 | 1 | |
| 177 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 178 | 191V96-5 | BLADE 530 SET | 1 | |
| 179 | 265A69-9 | HEX. BOLT M10X35 WITH WG | 1 | |
| 180 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 181 | 183X16-5 | GRASS GUARD SET | 1 | |
| D10 | INC. 183 | |||
| 182 | 413L37-4 | DECK UNDER COVER R | 1 | |
| C10 | 252329-2 | SQUARE NUT M5 | 5 | |
| 183 | 183X16-5 | GRASS GUARD SET | 1 | |
| D10 | INC. 181 | |||
| 184 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| A01 | 327589-6 | ROD 6 | 1 | |
| A02 | 413L55-2 | MULCHING PLUG 530 | 1 | |
| A03 | 413L57-8 | DISCHARGE CHUTE | 1 | |
| A04 | 782210-8 | SOCKET WRENCH 17 | 1 |
