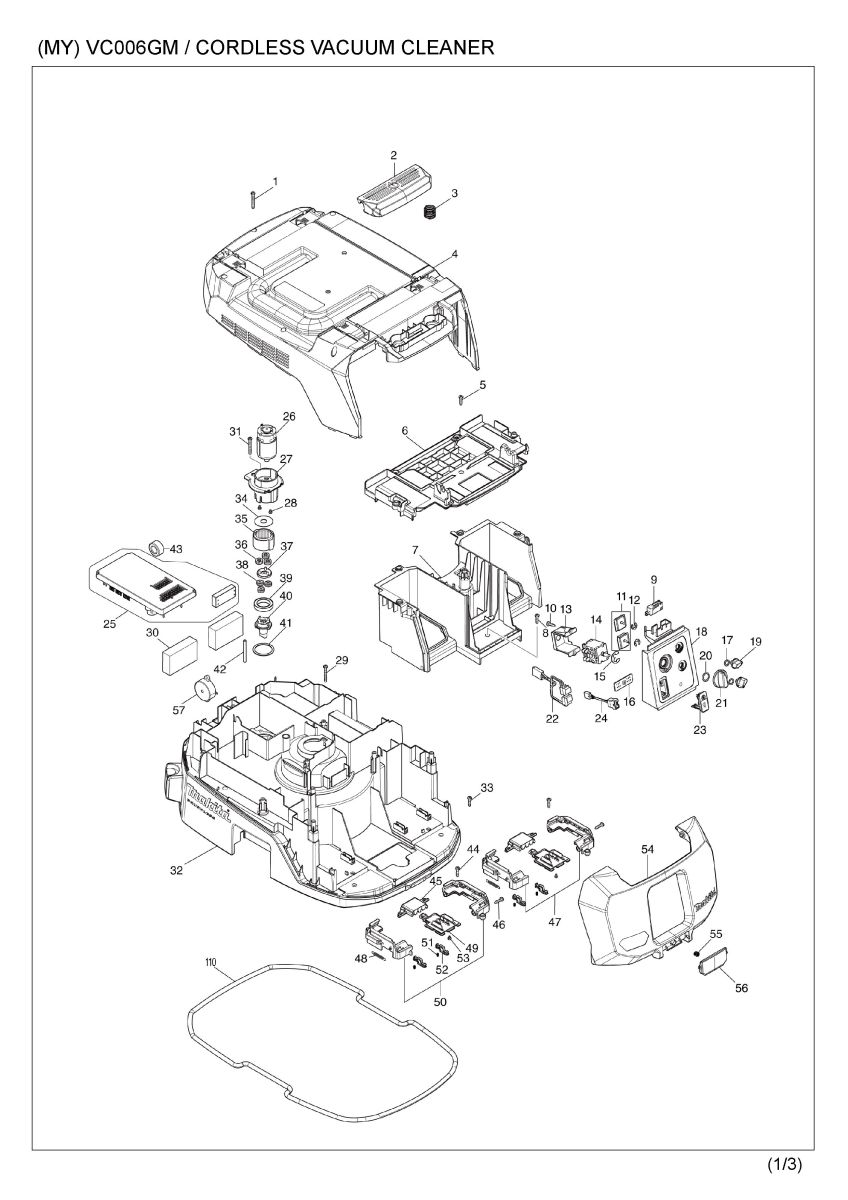

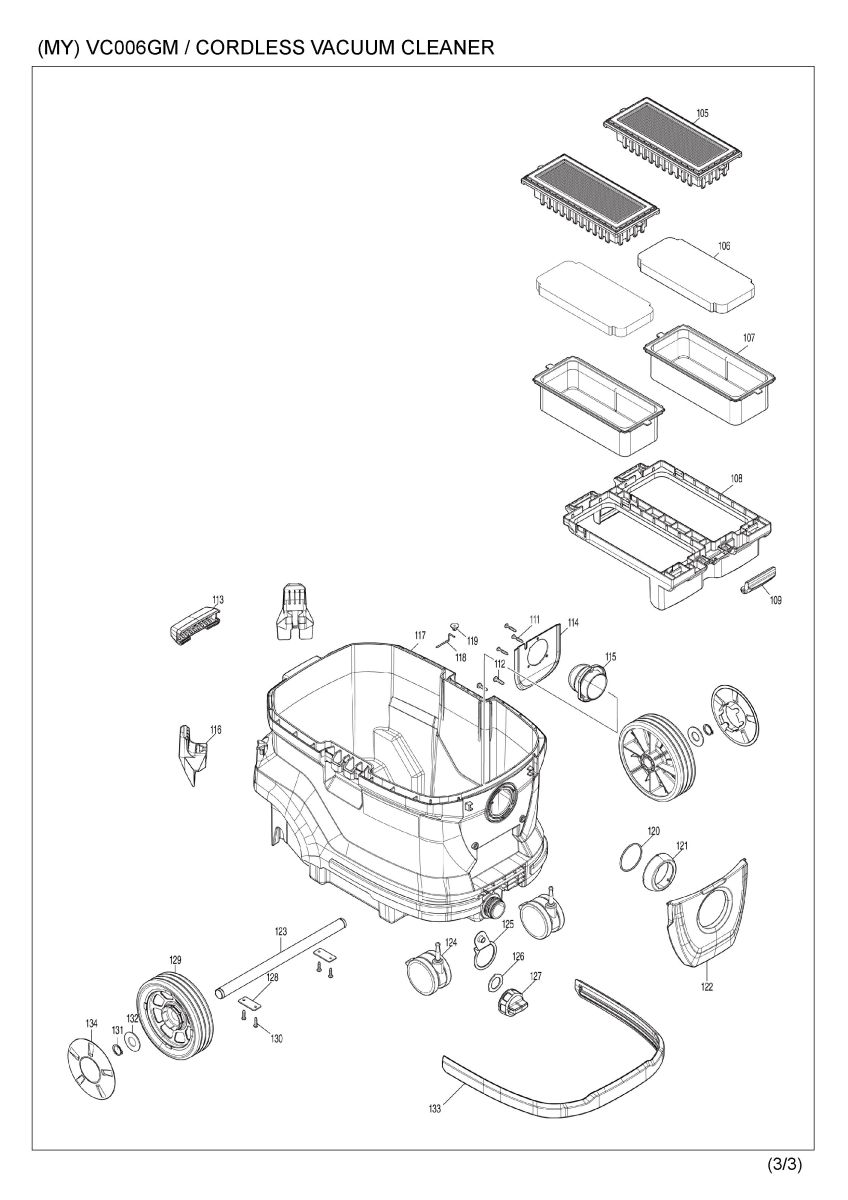

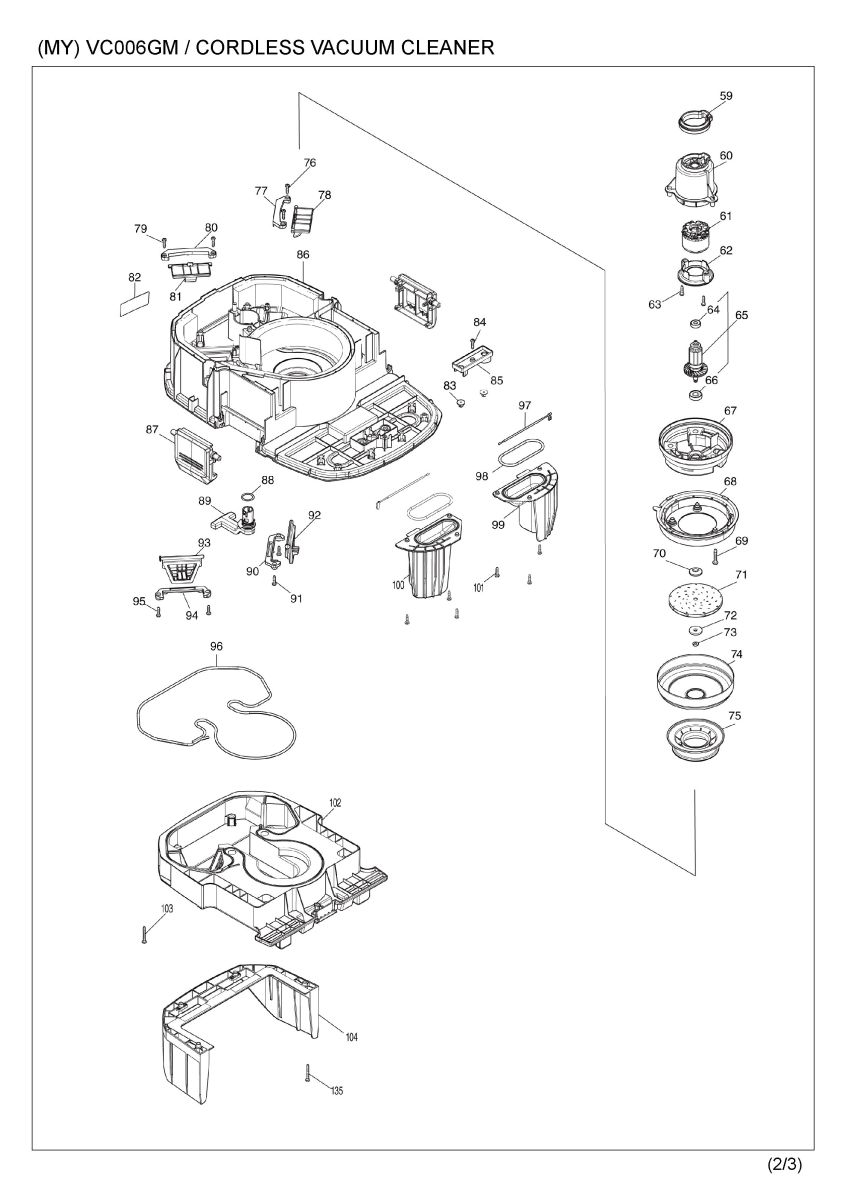

Part Diagram
Total: 159 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266351-3 | TAPPING SCREW 4X35 | 9 | |
| 2 | 413B26-9 | SWITCH BUTTON | 1 | |
| 3 | 234273-5 | COMPRESSION SPRING 20 | 2 | |
| 4 | 141L64-8 | COWLING COMPLETE | 1 | |
| C10 | 8059E1-0 | CAUTION LABEL | 1 | |
| C20 | 413K73-4 | GRIP | 1 | |
| C30 | 413K74-2 | LATCH | 4 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 6 | 413K69-5 | UPPER HOUSING | 1 | |
| 7 | 413K68-7 | LOWER HOUSING | 1 | |
| 8 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 9 | 651910-0 | SWITCH D2VW-01-3HS | 1 | |
| 10 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 11 | 620H02-4 | DIAL CIRCUIT | 1 | |
| 12 | 961013-5 | STOP RING E-7 | 2 | |
| 13 | 451343-7 | SWITCH HOLDER | 1 | |
| 14 | 650014-5 | SWITCH 1703.4803 | 1 | |
| 15 | 961062-2 | STOP RING E-12 | 1 | |
| 16 | 620F40-4 | INDICATION CIRCUIT | 1 | |
| 17 | 213054-0 | O RING 9 | 2 | |
| 18 | 141L60-6 | SWITCH BASE A COMPLETE | 1 | |
| C10 | 8056M2-6 | INDICATION LABEL | 1 | |
| 19 | 451344-5 | SWITCH DIAL | 2 | |
| 20 | 213176-6 | O RING 14 | 1 | |
| 21 | 451342-9 | SWITCH LEVER | 1 | |
| 22 | 638A19-1 | LEAD UNIT | 1 | |
| 23 | 141L63-0 | CAP COMPLETE | 1 | |
| 24 | 632L47-4 | CONNECTOR UNIT | 1 | |
| 25 | 620G99-7 | CONTROLLER | 1 | |
| 26 | 629B77-4 | DC MOTOR | 1 | |
| 27 | 454207-4 | GEAR CASE | 1 | |
| 28 | 911003-8 | PAN HEAD SCREW M3X6 | 2 | |
| 29 | 266351-3 | TAPPING SCREW 4X35 | 6 | |
| 30 | 422929-4 | REAR BLOCK FILTER | 2 | |
| 31 | 266351-3 | TAPPING SCREW 4X35 | 2 | |
| 32 | 141L58-3 | SEPARATOR COMPLETE | 1 | |
| 33 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 34 | 267067-3 | FLAT WASHER 12 | 1 | |
| 35 | 226285-2 | INTERNAL GEAR 42 | 1 | |
| 36 | 226283-6 | SPUR GEAR 15 | 3 | |
| 37 | 153228-0 | SPUR GEAR 9 COMPLETE | 1 | |
| 38 | 226284-4 | SPUR GEAR 15 | 3 | |
| 39 | 211375-4 | BALL BEARING 6805LLB | 1 | |
| 40 | 135554-9 | SPINDLE ASSEMBLY | 1 | |
| 41 | 267464-3 | FLAT WASHER 34 | 1 | |
| 42 | 684990-1 | VINYL TUBE | 1 | |
| 44 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 45 | 413B40-5 | TERMINAL COVER | 2 | |
| 46 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 47 | 183U06-0 | TERMINAL CASE SET | 1 | |
| 48 | 232722-6 | TENSION SPRING 4 | 4 | |
| 49 | 632T08-2 | TERMINAL UNIT | 2 | |
| 50 | 183W98-1 | TERMINAL CASE SET | 1 | |
| 51 | 232472-3 | COMPRESSION SPRING 2 | 4 | |
| 52 | 413B41-3 | LOCK LEVER | 4 | |
| 53 | 652031-1 | PAN HEAD SCREW M3X6 | 4 | |
| 54 | 183X55-5 | BATTERY COVER SET | 1 | |
| C10 | 8059D9-7 | XGT LOGO LABEL | 1 | |
| 55 | 231456-8 | COMPRESSION SPRING 7 | 1 | |
| 56 | 413K71-8 | BATTERY COVER HOOK | 1 | |
| 57 | 620J90-3 | BUZZER CIRCUIT | 1 | |
| 59 | 422926-0 | RUBBER RING | 1 | |
| 60 | 413K59-8 | MOTOR HOUSING | 1 | |
| 61 | 629B75-8 | STATOR | 1 | |
| 62 | 413K60-3 | BAFFLE PLATE | 1 | |
| 63 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 64 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 65 | 519777-1 | ROTOR ASS'Y | 1 | |
| D10 | INC. 64,66 | |||
| 66 | 211491-2 | BALL BEARING 609DDW | 1 | |
| 67 | 413K61-1 | BASE | 1 | |
| 68 | 413K62-9 | FAN BASE | 1 | |
| 69 | 266173-1 | TAPPING SCREW 5X30 | 3 | |
| 70 | 313062-2 | FLANGE | 1 | |
| 71 | 240178-9 | FAN 104 | 1 | |
| 72 | 253752-4 | FLAT WASHER 8 | 1 | |
| 73 | 252268-6 | HEX. NUT M6 | 1 | |
| 74 | 347A40-6 | FAN COVER | 1 | |
| 75 | 422793-3 | SUPPORT RING | 1 | |
| 76 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 77 | 413K91-2 | OUTER VALVE HOLDER | 1 | |
| 78 | 141L70-3 | OUTER VALVE COMPLETE | 1 | |
| 79 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 80 | 413K91-2 | OUTER VALVE HOLDER | 1 | |
| 81 | 141L70-3 | OUTER VALVE COMPLETE | 1 | |
| 82 | 8581G7-3 | VC006GM NAME PLATE | 1 | |
| 83 | 421468-1 | CORD SEAL | 2 | |
| 84 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 85 | 413K94-6 | SEAL STOPPER | 1 | |
| 86 | 141L68-0 | TANK COVER COMPLETE | 1 | |
| 87 | 413K83-1 | HOOK | 2 | |
| 88 | 213304-3 | O RING 20 | 1 | |
| 89 | 413K93-8 | CAM | 1 | |
| 90 | 413K92-0 | INNER VALVE HOLDER | 1 | |
| 91 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 92 | 141L71-1 | INNER VALVE COMPLETE | 1 | |
| 93 | 141L71-1 | INNER VALVE COMPLETE | 1 | |
| 94 | 413K92-0 | INNER VALVE HOLDER | 1 | |
| 95 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 96 | 422944-8 | SEAL RING A | 1 | |
| 97 | 638A41-8 | LEAD UNIT | 2 | |
| 98 | 422932-5 | SEAL RING B | 2 | |
| 99 | 413K75-0 | FRONT STAND L | 1 | |
| 100 | 413K76-8 | FRONT STAND R | 1 | |
| 101 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 102 | 413K84-9 | INNER COVER | 1 | |
| 103 | 266351-3 | TAPPING SCREW 4X35 | 4 | |
| 104 | 413K85-7 | REAR STAND | 1 | |
| 105 | 1911B6-0 | POWDER FILTER M SET | 2 | |
| 106 | 1911B4-4 | DAMPER SET | 2 | |
| 107 | 1911B5-2 | PRE FILTER SET | 2 | |
| 108 | 413K86-5 | TOP PLATE | 1 | |
| 109 | 127480-6 | LATCH ASSEMBLY | 1 | |
| 110 | 422943-0 | SEAL RING C | 1 | |
| 111 | 266374-1 | TAPPING SCREW 4X25 | 3 | |
| 112 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 113 | 422934-1 | BUMPER B | 1 | |
| 114 | 457853-2 | HOLDER PLATE | 1 | |
| 115 | 457852-4 | HOLDER | 1 | |
| 116 | 413K78-4 | HOSE HOOK | 2 | |
| 117 | 413K77-6 | TANK | 1 | |
| 118 | 649150-2 | EARTH LINE 120 | 1 | |
| 119 | 421468-1 | CORD SEAL | 1 | |
| 120 | 213655-4 | O RING 56 | 1 | |
| 121 | 457851-6 | INLET | 1 | |
| 122 | 413K81-5 | INLET COVER | 1 | |
| 123 | 327A50-9 | JOINT PIPE 20-343 | 1 | |
| 124 | 168547-1 | CASTER 75 | 2 | |
| 125 | 457862-1 | DRAIN BELT | 1 | |
| 126 | 422179-1 | SEAL | 1 | |
| 127 | 457861-3 | DRAIN CAP | 1 | |
| 128 | 347A42-2 | PLATE | 2 | |
| 129 | 413K79-2 | CASTER 170 | 2 | |
| 130 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 131 | 961060-6 | RETAINING RING S-20 | 2 | |
| 132 | 267299-2 | FLAT WASHER 20 | 2 | |
| 133 | 422933-3 | BUMPER A | 1 | |
| 134 | 413K80-7 | WHEEL CAP | 2 | |
| 135 | 266351-3 | TAPPING SCREW 4X35 | 4 | |
| A01 | 199455-5 | NOZZLE ASSEMBLY SET | 1 | |
| A03 | 195434-1 | HOSE COMPLETE 38-2.5 SET | 1 | |
| C10 | 417191-4 | CUFF LOCK | 1 | |
| C20 | 417306-3 | SLEEVE | 2 | |
| C30 | 417307-1 | FRONT CUFF | 1 | |
| C40 | 417586-1 | STOPPER | 2 | |
| A04 | 1910Y4-9 | FILTER BAG SET | 1 | |
| A05 | 192563-1 | STRAIGHT PIPE SET 565-38 | 1 | |
| A06 | 192562-3 | BENDING PIPE | 1 | |
| A07 | 410306-2 | CORNER NOZZLE | 1 | |
| A09 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| A10 | 422A02-6 | CAP | 1 | |
| A11 | 451350-0 | STOPPER | 1 | |
| A12 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| A14 | 418165-8 | JOINT 22-38 | 1 | |
| F08 | 1910N0-0 | FILTER FOR WATER SET | 1 | |
| F96 | 422A02-6 | CAP | 1 | |
| G09 | 1912G4-5 | TELESCOPIC PIPE COMPLETE SET | 1 | |
| G10 | 1912G5-3 | BENT PIPE COMPLETE SET | 1 | |
| G11 | 413R35-4 | STOPPER | 1 |
