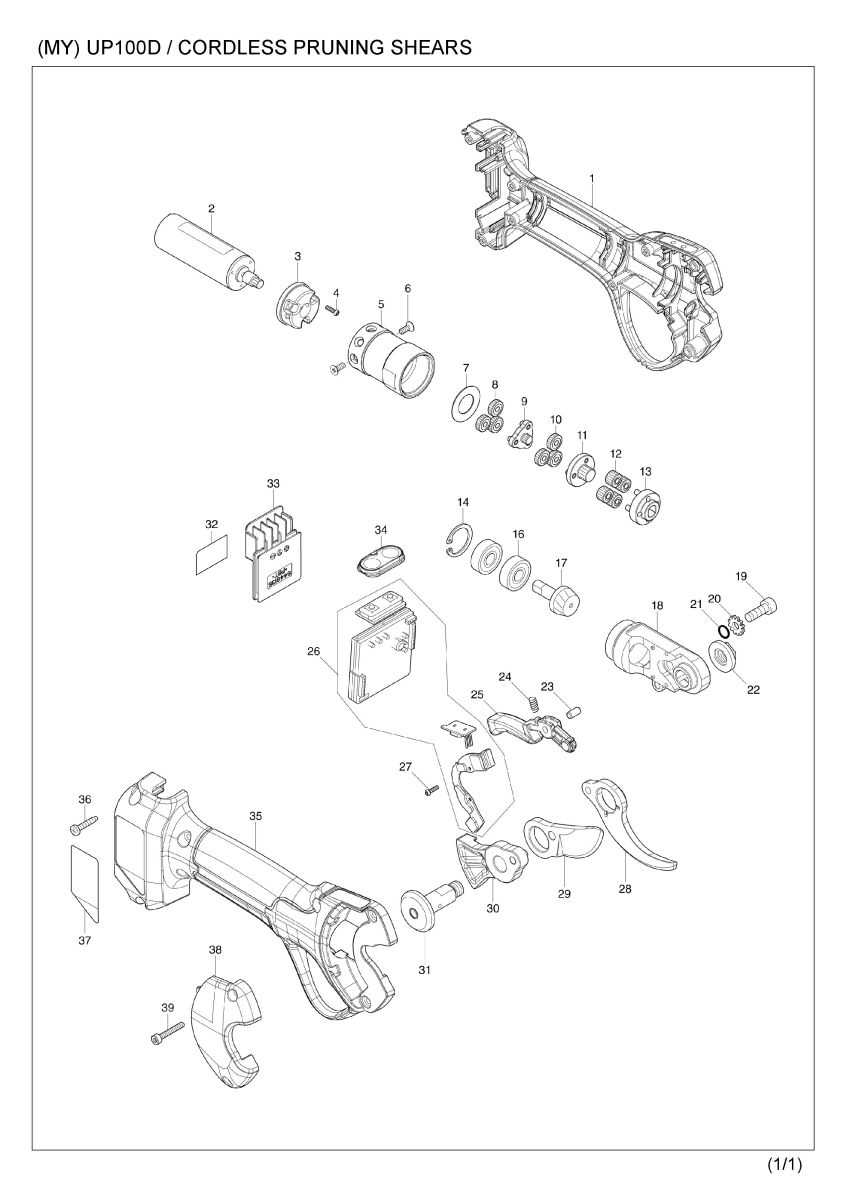

Part Diagram
Total: 53 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183Y33-1 | HOUSING SET | 1 | |
| C10 | 8065E6-9 | INDICATION LABEL | 1 | |
| C20 | 8065E7-7 | INDICATION LABEL | 1 | |
| D10 | INC. 35 | |||
| 2 | 629C07-1 | DC MOTOR | 1 | |
| 3 | 312D98-2 | MOTOR HOLDER | 1 | |
| 4 | 265D05-3 | PAN HEAD SCREW M2X8 | 3 | |
| 5 | 227A61-3 | INTERNAL GEAR 43 | 1 | |
| 6 | 912007-3 | C.H.SCREW M3X8 | 2 | |
| 7 | 253084-9 | FLAT WASHER 12 | 1 | |
| 8 | 227A64-7 | SPUR GEAR 17 | 3 | |
| 9 | 162C36-6 | SPUR GEAR 8 B COMPLETE | 1 | |
| 10 | 227A64-7 | SPUR GEAR 17 | 3 | |
| 11 | 162C37-4 | SPUR GEAR 13 COMPLETE | 1 | |
| 12 | 227A63-9 | SPUR GEAR 14 | 4 | |
| 13 | 162C31-6 | SUPPORTER COMPLETE | 1 | |
| 14 | 962059-4 | RETAINING RING (INT) R-19 | 1 | |
| 16 | 210017-7 | BALL BEARING 607DDW | 2 | |
| 17 | 227A60-5 | ZEROL BEVEL GEAR 9 | 1 | |
| 18 | 327B57-1 | GEAR HOUSING | 1 | |
| 19 | 922217-4 | HEX. SOCKET HEAD BOLT M5X14 | 1 | |
| 20 | 253578-4 | LOCK PLATE | 1 | |
| 21 | 213021-5 | O RING 5 | 1 | |
| 22 | 252321-8 | HEX. NUT M8 | 1 | |
| 23 | 256251-5 | PIN 4 | 1 | |
| 24 | 233033-2 | COMPRESSION SPRING 4 | 1 | |
| 25 | 162C32-4 | TRIGGER COMPLETE | 1 | |
| 26 | 620K67-4 | CONTROLLER | 1 | |
| 026-1 | 620N17-7 | CONTROLLER | 1 | |
| 27 | 265D05-3 | PAN HEAD SCREW M2X8 | 2 | |
| 28 | 1911W1-7 | SHEAR BLADE L SET | 1 | |
| 29 | 1911W2-5 | SHEAR BLADE U SET | 1 | |
| 30 | 162C33-2 | BLADE HOLDER COMPLETE | 1 | |
| 31 | 162C35-8 | SHOULDER SCREW M8 COMPLETE | 1 | |
| 32 | 8586G2-3 | UP100D SERIAL NO. LABEL | 1 | |
| 33 | 644813-5 | TERMINAL | 1 | |
| 34 | 162C34-0 | SWITCH PLATE COMPLETE | 1 | |
| C10 | 8065E5-1 | SWITCH LABEL | 1 | |
| 35 | 183Y33-1 | HOUSING SET | 1 | |
| C10 | 8065E6-9 | INDICATION LABEL | 1 | |
| C20 | 8065E7-7 | INDICATION LABEL | 1 | |
| D10 | INC. 1 | |||
| 36 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 6 | |
| 37 | 8586U1-3 | UP100D NAME PLATE | 1 | |
| 38 | 162C42-1 | HOUSING COVER COMPLETE | 1 | |
| C10 | 8065E8-5 | CAUTION LABEL | 1 | |
| 39 | 265633-0 | HEX SOCKET HEAD BOLT M3X20 | 2 | |
| A01 | 782212-4 | SOCKET WRENCH 13 | 1 | |
| A02 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A03 | 783208-8 | HEX. WRENCH 2.5 | 1 | |
| A04 | 162C23-5 | HOLSTER | 1 | |
| A05 | 1912E4-1 | DRESSER STONE SET | 1 | |
| A06 | 182470-6 | OIL SUPPLY | 1 |
