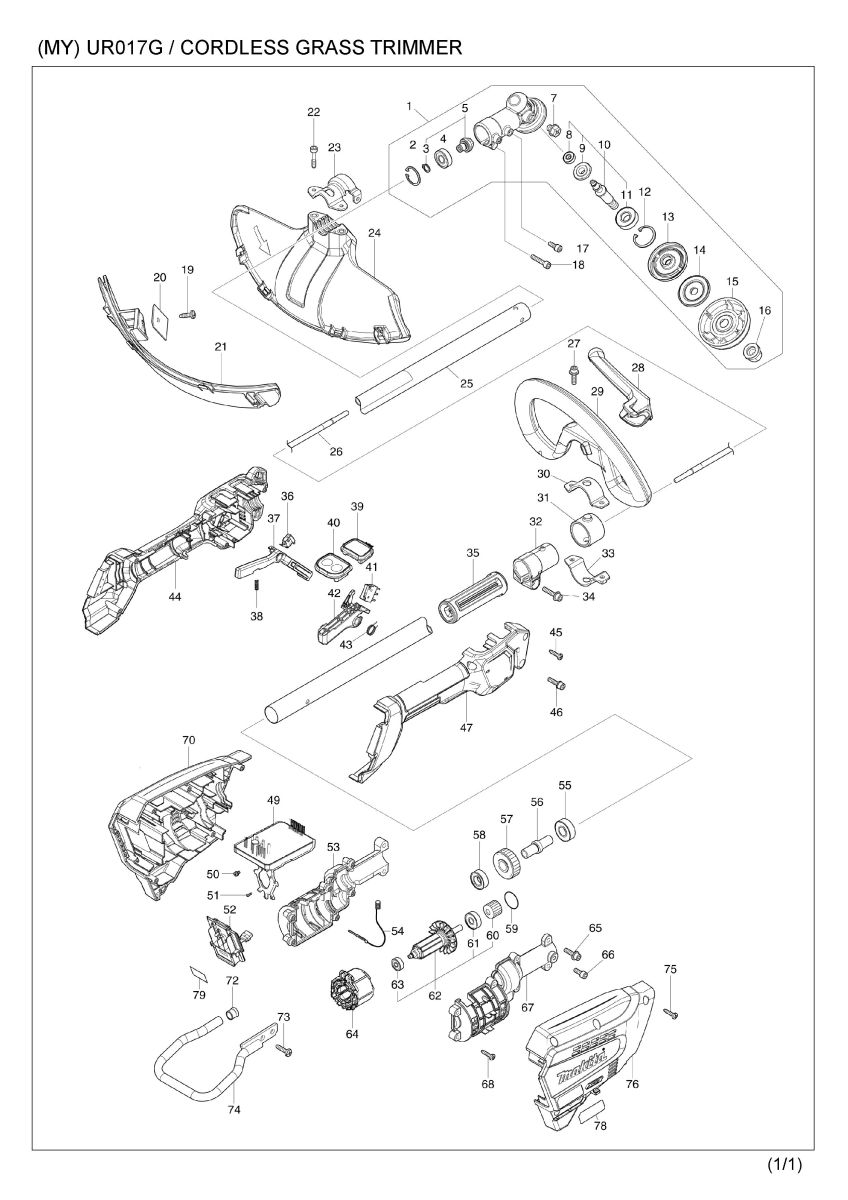

Part Diagram
Total: 100 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 126840-9 | GEAR CASE ASSEMBLY G | 1 | |
| D10 | INC. 2,5,7,10,12-16 | |||
| 2 | 259072-4 | RETAINING RING (INT)R-24 | 1 | |
| 3 | 259071-6 | RETAINING RING (EXT) S-9 | 1 | |
| 4 | 210157-1 | BALL BEARING 609ZZ | 1 | |
| 5 | 136949-9 | SPIRAL BEVEL GEAR 14 ASSEMBLY | 1 | |
| D10 | INC. 3,4 | |||
| 7 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | |
| 8 | 210180-6 | BALL BEARING 696ZZ | 1 | |
| 9 | 226184-8 | SPIRAL BEVEL GEAR 19 | 1 | |
| 10 | 136973-2 | CUTTER SHAFT G ASSEMBLY | 1 | |
| D10 | INC. 8,9,11 | |||
| 11 | 211138-8 | BALL BEARING 6001LLU | 1 | |
| 12 | 257456-0 | RETAINING RING (INT)R-28 | 1 | |
| 13 | 140A87-7 | RECEIVE WASHER COMPLETE | 1 | |
| 14 | 347766-4 | CLAMP WASHER US | 1 | |
| 15 | 413201-5 | CUP US | 1 | |
| 16 | 252236-9 | HEX. LOCK NUT M10-17 | 1 | |
| 17 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 2 | |
| 18 | 922242-5 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 19 | 266388-0 | TAPPING SCREW 5X16 | 1 | |
| 20 | 347115-5 | CUTTER | 1 | |
| 21 | 140X35-4 | PROTECTOR U EXT. 300-330 COMP | 1 | |
| 22 | 251513-6 | H.S.H.BOLT M5X25 | 2 | |
| 23 | 347107-4 | PROTECTOR CLAMP 24 | 1 | |
| 24 | 412969-0 | PROTECTOR U 330 | 1 | |
| 25 | 141R34-3 | SHAFT PIPE COMPLETE A | 1 | |
| C10 | 819312-8 | MAKITA LOGO LABEL | 1 | |
| C20 | 8040V7-0 | CAUTION LABEL | 1 | |
| 26 | 327B90-3 | SHAFT | 1 | |
| 27 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 28 | 144315-6 | BARRIER COMPLETE | 1 | |
| C10 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 29 | 457267-5 | LOOP HANDLE | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 1 | |
| 30 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 31 | 424942-8 | DAMPER | 1 | |
| 32 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 33 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 34 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 35 | 451601-1 | SPACER 24 | 1 | |
| 37 | 459759-0 | LOCK OFF LEVER | 1 | |
| 38 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 39 | 141D26-8 | INDICATION CIRCUIT COMPLETE G | 1 | |
| 40 | 140W06-5 | SWITCH CIRCUIT COMPLETE G | 1 | |
| C10 | 819J26-9 | SWITCH LABEL | 1 | |
| 41 | 632U35-5 | SWITCH UNIT | 1 | |
| 42 | 413P50-6 | SWITCH LEVER | 1 | |
| 43 | 233622-3 | TORSION SPRING 12 | 1 | |
| 44 | 183X78-3 | GRIP SET | 1 | |
| D10 | INC. 47 | |||
| 45 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 46 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 47 | 183X78-3 | GRIP SET | 1 | |
| D10 | INC. 44 | |||
| 49 | 620L54-9 | CONTROLLER | 1 | |
| 50 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 51 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 52 | 632P76-1 | TERMINAL UNIT | 1 | |
| 53 | 183X80-6 | MOTOR HOUSING SET | 1 | |
| C10 | 931202-6 | HEX. NUT M5 | 2 | |
| D10 | INC. 67 | |||
| 55 | 210244-6 | BALL BEARING 6001ZZ | 1 | |
| 56 | 327719-9 | SPINDLE HUB | 1 | |
| 57 | 227848-7 | HELICAL GEAR 33 | 1 | |
| 58 | 210243-8 | BALL BEARING 6901ZZ | 1 | |
| 59 | 213925-1 | O-RING 21 | 1 | |
| 60 | 227A68-9 | HELICAL GEAR 16 | 1 | |
| 61 | 210236-5 | BALL BEARING 627ZZ | 1 | |
| 62 | 519814-1 | ROTOR ASS'Y | 1 | |
| D10 | INC. 60,61,63 | |||
| 63 | 210235-7 | BALL BEARING 625ZZ | 1 | |
| 64 | 629340-3 | STATOR | 1 | |
| 65 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 66 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 67 | 183X80-6 | MOTOR HOUSING SET | 1 | |
| C10 | 931202-6 | HEX. NUT M5 | 2 | |
| D10 | INC. 53 | |||
| 68 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 70 | 183Y16-1 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 8012U4-2 | XGT LOGO LABEL | 1 | |
| D10 | INC. 76 | |||
| 72 | 422230-7 | CAP | 1 | |
| 73 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 74 | 347B26-6 | BATTERY GUARD | 1 | |
| 75 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 76 | 183Y16-1 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| C20 | 8012U4-2 | XGT LOGO LABEL | 1 | |
| D10 | INC. 70 | |||
| 78 | 8587W6-3 | UR017G NAME PLATE | 1 | |
| 79 | 8587X0-2 | UR017G SERIAL NO. LABEL | 1 | |
| A01 | 122D94-0 | BAND ASSEMBLY | 1 | |
| A02 | 198383-1 | PLASTIC BLADE 255 SET ME | 1 | |
| A03 | 783013-3 | BOX DRIVER 16-17 | 1 | |
| A04 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A05 | 831304-7 | ACCESSORY BAG | 1 | |
| F02 | 1911X4-8 | PROTECTOR U 330 SET | 1 | |
| F21 | 199450-5 | GREASE VESSEL SET | 1 |
