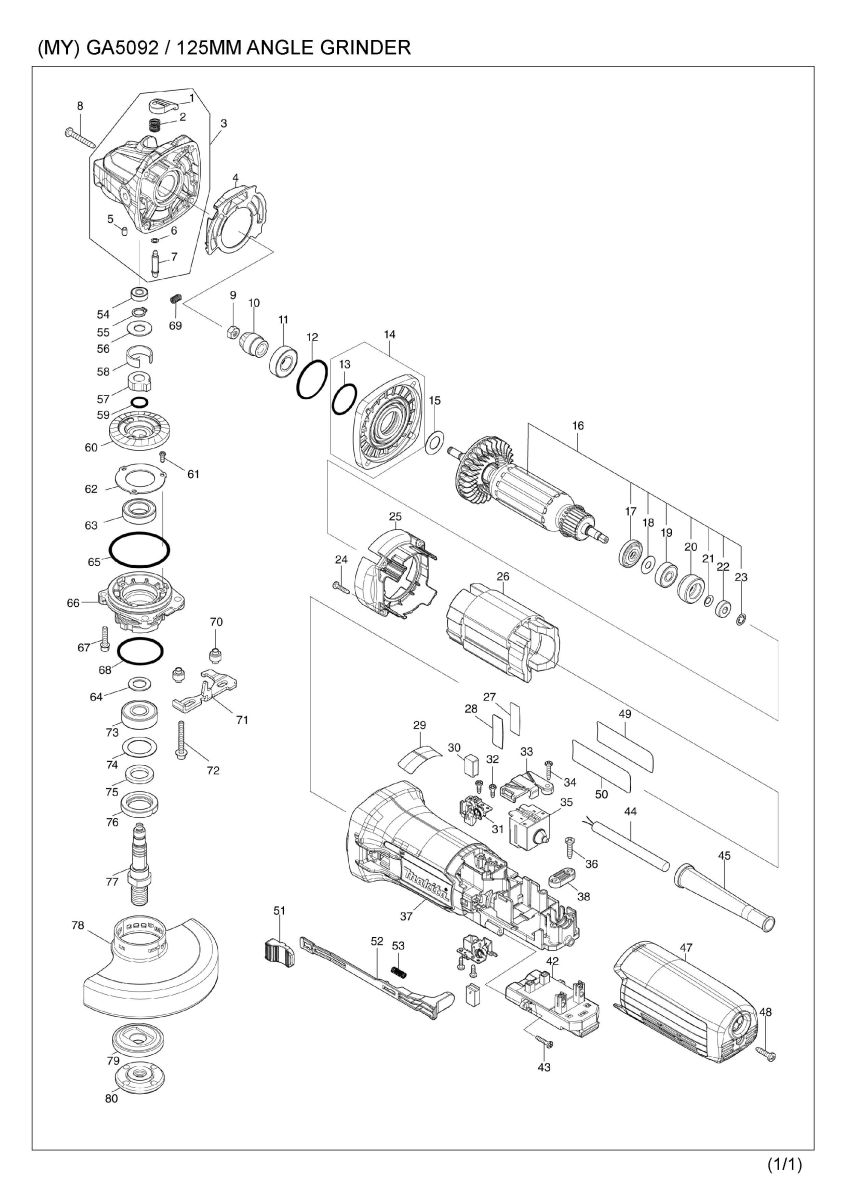

Part Diagram
Total: 96 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 453369-5 | PIN CAP | 1 | |
| 002 | 234057-1 | COMPRESSION SPRING 8 | 1 | |
| 003 | 136770-6 | GEAR HOUSING ASS'Y | 1 | |
| D10 | INC.1,2,5-7 | |||
| 004 | 413C06-1 | DIFFUSER | 1 | |
| 005 | 263002-9 | RUBBER PIN 4 | 1 | |
| 006 | 213032-0 | O RING 4 | 1 | |
| 007 | 256535-1 | SHOULDER PIN 6 | 1 | |
| 008 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 009 | 252186-8 | HEX. NUT M6 | 1 | |
| 010 | 227916-6 | SPIRAL BEVEL GEAR 11 | 1 | |
| 011 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 012 | 422812-5 | RUBBER PLATE | 1 | |
| 013 | 213693-6 | O-RING 27.5 | 1 | |
| 014 | 136771-4 | GEAR HOUSING COVER ASS'Y | 1 | |
| D10 | INC. 13 | |||
| 015 | 253084-9 | FLAT WASHER 12 | 1 | |
| 016 | 511A49-6 | ARMATURE ASS'Y 240V | 1 | |
| D10 | INC. 17-23 | |||
| 017 | 681656-4 | INSULATION WASHER | 1 | |
| 018 | 253823-7 | FLAT WASHER 7 | 1 | |
| 019 | 210027-4 | BALL BEARING 627DDW | 1 | |
| 020 | 422811-7 | LABYRINTH RUBBER RING 22 | 1 | |
| 021 | 267756-0 | WAVE WASHER 6 | 1 | |
| 022 | 688117-5 | MAGNET SLEEVE | 1 | |
| 023 | 259039-2 | SELF LOCK 6 | 1 | |
| 024 | 266429-2 | TAPPING SCREW 3X16 | 4 | |
| 025 | 413C07-9 | BAFFLE PLATE A | 1 | |
| 026 | 621968-3 | FIELD 220-240V | 1 | |
| 027 | 807G78-4 | CLEAR LABEL | 1 | |
| 028 | 858N57-7 | GA5092 SERIAL NO. LABEL | 1 | |
| 029 | 898443-6 | SJS2 MARK LABEL | 1 | |
| 030 | 1910M3-7 | CARBON BRUSH 264 SET | 1 | |
| 031 | 644011-1 | BRUSH HOLDER | 2 | |
| 032 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | |
| 033 | 413G29-3 | SWITCH COVER | 1 | |
| 034 | 266429-2 | TAPPING SCREW 3X16 | 1 | |
| 035 | 650028-4 | SWITCH FPC-2115T-0-02 | 1 | |
| 036 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 037 | 413C09-5 | MOTOR HOUSING A | 1 | |
| 038 | 687123-7 | STRAIN RELIEF | 1 | |
| 042 | 620H23-6 | CONTROLLER | 1 | |
| 043 | 266429-2 | TAPPING SCREW 3X16 | 2 | |
| 044 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 045 | 682116-9 | CORD GUARD | 1 | |
| 047 | 413C02-9 | REAR COVER C | 1 | |
| 048 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 049 | 8055D2-7 | CLEAR LABEL | 1 | |
| 050 | 858N53-5 | GA5092 NAME PLATE | 1 | |
| 051 | 413C10-0 | SWITCH KNOB A | 1 | |
| 052 | 413C03-7 | SWITCH LEVER | 1 | |
| 053 | 233121-5 | COMPRESSION SPRING 4 | 1 | |
| 054 | 210026-6 | BALL BEARING 696ZZ | 1 | |
| 055 | 961006-2 | RETAINING RING S-10 | 1 | |
| 056 | 253180-3 | FLAT WASHER 10 | 1 | |
| 057 | 327918-3 | JOINT SLEEVE | 1 | |
| 058 | 347911-1 | C TYPE PLATE | 1 | |
| 059 | 213122-9 | O RING 12 | 1 | |
| 060 | 227917-4 | SPIRAL BEVEL GEAR 38 | 1 | |
| 061 | 265199-0 | + PAN HEAD SCREW M3X8 | 3 | |
| 062 | 285048-5 | BEARING RETAINER 27-46 | 1 | |
| 063 | 210302-8 | BALL BEARING 6903ZZ | 1 | |
| 064 | 253744-3 | FLAT WASHER 12 | 1 | |
| 065 | 213641-5 | O RING 51 | 1 | |
| 066 | 312C10-6 | BEARING BOX A | 1 | |
| 067 | 266948-8 | HEX S. H. BOLT M4X20 WITH WR | 2 | |
| 068 | 213789-3 | O-RING 38 | 1 | |
| 068-1 | 262211-7 | RUBBER RING 37 | 1 | |
| 068-2 | 213789-3 | O-RING 38 | 1 | |
| 069 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 070 | 327322-6 | SLEEVE 4 | 2 | |
| 071 | 347909-8 | LEVER A | 1 | |
| 072 | 265C21-9 | H.S.H.BOLT M4X35(WITH WG) | 2 | |
| 073 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 074 | 267279-8 | FLAT WASHER 21 | 1 | |
| 075 | 443124-3 | FELT RING 17 | 1 | |
| 076 | 285854-8 | BEARING RETAINER 20-33 | 1 | |
| 077 | 327916-7 | SPINDLE | 1 | |
| 078 | 141L54-1 | WHEEL COVER 125 COMPLETE | 1 | |
| C10 | 8050A1-8 | CAUTION LABEL | 1 | |
| 078-1 | 141P46-4 | WHEEL COVER 125 COMPLETE | 1 | |
| C10 | 8050A1-8 | CAUTION LABEL | 1 | |
| 079 | 224490-5 | INNER FLANGE 14-45 | 1 | |
| 080 | 224485-8 | LOCK NUT 14-45 | 1 | |
| A02 | 199710-5 | CUTTING W.C.A. 125 SET | 1 | |
| A03 | 162258-0 | VIBRATION PROOF GRIP | 1 | |
| A04 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| F02 | 191V72-9 | DUST COVER ATTACHMENT SET | 1 | |
| F03 | 191W05-0 | 115/125MM DUST COVER SET | 1 | |
| C10 | 743129-6 | BRUSH A | 1 | |
| C20 | 743130-1 | BRUSH B | 1 | |
| F04 | 1910X5-0 | GRIP 35 SET | 1 | |
| F05 | 1910X6-8 | GRIP 35 SET | 1 | |
| F07 | 1910Y0-7 | WHEEL COVER 125C SET | 1 | |
| F09 | 192227-7 | SUPER FLANGE | 1 | |
| F11 | 194514-0 | VIBRATION PROOF GRIP SET | 1 |
