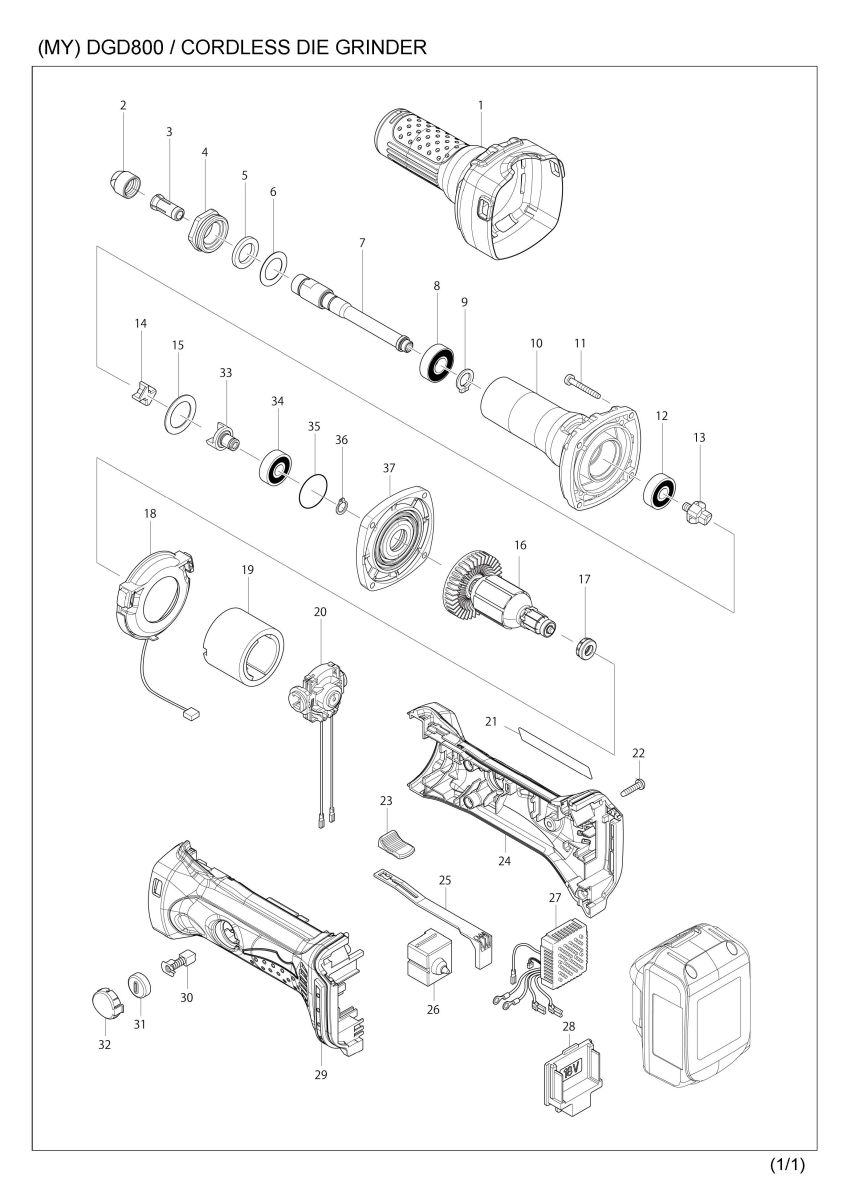

Part Diagram
Total: 43 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 424380-4 | INSULATION COVER | 1 | |
| 2 | 763668-0 | COLLET NUT | 1 | |
| 3 | 763670-3 | COLLET CONE 6 | 1 | |
| 4 | 317999-5 | BEARING RETAINER | 1 | |
| 5 | 443124-3 | FELT RING 17 | 1 | |
| 6 | 267329-9 | FLAT WASHER 18 | 1 | |
| 7 | 326010-2 | SPINDLE | 1 | |
| 8 | 210106-8 | BALL BEARING 6001LLB | 1 | |
| 9 | 961052-5 | RETAINING RING S-12 | 1 | |
| 10 | 318000-9 | BARREL | 1 | |
| 11 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 12 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 13 | 324639-8 | COUPLING | 1 | |
| 14 | 421942-9 | SPACER | 1 | |
| 15 | 267126-3 | FLAT WASHER 22 | 1 | |
| 16 | 619284-5 | ARMATURE | 1 | |
| 16 | D10 | INC. 17 | ||
| 17 | 421977-0 | RUBBER RING 13 | 1 | |
| 18 | 631714-6 | LED CIRCUIT | 1 | |
| 19 | 638627-2 | YOKE UNIT | 1 | |
| 20 | 638448-2 | ENDBELL COMPLETE | 1 | |
| 21 | 815P35-2 | DGD800 NAME PLATE | 1 | |
| 22 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 23 | 419566-3 | SWITCH KNOB | 1 | |
| 24 | 187839-9 | HOUSING SET | 1 | |
| 24 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 24 | D10 | INC. 29 | ||
| 25 | 419519-2 | SWITCH LEVER | 1 | |
| 26 | 650579-7 | SWITCH 1246.3223 | 1 | |
| 27 | 620243-4 | CONTROLLER | 1 | |
| 28 | 644808-8 | TERMINAL | 1 | |
| 29 | 187839-9 | HOUSING SET | 1 | |
| 29 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 29 | D10 | INC. 24 | ||
| 30 | 191971-3 | CARBON BRUSH CB-430 | 1 | |
| 31 | 643929-3 | BRUSH HOLDER CAP | 2 | |
| 32 | 419518-4 | HOLDER CAP COVER | 2 | |
| 33 | 326009-7 | COUPLING | 1 | |
| 34 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 35 | 213445-5 | O-RING 26 | 1 | |
| 36 | 961005-4 | RETAINING RING S-9 | 1 | |
| 37 | 317821-6 | GEAR HOUSING COVER | 1 | |
| A01 | 781039-9 | WRENCH 13 | 2 |
