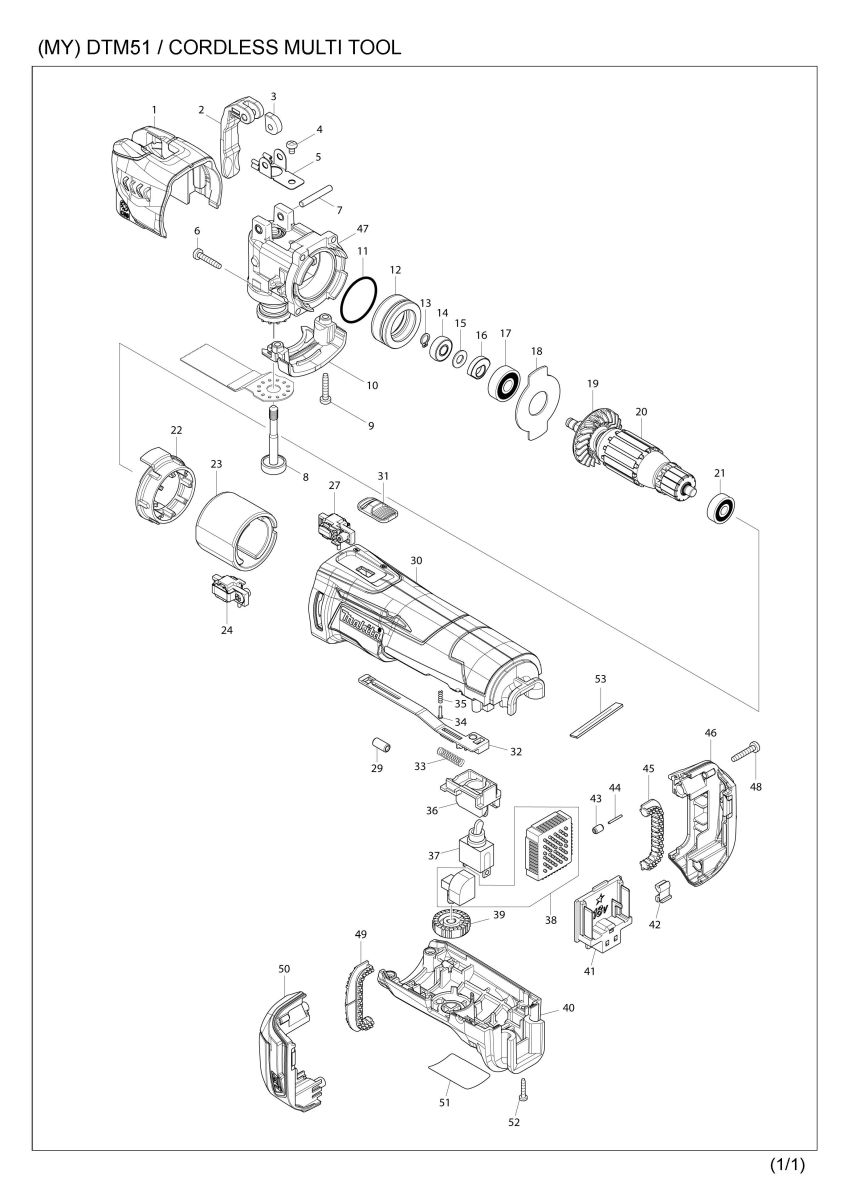

Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 455272-6 | UPPER HEAD COVER | 1 | |
| 2 | 319059-9 | LEVER | 1 | |
| 3 | 313268-2 | TURN BLOCK | 1 | |
| 4 | 911102-6 | PAN HEAD SCREW M4X6 | 1 | |
| 5 | 232282-8 | LEAF SPRING | 1 | |
| 6 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 7 | 268306-4 | PIN 5 | 1 | |
| 8 | 326409-1 | HOLDER BOLT | 1 | |
| 008-1 | 327177-9 | HOLDER BOLT | 1 | |
| 9 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 10 | 454635-3 | LOWER HEAD COVER | 1 | |
| 11 | 213343-3 | O RING 35 | 1 | |
| 12 | 326347-7 | BEARING BOX | 1 | |
| 13 | 961003-8 | RETAINING RING S-7 | 1 | |
| 14 | 211392-4 | SPHERE BEARING 706 | 1 | |
| 014-1 | 210164-4 | SPHERE BEARING 706 | 1 | |
| 014-1C | 210164-4 | SPHERE BEARING 706 | 1 | |
| 15 | 253133-2 | FLAT WASHER 7 | 1 | |
| 16 | 313245-4 | BALANCER | 1 | |
| 17 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 18 | 285857-2 | BEARING RETAINNER | 1 | |
| 19 | 240140-4 | FAN 46 | 1 | |
| 20 | 519338-7 | ARMATURE ASS'Y 18V | 1 | |
| 20 | D10 | INC. 19,21 | ||
| 21 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 22 | 455017-2 | BUFFLE PLATE | 1 | |
| 23 | 632B69-4 | YOKE UNIT | 1 | |
| 24 | 632B88-0 | BRUSH HOLDER COMPLETE | 1 | |
| 27 | 632B89-8 | BRUSH HOLDER COMPLETE | 1 | |
| 30 | 455013-0 | MOTOR HOUSING | 1 | |
| 31 | 455016-4 | SWITCH KNOB | 1 | |
| 32 | 455015-6 | SWITCH LEVER | 1 | |
| 33 | 234263-8 | COMPRESSION SPRING 5 | 1 | |
| 34 | 255058-6 | RIVET 2 | 1 | |
| 35 | 233002-3 | COMPRESSION SPRING 3 | 1 | |
| 36 | 455018-0 | SWITCH CASE | 1 | |
| 37 | 651423-1 | SWITCH | 1 | |
| 38 | 620270-1 | CONTROLLER | 1 | |
| 39 | 271617-8 | DIAL 28 | 1 | |
| 40 | 142553-4 | HANDLE COVER COMPLETE | 1 | |
| 40 | C10 | 263005-3 | RUBBER PIN 6 | 3 |
| 41 | 643852-2 | TERMINAL | 1 | |
| 42 | 424476-1 | CUSHION | 1 | |
| 43 | 263036-2 | RUBBER PIN 5 | 1 | |
| 44 | 268184-2 | PIN 1.5 | 1 | |
| 45 | 424473-7 | CUSHION RUBBER | 1 | |
| 46 | 187848-8 | BATTERY HOUSING SET | 1 | |
| 46 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 46 | D10 | INC. 50 | ||
| 047A | 142502-1 | CRANK HOUSING COMPLETE | 1 | |
| 047-1A | 143250-5 | CRANK HOUSING COMPLETE | 1 | |
| 047-1 | 143250-5 | CRANK HOUSING COMPLETE | 1 | |
| 48 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 49 | 424473-7 | CUSHION RUBBER | 1 | |
| 50 | 187848-8 | BATTERY HOUSING SET | 1 | |
| 50 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 50 | D10 | INC. 46 | ||
| 51 | 815M50-8 | DTM51 NAME PLATE | 1 | |
| 52 | 266429-2 | TAPPING SCREW 3X16 | 4 | |
| 53 | 423404-3 | SPONGE SHEET | 1 | |
| A01 | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02A | 194204-5 | BATTERY BL1830 SET | 2 | |
| A02-1A | 194204-5 | BATTERY BL1830 SET | 2 | |
| A02-1B | 196399-0 | BATTERY BL1840 SET | 2 | |
| A02-2A | 197600-6 | BATTERY BL1830B SET | 2 | |
| A02-2B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02-3A | 197600-6 | BATTERY BL1830B SET | 2 | |
| A02-3B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A03 | 450128-8 | BATTERY COVER | 1 | |
| A04 | 821608-5 | PLASTIC CARRYING CASE | 1 | |
| A04A | C10 | 162302-3 | LATCH | 2 |
| A05 | 196272-4 | ADAPTER A SET | 1 | |
| A05-1 | 196271-6 | ADAPTER A SET | 1 | |
| A06 | 313249-6 | ADAPTER C | 1 | |
| A07 | B-21325 | SEGMENT SAW BLADE 85 TMA006 | 1 | |
| A07-1 | B-64799 | STARLOCK SEGMENTSAW 85 TMA045 | 1 | |
| A08 | B-21353 | PLUNGE CUT SAW BLADE 28 TMA009 | 1 | |
| A08-1 | B-64814 | STARLOCK CUTSAW 32 TMA047 BIM | 1 | |
| A09 | B-21537 | SANDING PAD | 1 | |
| A09-1 | B-46202 | SANDING PAD | 1 | |
| A09-2 | B-65115 | STARLOCK SANDING PAD 93 TMA078 | 1 | |
| A10A | 142257-8 | TOOL BOX COMPLETE | 1 | |
| A10A | C10 | 454652-3 | LATCH | 1 |
| A10-1A | 143308-0 | TOOL BOX COMPLETE WITH LABEL | 1 | |
| A10-1A | C10 | 454652-3 | LATCH | 1 |
| A10-1B | 143308-0 | TOOL BOX COMPLETE WITH LABEL | 1 | |
| A10-1B | C10 | 454652-3 | LATCH | 1 |
