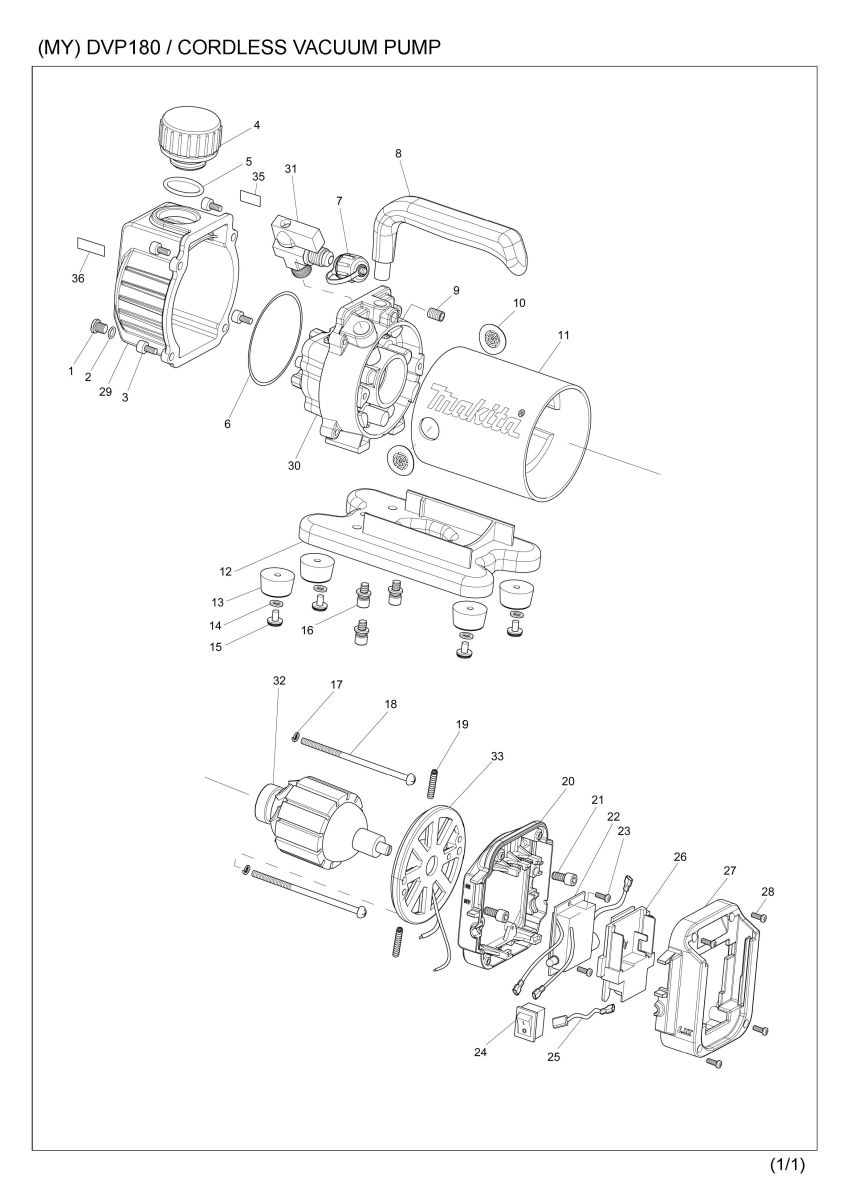

Part Diagram
Total: 46 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | AS000VP009 | DRAIN PLUG M8X12 | 1 | |
| 2 | AS000VP010 | O-RING 10X2.5 | 1 | |
| 3 | AS000VP011 | HEXAGON BOLT M5X16 | 4 | |
| 4 | AS000VP012 | OIL FILL/EXHAUST CAP | 1 | |
| 4 | D10 | INC. 5 | ||
| 5 | AS000VP013 | O-RING 26X2.2 | 1 | |
| 6 | AS000VP014 | O-RING 95X3.1 | 1 | |
| 7 | AS000VP017 | INLET PORT CAP (5/16") | 1 | |
| 8 | AS000VP018 | HANDLE | 1 | |
| 9 | AS000VP019 | HEXAGON BOLT M5X8 | 1 | |
| 10 | AS000VP020 | INLET PORT CAP | 2 | |
| 11 | AS00VP021M | MOTOR HOUSING | 1 | |
| 12 | AS000VP022 | BASE | 1 | |
| 13 | AS000VP023 | RUBBER BASE | 4 | |
| 14 | AS000VP024 | WASHER 4.5X12X1.0 | 4 | |
| 15 | AS000VP025 | TAPPING SCREW M4X1 | 4 | |
| 16 | AS000VP026 | HEXAGON BOLT (W/WAHSER) M5X16 | 3 | |
| 17 | AS000VP027 | SPRING WASHER M5 | 2 | |
| 18 | AS000VP028 | PAN HEAD SCREW M5X100 | 2 | |
| 19 | AS000VP029 | CARBON BRUSH SPRING | 2 | |
| 20 | AS000VP030 | BATTERY HOLDER (FRONT) | 1 | |
| 21 | AS000VP033 | HEXAGON BOLT M5X10 | 2 | |
| 021-1 | AS000VP066 | HEXAGON BOLT M5X12 | 2 | |
| 22 | AS000VP034 | CIRCUIT BOARD | 1 | |
| 23 | AS000VP035 | TAPPING SCREW M3X10 | 2 | |
| 24 | AS000VP036 | POWER SWITCH | 1 | |
| 25 | AS000VP037 | LEAD WIRE | 1 | |
| 26 | 643899-6 | TERMINAL | 1 | |
| 27 | AS00VP039K | BATTERY HOLDER (REAR) | 1 | |
| 28 | AS000VP035 | TAPPING SCREW M3X10 | 4 | |
| 29 | AS0VP008MK | OIL TANK ASS'Y | 1 | |
| 30 | AS00VP015M | PUMP ASS'Y | 1 | |
| 31 | AS000VP016 | INTAKE SHUT-OFF VALVE | 1 | |
| 32 | AS000VP031 | ARMATURE | 1 | |
| 33 | AS000VP032 | MOTOR COVER (REAR) | 1 | |
| 33 | C10 | AS000VP071 | WIRE KIT AND BRUSH | 1 |
| 35 | AS00SS0306 | CAUTION LABEL (OIL) | 1 | |
| 36 | AS00SS0305 | CAUTION LABEL (HEAT) | 1 | |
| A02 | AS0Y06110K | ADAPTER | 1 | |
| A03 | AS00XP808M | VACUUM GAUGE | 1 | |
| A04 | AS000AI158 | HOSE PACKING (6 PCS) | 1 | |
| F01 | AS00VP050M | VACUUM PUMP OIL | 1 | |
| F02 | AS0VP051MK | INTAKE SHUT-OFF VALVE WITH | 1 | |
| F03 | AS0AI154MK | VACUUM HOSE | 1 | |
| F04 | AS0VP007MK | ALUMINUM CASE | 1 | |
| F05 | AS000VP042 | BELT | 1 |
