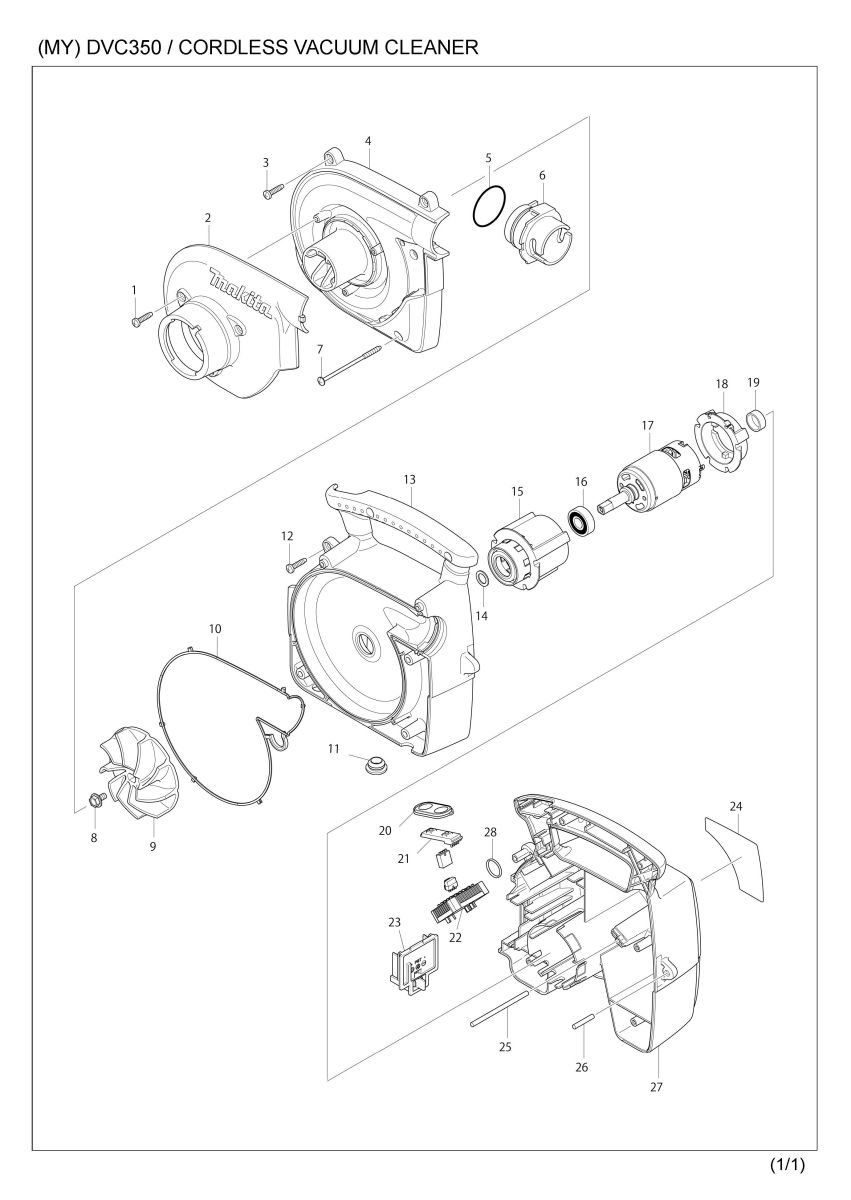

Part Diagram
Total: 36 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 2 | 140642-9 | FRONT COVER COMPLETE | 1 | |
| 3 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 4 | 451989-9 | FAN COVER | 1 | |
| 5 | 213508-7 | O RING 38 | 1 | |
| 6 | 452067-8 | JOINT | 1 | |
| 7 | 266049-2 | TAPPING SCREW 4X75 | 3 | |
| 8 | 266614-7 | HEX. FLANGE HEAD BOLT M5X10 | 1 | |
| 9 | 240122-6 | FAN 86 | 1 | |
| 10 | 424332-5 | SEAL RING | 1 | |
| 11 | 286238-3 | CAP 19 | 4 | |
| 12 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 13 | 187008-2 | MOTOR HOUSING SET | 1 | |
| 13 | D10 | INC. 10,27 | ||
| 14 | 267047-9 | FLAT WASHER 10 | 1 | |
| 15 | 424330-9 | MOTOR RUBBER RING A | 1 | |
| 16 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 17 | 629888-5 | DC MOTOR | 1 | |
| 18 | 424331-7 | MOTOR RUBBER RING B | 1 | |
| 19 | 421940-3 | CAP | 1 | |
| 20 | 140463-9 | SWITCH PLATE COMPLETE | 1 | |
| 21 | 631973-2 | SWITCH UNIT | 1 | |
| 22 | 620036-9 | CONTROLLER | 1 | |
| 23 | 643852-2 | TERMINAL | 1 | |
| 24 | 815X14-8 | DVC350 NAME PLATE | 1 | |
| 25 | 268092-7 | PIN 4 | 1 | |
| 26 | 256206-0 | PIN 4 | 1 | |
| 27 | 187008-2 | MOTOR HOUSING SET | 1 | |
| 27 | D10 | INC. 10,13 | ||
| 28 | 259048-1 | RING | 1 | |
| A01 | 122918-6 | DUSTBAG ASSEMBLY 3L | 1 | |
| A02 | 140456-6 | HOSE COMPLETE 28-2.5 | 1 | |
| A03 | 166094-6 | SHOULDER BELT | 1 | |
| A04 | 132025-7 | NOZZLE ASS'Y | 1 | |
| A04 | C10 | 414145-2 | JOINT | 1 |
| A05 | 417766-9 | FRONT CUFF 38 | 1 |
