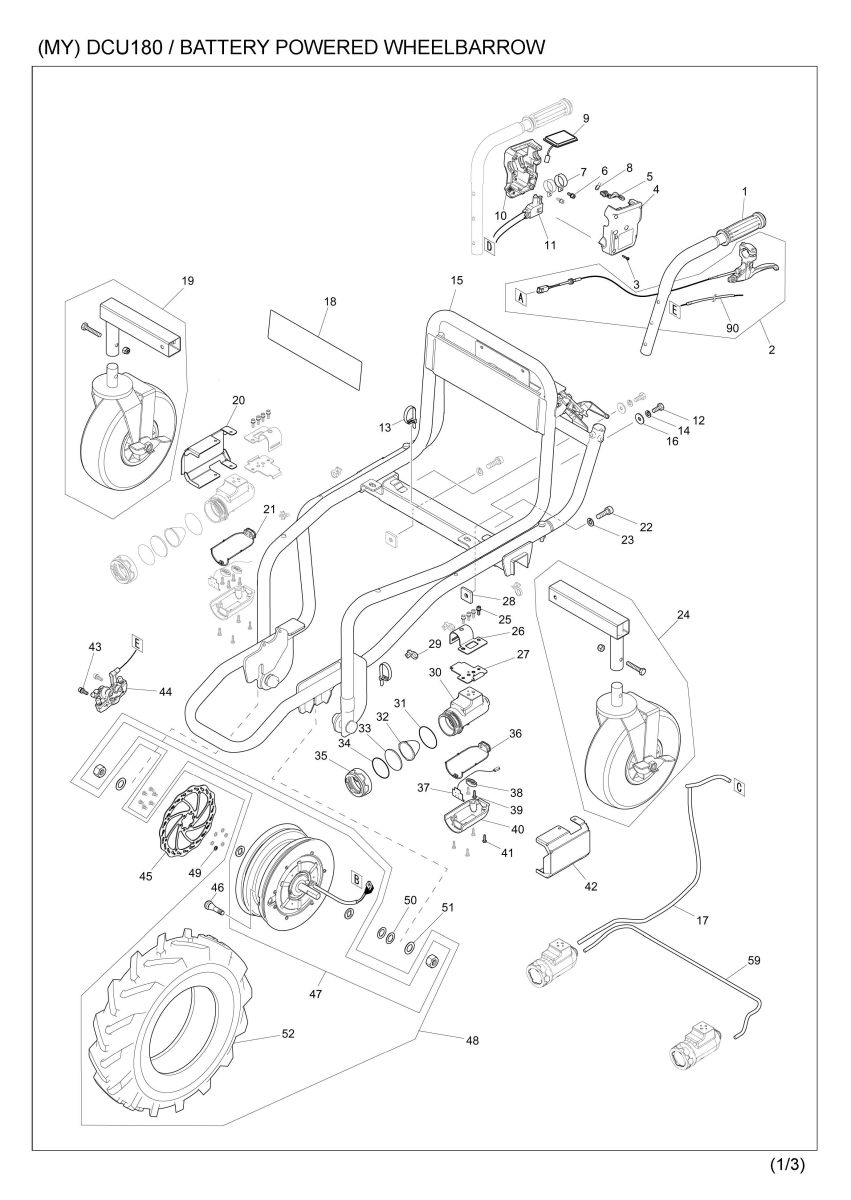

Part Diagram
Total: 163 record(s) at page 1 of 1

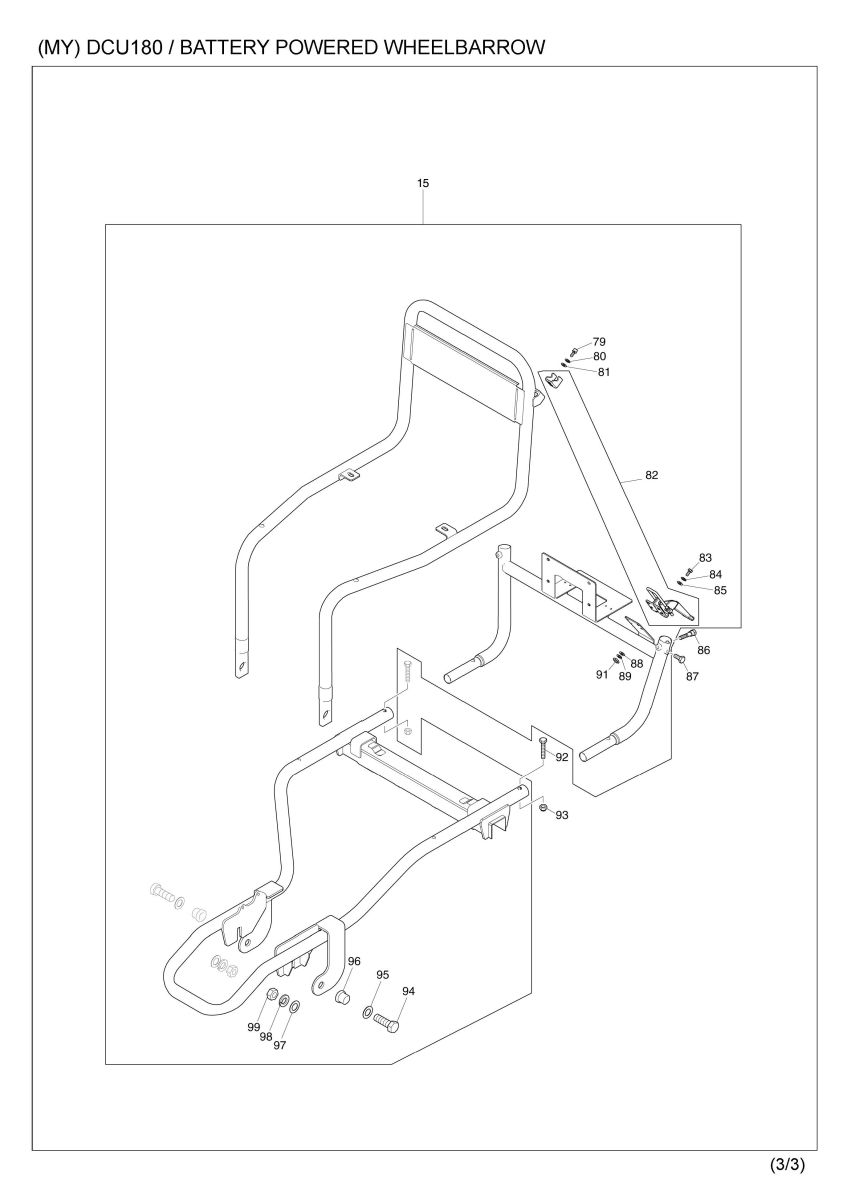

| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 161640-0 | HANDLE COMPLETE | 2 | |
| 2 | 161648-4 | BRAKE ASSEMBLY | 1 | |
| 2 | D10 | INC. 90 | ||
| 3 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | |
| 4 | 183H15-1 | SWITCH BOX SET | 1 | |
| 4 | C10 | 813J54-6 | CAUTION LABEL | 1 |
| 4 | D10 | INC. 10 | ||
| 004-1 | 183H15-1 | SWITCH BOX SET | 1 | |
| 004-1 | C10 | 813J54-6 | CAUTION LABEL | 1 |
| 004-1 | D10 | INC. 10 | ||
| 5 | 457633-6 | SWITCH LEVER | 1 | |
| 6 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | |
| 006-1 | 265A97-4 | H.S.H.BOLT M5X16 WITH WR | 2 | |
| 7 | 346249-1 | PIPE CLAMP 28 | 2 | |
| 8 | 233540-5 | TORSION SPRING 11 | 1 | |
| 9 | 144521-3 | SWITCH PLATE COMPLETE | 1 | |
| 9 | C10 | 812S78-3 | SWITCH LABEL | 1 |
| 10 | 183H15-1 | SWITCH BOX SET | 1 | |
| 10 | C10 | 813J54-6 | CAUTION LABEL | 1 |
| 10 | D10 | INC. 4 | ||
| 010-1 | 183H15-1 | SWITCH BOX SET | 1 | |
| 010-1 | C10 | 813J54-6 | CAUTION LABEL | 1 |
| 010-1 | D10 | INC. 4 | ||
| 11 | 650781-2 | SWITCH C3JW-6B-P | 1 | |
| 12 | 251595-8 | HEX.BOLT M8X20 | 2 | |
| 13 | 687410-4 | BAND | 2 | |
| 14 | 942201-3 | SPRING WASHER 8 | 2 | |
| 15 | 126589-1 | FRAME ASSEMBLY | 1 | |
| 15 | D10 | INC. 79-89,91-99 | ||
| 015-1 | 126905-7 | FRAME ASSEMBLY | 1 | |
| 015-1 | D10 | INC. 79-89,91-99 | ||
| 015-1 | D11 | INC. 79-85,88,89,91,94-99 | ||
| 16 | 253852-0 | FLAT WASHER 8 | 2 | |
| 17 | 699095-4 | POWER SUPPLY CORD UNIT | 1 | |
| 18 | 812S79-1 | MAKITA LOGO LABEL | 1 | |
| 19 | 126893-8 | REAR TIRE R ASSEMBLY | 1 | |
| 19 | C10 | 161639-5 | JOINT | 1 |
| 19 | C20 | 161868-0 | TIRE 260 WITH STOPPER | 1 |
| 19 | C30 | 921467-8 | HEX. BOLT M8X45 | 1 |
| 19 | C40 | 252105-4 | HEX. LOCK NUT M8-13 | 1 |
| 019-1 | 127092-5 | REARTIRE ASSEMBLY WITH STOPPER | 1 | |
| 019-1 | C10 | 161836-3 | JOINT | 1 |
| 019-1 | C20 | 161868-0 | TIRE 260 WITH STOPPER | 1 |
| 019-1 | C30 | 921467-8 | HEX. BOLT M8X45 | 1 |
| 019-1 | C40 | 252105-4 | HEX. LOCK NUT M8-13 | 1 |
| 20 | 347278-7 | GUARD R | 1 | |
| 21 | 422151-3 | PACKING | 1 | |
| 22 | 266240-2 | HEX. SOCKET HEAD BOLT M10X25 | 2 | |
| 23 | 941251-5 | FLAT WASHER 10 | 2 | |
| 24 | 126837-8 | REAR TIRE L ASSEMBLY | 1 | |
| 24 | C10 | 161663-8 | JOINT L | 1 |
| 24 | C20 | 161868-0 | TIRE 260 WITH STOPPER | 1 |
| 24 | C30 | 921467-8 | HEX. BOLT M8X45 | 1 |
| 24 | C40 | 252105-4 | HEX. LOCK NUT M8-13 | 1 |
| 024-1 | 127092-5 | REARTIRE ASSEMBLY WITH STOPPER | 1 | |
| 024-1 | C10 | 161836-3 | JOINT | 1 |
| 024-1 | C20 | 161868-0 | TIRE 260 WITH STOPPER | 1 |
| 024-1 | C30 | 921467-8 | HEX. BOLT M8X45 | 1 |
| 024-1 | C40 | 252105-4 | HEX. LOCK NUT M8-13 | 1 |
| 25 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 8 | |
| 025-1 | 265A97-4 | H.S.H.BOLT M5X16 WITH WR | 8 | |
| 26 | 347238-9 | CLAMP A | 2 | |
| 27 | 347239-7 | CLAMP B | 2 | |
| 28 | 347394-5 | PLATE | 2 | |
| 29 | 687849-1 | BAND | 5 | |
| 30 | 319594-7 | LIGHT CASE | 2 | |
| 31 | 213656-2 | O RING 53 | 2 | |
| 32 | 457636-0 | REFLECTOR | 2 | |
| 33 | 457634-4 | LENS | 2 | |
| 34 | 213604-1 | O RING 50 | 2 | |
| 35 | 457635-2 | COVER | 2 | |
| 36 | 422166-0 | PACKING | 1 | |
| 37 | 620685-2 | LED CIRCUIT | 2 | |
| 38 | 687123-7 | STRAIN RELIEF | 3 | |
| 39 | 266034-5 | TAPPING SCREW CT 4X16 | 6 | |
| 40 | 319595-5 | LIGHT CASE COVER | 2 | |
| 41 | 266034-5 | TAPPING SCREW CT 4X16 | 8 | |
| 42 | 347279-5 | GUARD L | 1 | |
| 43 | 922328-5 | H.S.H.BOLT M6X18 WITH WR | 2 | |
| 043-1 | 265A98-2 | H.S.H.BOLT M6X18 WITH WR | 2 | |
| 44 | 161641-8 | BRAKE CALIPER ASSEMBLY | 1 | |
| 45 | 347208-8 | BRAKE DISC | 1 | |
| 46 | 161638-7 | SNAP IN VALVE | 1 | |
| 47 | 126590-6 | WHEEL | 1 | |
| 47 | C10 | BF00000002 | HEX. NUT M16 | 2 |
| 47 | C20 | BF00000003 | FLAT WASHER | 2 |
| 47 | C30 | BF00000001 | HEX. SOCKET BUTTON BOLT M5X8 | 6 |
| 047-1 | 126590-6 | WHEEL | 1 | |
| 047-1 | C10 | BF00000002 | HEX. NUT M16 | 2 |
| 047-1 | C20 | BF00000003 | FLAT WASHER | 2 |
| 047-1 | C30 | BF00000001 | HEX. SOCKET BUTTON BOLT M5X8 | 6 |
| 047-2 | 126904-9 | WHEEL | 1 | |
| 047-2 | C10 | BF00000002 | HEX. NUT M16 | 2 |
| 047-2 | C20 | BF00000003 | FLAT WASHER | 2 |
| 047-2 | C30 | BF00000001 | HEX. SOCKET BUTTON BOLT M5X8 | 6 |
| 48 | 126734-8 | FRONT TIRE ASSEMBLY | 1 | |
| 48 | D10 | INC. 46,47,52 | ||
| 048-1 | 127081-0 | FRONT TIRE ASSEMBLY | 1 | |
| 048-1 | D10 | INC. 46,47,52 | ||
| 49 | 941102-2 | FLAT WASHER 5 | 6 | |
| 50 | 232247-0 | CONED DISC SPRING 16 | 2 | |
| 050-1 | 232605-0 | CONED DISC SPRING 16 | 2 | |
| 51 | 253377-4 | FLAT WASHER 17 | 2 | |
| 051-1 | 253470-4 | FLAT WASHER 17 | 2 | |
| 52 | 422159-7 | FRONT TIRE 430 | 1 | |
| 53 | 457625-5 | LEVER 25 | 1 | |
| 54 | 213005-3 | O RING 5 | 1 | |
| 55 | 213078-6 | O-RING 10 | 1 | |

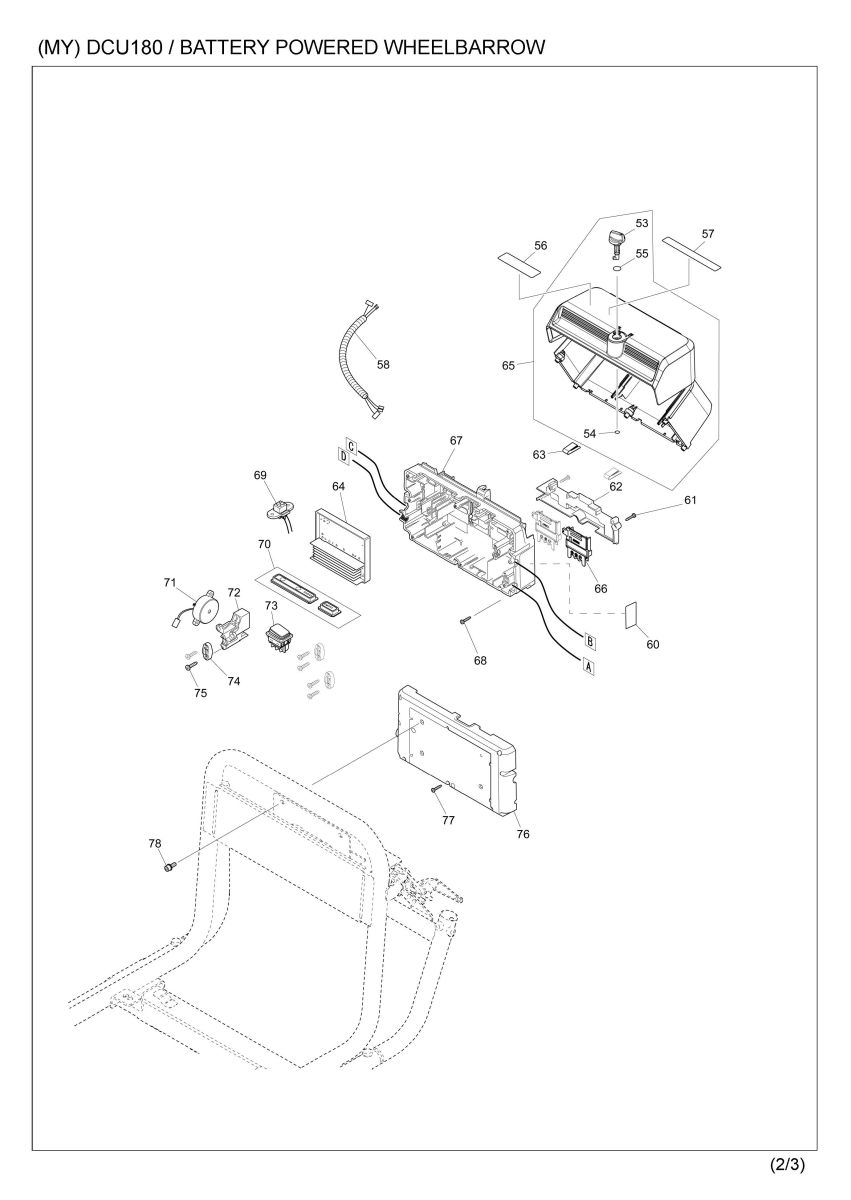

| 56 | 816M70-5 | INDICATION LABEL | 1 | |
| 57 | 816N32-9 | CAUTION LABEL | 1 | |
| 58 | 632K49-4 | LEAD UNIT | 1 | |
| 59 | 699096-2 | POWER SUPPLY CORD UNIT | 1 | |
| 59 | C10 | 682576-5 | GROMMET | 1 |
| 59 | C20 | 688162-0 | LINE FILTER | 2 |
| 60 | 853S84-9 | DCU180 NAME PLATE | 1 | |
| 61 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 62 | 457629-7 | TERMINAL HOLDER | 1 | |
| 63 | 232267-4 | LEAF SPRING | 2 | |
| 64 | 620675-5 | CONTROLLER | 1 | |
| 65 | 135934-9 | BATTERY BOX ASSY | 1 | |
| 65 | D10 | INC. 53-55 | ||
| 66 | 643874-2 | TERMINAL | 2 | |
| 67 | 144519-0 | CENTER CASE COMPLETE | 1 | |
| 67 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 68 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 5 | |
| 69 | 632K50-9 | LEAD UNIT | 1 | |
| 70 | 144520-5 | SUB CONTROLLER COMPLETE | 1 | |
| 71 | 620684-4 | BUZZER CIRCUIT | 1 | |
| 72 | 457630-2 | COVER | 1 | |
| 73 | 651534-2 | SWITCH 1934.3112B | 1 | |
| 74 | 687123-7 | STRAIN RELIEF | 3 | |
| 75 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 76 | 457628-9 | FRONT COVER | 1 | |
| 77 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 78 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 4 | |
| 078-1 | 265A96-6 | H.S.H.BOLT M5X14 WITH WR | 4 | |
| 79 | TR00000069 | HEX.SOCKET HEAD BOLT M5X14 | 2 | |
| 80 | 942101-7 | SPRING WASHER 5 | 2 | |
| 81 | 941101-4 | FLAT WASHER 5 | 2 | |
| 82 | TR00000067 | LOCK LEVER | 1 | |
| 83 | TR00000068 | HEX.BOLT M5X16 | 4 | |
| 84 | 942101-7 | SPRING WASHER 5 | 4 | |
| 85 | 941101-4 | FLAT WASHER 5 | 4 | |
| 86 | 251594-0 | SHOULDER HEX. BOLT M8X40 | 2 | |
| 87 | 251595-8 | HEX.BOLT M8X20 | 2 | |
| 88 | 941101-4 | FLAT WASHER 5 | 4 | |
| 89 | 942101-7 | SPRING WASHER 5 | 4 | |
| 90 | 144700-3 | BRAKE CABLE | 1 | |
| 91 | 931202-6 | HEX. NUT M5 | 4 | |
| 92 | 921467-8 | HEX. BOLT M8X45 | 2 | |
| 93 | 252105-4 | HEX. LOCK NUT M8-13 | 2 | |
| 94 | TR00000070 | HEX.BOLT M16X50 | 2 | |
| 95 | TR00000073 | FLAT WASHER 17 | 2 | |
| 96 | 326968-5 | SLEEVE 17 | 2 | |
| 97 | TR00000073 | FLAT WASHER 17 | 2 | |
| 98 | TR00000072 | SPRING 16 | 2 | |
| 99 | TR00000071 | HEX.NUT M16-24 | 2 | |
| 100 | 941102-2 | FLAT WASHER 5 | 6 | |
| 101 | 253377-4 | FLAT WASHER 17 | 1 | |
| A01 | 144675-6 | FOOT COMPLETE | 2 | |
| A02 | 455588-9 | WIRE CLAMP | 2 | |
| A03 | 643890-4 | KEY | 1 | |
| A04 | 781006-4 | WRENCH 13 | 2 |
