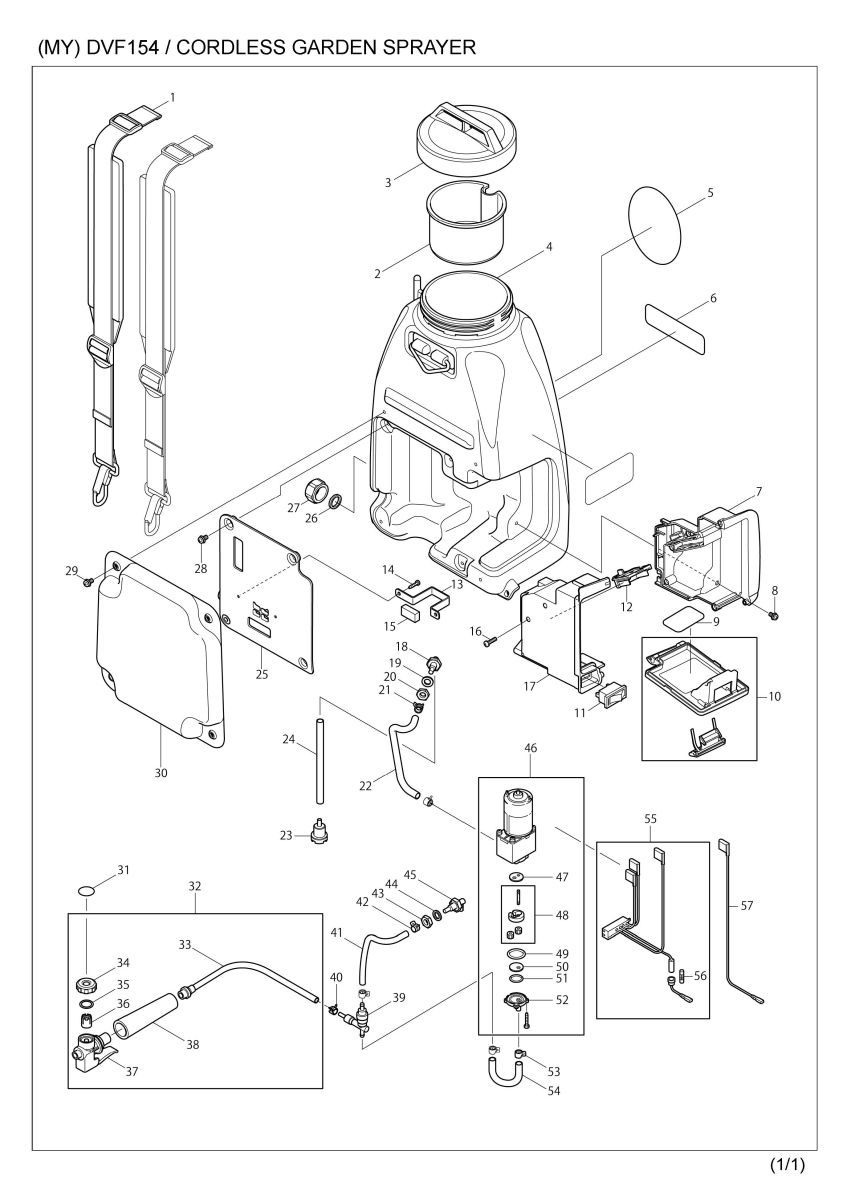

Part Diagram
Total: 83 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 6709026001 | BAND COMPL | 2 | |
| 001-1 | 161884-2 | BAND COMPL | 2 | |
| 2 | 6904503601 | STRAINER, TANK | 1 | |
| 3 | 6954022000 | CAP COMPLETE | 1 | |
| 4 | 6954012004 | TANK COMPLETE | 1 | |
| 5 | 804M22-8 | INDICATION LABEL | 1 | |
| 006-1 | 806Y38-1 | MAKITA LOGO LABEL | 1 | |
| 7 | 6951504600 | BATTERY HOUSING R | 1 | |
| 8 | 140059260 | SCREW | 3 | |
| 008-1 | 911209-8 | PAN HEAD SCREW M5X10 | 3 | |
| 9 | 6954513200 | INDICATION LABEL | 1 | |
| 10 | 6951036000 | COVER ASSY | 1 | |
| 11 | 651531-8 | SWITCH OR05-11B-BB-2 | 1 | |
| 12 | 643843-3 | TERMINAL | 1 | |
| 13 | 6951503501 | PLATE, PUMP | 1 | |
| 14 | 150049850 | TAPPING SCREW | 2 | |
| 014-1 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 15 | 6951504100 | CUSHION, PUMP | 1 | |
| 015-1 | 424891-9 | PUMP CUSHION | 1 | |
| 16 | 150049850 | TAPPING SCREW | 5 | |
| 016-1 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 17 | 6951504300 | BATTERY HOUSING L | 1 | |
| 18 | 6951022000 | JOINT, ELBOW | 1 | |
| 19 | 6951023000 | PACKING, ELBOW | 1 | |
| 20 | 6951024001 | NUT, ELBOW | 1 | |
| 21 | 561100030 | HOSE CLAMP | 2 | |
| 22 | 6951503601 | TUBE1 | 1 | |
| 23 | 6954021000 | STRAINER, SUCTION ASSY | 1 | |
| 24 | 6951503900 | TUBE4 | 1 | |
| 25 | 6951503101 | PUMP HOLDER | 1 | |
| 26 | 6904500300 | GASKET, BLIND | 1 | |
| 27 | 453615-6 | CAP | 1 | |
| 28 | 140059260 | SCREW | 3 | |
| 028-1 | 911209-8 | PAN HEAD SCREW M5X10 | 3 | |
| 29 | 140059260 | SCREW | 4 | |
| 029-1 | 911209-8 | PAN HEAD SCREW M5X10 | 4 | |
| 029-2 | 265B94-6 | + PAN HEAD SCREW M5 | 4 | |
| 30 | 6954025000 | CUSHION | 1 | |
| 31 | 6954513100 | LABEL, CAUTION | 1 | |
| 32 | 6957029001 | HOSE, SPRAY COMPLETE | 1 | |
| 32 | D10 | INC. 33-38 | ||
| 33 | 6957025012 | HOSE COMPLETE | 1 | |
| 34 | 6957025060 | CAP, LEVER | 1 | |
| 35 | 6957025050 | O-RING | 1 | |
| 36 | 6957025040 | STRAINER | 1 | |
| 37 | 6957029010 | LEVER COMPL | 1 | |
| 37 | D10 | INC. 34-36 | ||
| 38 | 6957025020 | GRIP | 1 | |
| 39 | 6951021001 | REGURATOR COMPLETE | 1 | |
| 40 | 561089980 | HOSE CLAMP | 1 | |
| 41 | 6951503800 | TUBE 3 | 1 | |
| 42 | 345918-1 | HOSE CLAMP | 2 | |
| 43 | 6951024001 | NUT, ELBOW | 1 | |
| 44 | 6951023000 | PACKING, ELBOW | 1 | |
| 45 | 6951022000 | JOINT, ELBOW | 1 | |
| 46 | 126194-4 | PUMP ASSEMBLY | 1 | |
| 46 | C10 | 629873-8 | DC MOTOR | 1 |
| 46 | C20 | 6951029010 | SCREW M3X16 | 8 |
| 46 | C30 | 6951027020 | MOTOR BRACKET | 1 |
| 46 | C40 | 6951029020 | SCREW M4X12 | 2 |
| 46 | C50 | 6951027030 | MOTOR COUPLING | 1 |
| 46 | C60 | 6951027010 | PUMP COUPLING | 1 |
| 46 | C70 | 6951027050 | PUMP HOUSING SET | 1 |
| 46 | D10 | INC. 47-52 | ||
| 47 | 6951502900 | PLATE 1 | 1 | |
| 48 | 6951019000 | GEAR SET | 1 | |
| 49 | 6951502600 | O-RING 1 | 1 | |
| 50 | 6951503000 | PLATE 2 | 1 | |
| 51 | 6951502700 | O-RING 2 | 1 | |
| 52 | 6951502800 | COVER | 1 | |
| 53 | 561100030 | HOSE CLAMP | 2 | |
| 54 | 6951503700 | TUBE 2 | 1 | |
| 55 | 631898-0 | CONTROLLER | 1 | |
| 55 | D10 | INC. 56 | ||
| 56 | 6959505700 | FUSE | 1 | |
| 056-1 | 652063-8 | FUSE | 1 | |
| 57 | 638670-1 | LEAD UNIT | 1 | |
| 58 | 815X43-1 | DVF154 NAME PLATE | 1 | |
| 59 | 326493-6 | JOINT G1/4XG1/4 | 1 | |
| A01 | 6959505801 | PIPE, SPRAY | 1 | |
| A02 | 6958029000 | NOZZLE COMPLETE | 1 | |
| A03 | 6958028000 | NOZZLE COMPLETE | 1 | |
| A04 | 6909511104 | STRAP PIPE | 1 |
