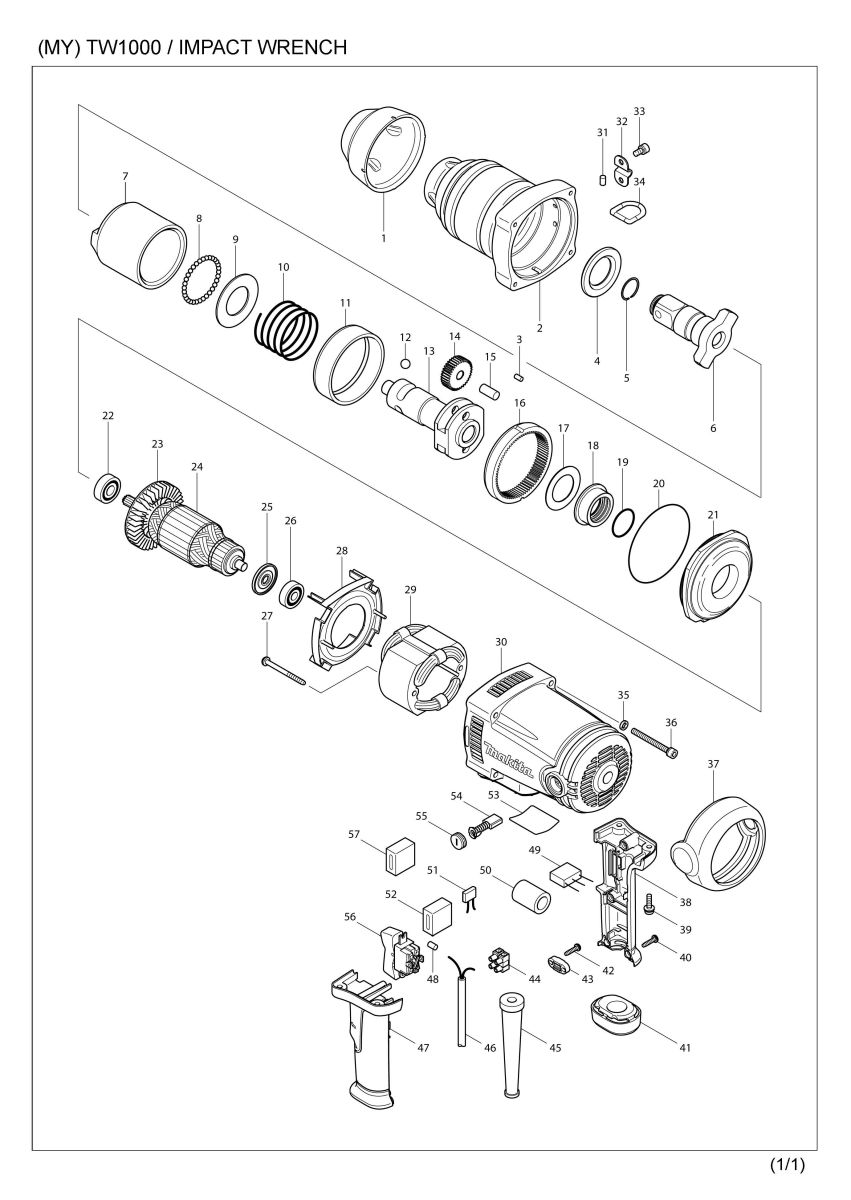

Part Diagram
Total: 78 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 421895-2 | FRONT BUMPER | 1 | |
| 2 | 154555-8 | HAMMER CASE COMPLETE | 1 | |
| 3 | 256253-1 | PIN 5 | 2 | |
| 4 | 253909-7 | FLAT WASHER 35 | 1 | |
| 5 | 231921-7 | RING SPRING 22 | 1 | |
| 6 | 325587-4 | ANVIL | 1 | |
| 7 | 325415-3 | HAMMER | 1 | |
| 8 | 216002-8 | STEEL BALL 4.8 | 32 | |
| 9 | 253712-6 | FLAT WASHER 36 | 1 | |
| 10 | 233428-9 | COMPRESSION SPRING 45 | 1 | |
| 010-1 | 231211-8 | COMPRESSION SPRING 36 | 1 | |
| 11 | 333112-7 | RING 79 | 1 | |
| 12 | 216010-9 | STEEL BALL 10.3 | 2 | |
| 13 | 324501-7 | SPINDLE | 1 | |
| 013-1 | 324666-5 | SPINDLE | 1 | |
| 14 | 227149-3 | SPUR GEAR 37 | 2 | |
| 15 | 256051-3 | PIN 10 | 2 | |
| 16 | 221815-4 | INTERNAL GEAR 82 | 1 | |
| 17 | 267170-0 | FLAT WASHER 34 | 1 | |
| 18 | 310154-8 | BEARING BOX | 1 | |
| 19 | 213459-4 | O RING 32 | 1 | |
| 20 | 213855-6 | O RING 95 | 1 | |
| 21 | 317841-0 | HAMMER CASE COVER | 1 | |
| 22 | 211137-0 | BALL BEARING 6201LLU | 1 | |
| 23 | 240003-4 | FAN 80 | 1 | |
| 24 | 516919-8 | ARMATURE ASS'Y 240V | 1 | |
| 24 | D10 | INC. 22,23,25,26 | ||
| 25 | 681665-3 | INSULATION WASHER | 1 | |
| 26 | 211066-7 | BALL BEARING 6200LLB | 1 | |
| 27 | 265345-5 | + HEX. BOLT M5X60 | 2 | |
| 28 | 418814-7 | BAFFLE PLATE | 1 | |
| 29 | 526149-3 | FIELD ASS'Y 240V | 1 | |
| 29 | C10 | 654020-2 | RING TERMINAL | 2 |
| 29 | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 30 | 154556-6 | MOTOR HOUSING COMPLETE | 1 | |
| 30 | C10 | 643653-8 | BRUSH HOLDER 6.5-13.5 | 2 |
| 31 | 263005-3 | RUBBER PIN 6 | 1 | |
| 32 | 345517-9 | PLATE | 1 | |
| 33 | 266157-9 | HEX. SOCKET HEAD BOLT M6X12 | 2 | |
| 033-1 | 922311-2 | HEX. SOCKET HEAD BOLT M6X12 | 2 | |
| 34 | 282018-5 | D-RING | 1 | |
| 35 | 941151-9 | FLAT WASHER 6 | 4 | |
| 36 | 265538-4 | HEX.SOCKET HEAD BOLT M6X60 | 4 | |
| 036-1 | 265538-4 | HEX.SOCKET HEAD BOLT M6X60 | 4 | |
| 37 | 421896-0 | REAR BUMPER | 1 | |
| 38 | 183935-1 | HANDLE SET | 1 | |
| 38 | D10 | INC. 47 | ||
| 39 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 40 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 41 | 421897-8 | BUMPER | 1 | |
| 42 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 43 | 687052-4 | STRAIN RELIEF | 1 | |
| 44 | 654531-7 | TERMINAL BLOCK 2P | 1 | |
| 45 | 682564-2 | CORD GUARD | 1 | |
| 46 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 47 | 183935-1 | HANDLE SET | 1 | |
| 47 | D10 | INC. 38 | ||
| 48 | 263005-3 | RUBBER PIN 6 | 1 | |
| 52 | 685725-3 | SPONGE SHEET | 1 | |
| 53 | 861265-7 | TW1000 NAME PLATE | 1 | |
| 54 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 55 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 055-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 56 | 651572-4 | SWITCH SL220SD-19 | 1 | |
| 58 | 231212-6 | COMPRESSION SPRING 49 | 1 | |
| 59 | 253713-4 | FLAT WASHER 35 | 1 | |
| A01 | 122727-3 | SIDE GRIP ASS'Y | 1 | |
| A01 | C10 | 152624-9 | GRIP 36 COMPLETE | 1 |
| A01 | C20 | 266358-9 | R.H SQUARE NECK BOLT M8X50 | 1 |
| A01 | C30 | 312743-5 | GRIP BASE | 1 |
| A01 | C40 | 345097-5 | BELT | 1 |
| A02 | 134872-2 | SOCKET 41-80 ASS'Y | 1 | |
| A02 | D10 | INC. A03,A04 | ||
| A03 | 213570-2 | O-RING 44 | 1 | |
| A04 | 256284-0 | PIN 5 | 1 | |
| A05 | 824737-3 | PLASTIC CARRYING CASE | 1 | |
| A05 | C10 | 416401-6 | LATCH | 2 |
| A05 | C11 | 163467-4 | LATCH | 2 |
