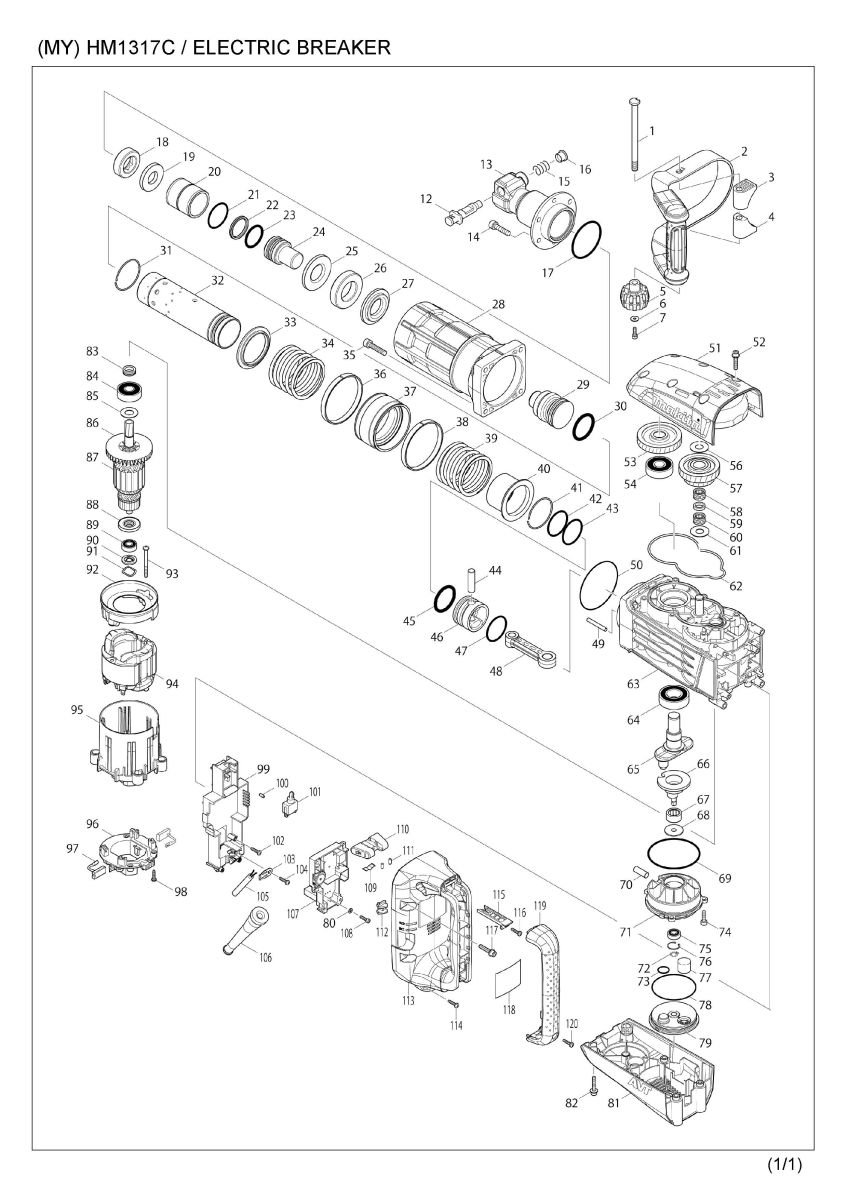

Part Diagram
Total: 124 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266512-5 | SET BOLT M10X142 | 1 | |
| 2 | 163506-0 | SIDE HANDLE | 1 | |
| 3 | 451331-4 | HANDLE BASE | 1 | |
| 4 | 451331-4 | HANDLE BASE | 1 | |
| 5 | 252654-1 | THUMB NUT M10 | 1 | |
| 6 | 253194-2 | FLAT WASHER 5 | 1 | |
| 7 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 1 | |
| 12 | 324099-4 | TOOL RETAINER | 1 | |
| 13 | 331866-0 | TOOL HOLDER | 1 | |
| 14 | 266011-7 | HEX. SOCKET HEAD BOLT M8X35 | 6 | |
| 15 | 233309-7 | COMPRESSION SPRING 17 | 1 | |
| 16 | 324135-6 | RETAINER SLEEVE | 1 | |
| 17 | 213720-9 | O RING 67 | 1 | |
| 18 | 262150-1 | URETHAN RING | 1 | |
| 19 | 267401-7 | FLAT WASHER 24 | 1 | |
| 20 | 257782-7 | SLEEVE 43 | 1 | |
| 21 | 213569-7 | O RING 45 | 1 | |
| 22 | 213192-8 | X-RING 36 | 1 | |
| 23 | 213150-4 | O-RING 36 | 1 | |
| 24 | 325682-0 | IMPACT BOLT | 1 | |
| 25 | 325683-8 | WASHER 30 | 1 | |
| 26 | 424206-0 | RUBBER RING 36 | 1 | |
| 27 | 325684-6 | SHOULDER RING 32 | 1 | |
| 28 | 318458-2 | BARREL | 1 | |
| 29 | 325685-4 | STRIKER | 1 | |
| 30 | 213193-6 | O-RING 42 | 1 | |
| 31 | 233977-6 | RING SPRING 55 | 1 | |
| 32 | 331870-9 | CYLINDER 52 | 1 | |
| 33 | 451168-9 | SHOULDER SLEEVE | 1 | |
| 34 | 234111-1 | COMPRESSION SPRING 66 | 1 | |
| 35 | 265367-5 | HEX. SOCKET HEAD BOLT M8X40 | 4 | |
| 36 | 451169-7 | WEIGHT GUIDE | 1 | |
| 37 | 331867-8 | COUNTER WEIGHT | 1 | |
| 38 | 451169-7 | WEIGHT GUIDE | 1 | |
| 39 | 234111-1 | COMPRESSION SPRING 66 | 1 | |
| 40 | 331868-6 | SLIDE SLEEVE | 1 | |
| 41 | 233977-6 | RING SPRING 55 | 1 | |
| 42 | 213569-7 | O RING 45 | 1 | |
| 43 | 213569-7 | O RING 45 | 1 | |
| 44 | 256238-7 | PIN 12 | 1 | |
| 45 | 213193-6 | O-RING 42 | 1 | |
| 46 | 318459-0 | PISTON | 1 | |
| 47 | 213569-7 | O RING 45 | 1 | |
| 48 | 451164-7 | CONNECTING ROD | 1 | |
| 49 | 268241-6 | PIN 6 | 1 | |
| 50 | 213806-9 | O RING 90 | 1 | |
| 51 | 318462-1 | GEAR COVER | 1 | |
| 52 | 266499-1 | H.S HEAD BOLT M6X30 WITH GM | 6 | |
| 53 | 227709-1 | HELICAL GEAR 47 | 1 | |
| 54 | 211306-3 | BALL BEARING 6204LLB | 1 | |
| 56 | 267166-1 | FLAT WASHER 14 | 1 | |
| 57 | 226156-3 | GEAR COMPLETE 31-43 | 1 | |
| 58 | 212159-3 | NEEDLE CAGE 1412 | 1 | |
| 59 | 262157-7 | NYLON RING 14 | 1 | |
| 60 | 212159-3 | NEEDLE CAGE 1412 | 1 | |
| 61 | 267166-1 | FLAT WASHER 14 | 1 | |
| 62 | 424207-8 | SEAL RING | 1 | |
| 63 | 140056-2 | CRANK HOUSING COMPLETE | 1 | |
| 64 | 211373-8 | BALL BEARING 6205LLU | 1 | |
| 65 | 331871-7 | CRANK SHAFT | 1 | |
| 66 | 331869-4 | COUNTER SHAFT | 1 | |
| 67 | 212264-6 | NEEDLE ROLLER BEARING 1813 | 1 | |
| 68 | 325686-2 | SHOULDER WASHER 8 | 1 | |
| 69 | 213809-3 | O RING 87 | 1 | |
| 70 | 268240-8 | PIN 10 | 1 | |
| 71 | 140057-0 | BEARING BOX COMPLETE | 1 | |
| 72 | 961004-6 | RETAINING RING S-8 | 1 | |
| 73 | 213261-5 | O RING 17 | 1 | |
| 74 | 265844-7 | HEX. SOCKET HEAD BOLT M6X20 | 3 | |
| 75 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 075-1 | 210223-4 | BALL BEARING 608ZZ | 1 | |
| 76 | 962112-6 | RETAINING RING R-22 | 1 | |
| 77 | 443127-7 | FILTER | 1 | |
| 78 | 213758-4 | O RING 74 | 1 | |
| 79 | 451166-3 | CRANK CAP COVER | 1 | |
| 81 | 451167-1 | REAR COVER | 1 | |
| 82 | 266499-1 | H.S HEAD BOLT M6X30 WITH GM | 6 | |
| 83 | 331855-5 | SEALING SCREW | 1 | |
| 84 | 211249-9 | BALL BEARING 6302LLU | 1 | |
| 85 | 267397-2 | FLAT WASHER 15 | 1 | |
| 86 | 240003-4 | FAN 80 | 1 | |
| 87 | 517788-0 | ARMATURE ASSEMBLY 220-240V | 1 | |
| 87 | D10 | INC. 84-86,88,89 | ||
| 88 | 681642-5 | INSULATION WASHER | 1 | |
| 89 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 90 | 451107-9 | WASHER GUIDE | 1 | |
| 91 | 267809-5 | WAVE WASHER 19 | 1 | |
| 92 | 451111-8 | BAFFLE PLATE | 1 | |
| 93 | 266044-2 | TAPPING SCREW 5X60 | 2 | |
| 94 | 636333-3 | FIELD 220-240V | 1 | |
| 95 | 451117-6 | MOTOR HOUSING | 1 | |
| 96 | 638447-4 | BRUSH HOLDER UNIT | 1 | |
| 096-1 | 632D00-2 | BRUSH HOLDER UNIT | 1 | |
| 097-1 | 195844-2 | CARBON BRUSH CB-175 | 1 | |
| 98 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 099-1 | 158986-3 | CONTROLLER COVER COMPLETE | 1 | |
| 100 | 263027-3 | RUBBER PIN 4 | 1 | |
| 101 | 651423-1 | SWITCH | 1 | |
| 102 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 103 | 687169-3 | STRAIN RELIEF | 1 | |
| 104 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 105 | 692623-4 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | |
| 106 | 682560-0 | CORD GUARD 10 | 1 | |
| 107-2 | 620230-3 | CONTROLLER | 1 | |
| 108-1 | 266834-3 | H.S.H.BOLT M4X18 WITH GM | 2 | |
| 109 | 232209-8 | LEAF SPRING | 1 | |
| 110 | 451112-6 | SLIDE LEVER | 1 | |
| 111 | 263027-3 | RUBBER PIN 4 | 2 | |
| 112 | 451105-3 | LENS | 1 | |
| 113 | 451118-4 | HANDLE | 1 | |
| 114 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 115 | 451106-1 | SWITCH LEVER | 1 | |
| 116 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 117 | 266499-1 | H.S HEAD BOLT M6X30 WITH GM | 4 | |
| 118 | 867300-9 | HM1317C NAME PLATE | 1 | |
| 119 | 451119-2 | HANDLE COVER | 1 | |
| 120 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| A01-1 | D-15285 | BULL POINT 400 | 1 | |
| A02 | 824897-1 | PLASTIC CARRYING CASE | 1 | |
| A02 | C10 | 162271-8 | LATCH | 2 |
| A03 | 809555-0 | HM1317C PLASTIC CASE LABEL | 2 | |
| B01 | 195103-4 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 2 |
| B01 | D10 | INC. 22,23,30,45,47,97 |
