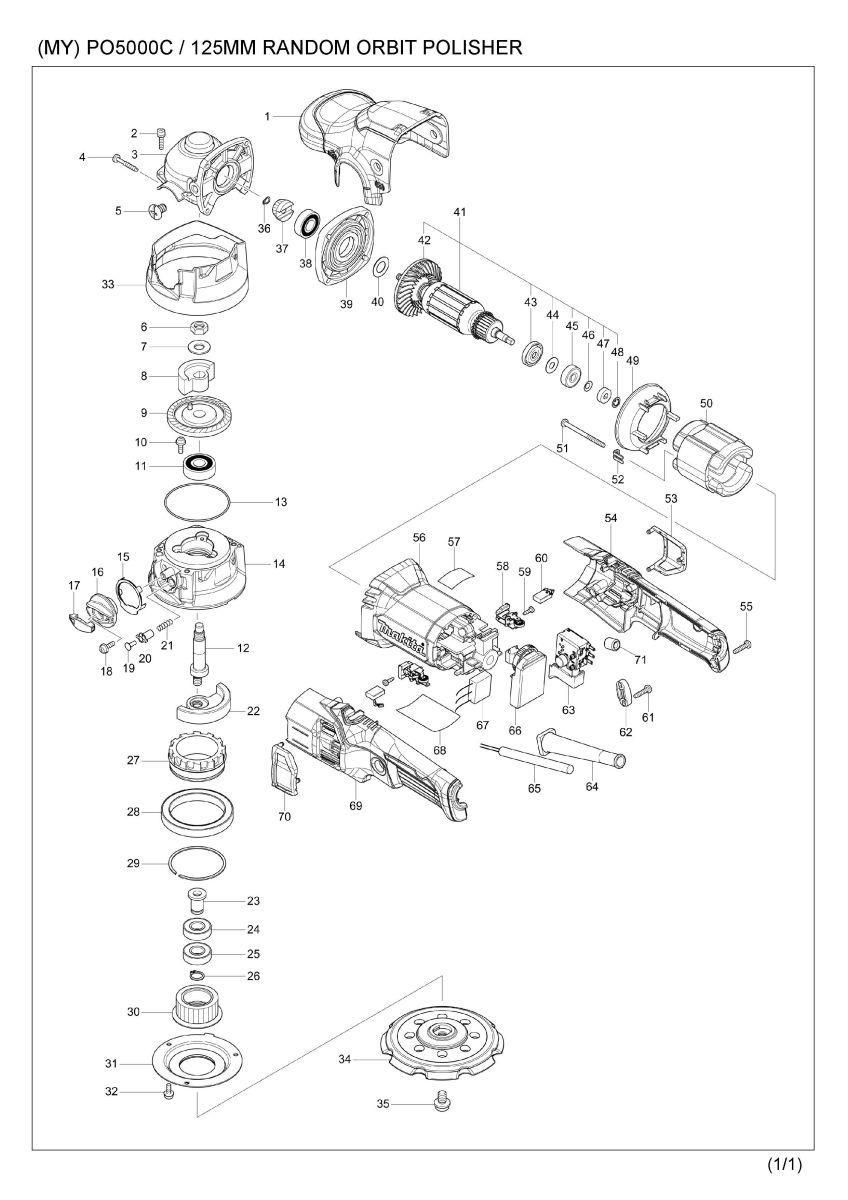

Part Diagram
Total: 81 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 456805-0 | HEAD COVER | 1 | |
| 2 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | |
| 3 | 143783-0 | GEAR HOUSING COMPLETE | 1 | |
| 4 | 266257-5 | TAPPING SCREW 4X28 | 4 | |
| 5 | 265083-9 | + FLAT HEAD SCREW M8X11 | 2 | |
| 6 | 931503-2 | HEX. NUT M10 | 1 | |
| 7 | 253024-7 | FLAT WASHER 10 | 1 | |
| 8 | 326735-8 | UPPER BALANCE WEIGHT | 1 | |
| 9 | 143782-2 | SPIRAL BEVEL GEAR 37 COMPLETE | 1 | |
| 10 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | |
| 11 | 211145-1 | BALL BEARING 6201ZZ | 1 | |
| 12 | 324069-3 | SPINDLE | 1 | |
| 13 | 213724-1 | O RING 62 | 1 | |
| 14 | 143784-8 | SKIRT COMPLETE | 1 | |
| 15 | 153427-4 | DUST SEAL WASHER COMPLETE | 1 | |
| 16 | 143785-6 | KNOB COMPLETE | 1 | |
| 17 | 456809-2 | CAP | 1 | |
| 18 | 911119-9 | PAN HEAD SCREW M4X12 | 1 | |
| 19 | 417382-7 | SPRING HOLDER | 1 | |
| 20 | 345209-0 | HOLDER | 1 | |
| 21 | 231230-4 | COMPRESSION SPRING 4 | 1 | |
| 22 | 326736-6 | LOWER BALANCE WEIGHT | 1 | |
| 23 | 324070-8 | SLEEVE | 1 | |
| 24 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 25 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 26 | 961052-5 | RETAINING RING S-12 | 1 | |
| 27 | 221453-2 | INTERNAL SPUR GEAR 29 | 1 | |
| 28 | 210146-6 | BALL BEARING 6811LLB | 1 | |
| 29 | 257933-2 | STOP RING (EXT) WR-55 | 1 | |
| 30 | 143790-3 | SPUR GEAR 26 COMPLETE | 1 | |
| 31 | 143938-7 | BEARING RETAINER 80 COMPLETE | 1 | |
| 32 | 911119-9 | PAN HEAD SCREW M4X12 | 3 | |
| 33 | 456806-8 | BUMPER | 1 | |
| 34 | 197922-4 | PAD 125 SET(EU) | 1 | |
| 34 | D10 | INC. 35 | ||
| 034-1 | 197923-2 | PAD 125 SET | 1 | |
| 034-1 | D10 | INC. 35 | ||
| 35 | 266270-3 | HEX.SOCKET HEAD BOLT M8X14 | 1 | |
| 36 | 961002-0 | RETAINING RING S-6 | 1 | |
| 37 | 221450-8 | SPIRAL BEVEL GEAR 10 | 1 | |
| 38 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 39 | 253084-9 | FLAT WASHER 12 | 1 | |
| 039-1 | 317359-1 | GEAR HOUSING COVER | 1 | |
| 40 | 317359-1 | GEAR HOUSING COVER | 1 | |
| 040-1 | 253084-9 | FLAT WASHER 12 | 1 | |
| 41 | 513484-8 | ARMATURE ASS'Y 240V | 1 | |
| 41 | D10 | INC. 42-48 | ||
| 42 | 240134-9 | FAN 60 | 1 | |
| 43 | 681656-4 | INSULATION WASHER | 1 | |
| 44 | 253823-7 | FLAT WASHER 7 | 1 | |
| 45 | 210045-2 | BALL BEARING 627DDW | 1 | |
| 46 | 267756-0 | WAVE WASHER 6 | 1 | |
| 47 | 688117-5 | MAGNET SLEEVE | 1 | |
| 48 | 259039-2 | SELF LOCK 6 | 1 | |
| 49 | 453367-9 | BUFFLE PLATE | 1 | |
| 50 | 621794-0 | FIELD 240V | 1 | |
| 51 | 266147-2 | TAPPING SCREW 4X55 | 2 | |
| 52 | 344871-8 | RETAINER | 2 | |
| 53 | 456807-6 | DUST COVER | 1 | |
| 54 | 183D86-4 | HANDLE SET | 1 | |
| 54 | D10 | INC. 69 | ||
| 55 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 56 | 456802-6 | MOTOR HOUSING | 1 | |
| 056-1 | 141E71-9 | MOTOR HOUSING COMPLETE | 1 | |
| 056-1 | D10 | INC. 57 | ||
| 57 | 809N91-0 | INDICATION LABEL | 1 | |
| 58 | 643770-4 | BRUSH HOLDER | 2 | |
| 59 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | |
| 60 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | |
| 61 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 62 | 687063-9 | CORD CLAMP | 1 | |
| 63 | 650776-5 | SWITCH DGQ-1113C | 1 | |
| 64 | 682572-3 | CORD GUARD 8 | 1 | |
| 65 | 692037-7 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | |
| 66 | 620511-5 | CONTROLLER | 1 | |
| 68 | 852H17-5 | PO5000C NAME PLATE | 1 | |
| 69 | 183D86-4 | HANDLE SET | 1 | |
| 69 | D10 | INC. 54 | ||
| 70 | 456807-6 | DUST COVER | 1 | |
| A01 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A02 | 410047-0 | WRENCH HOLDER 5.6 | 1 |
