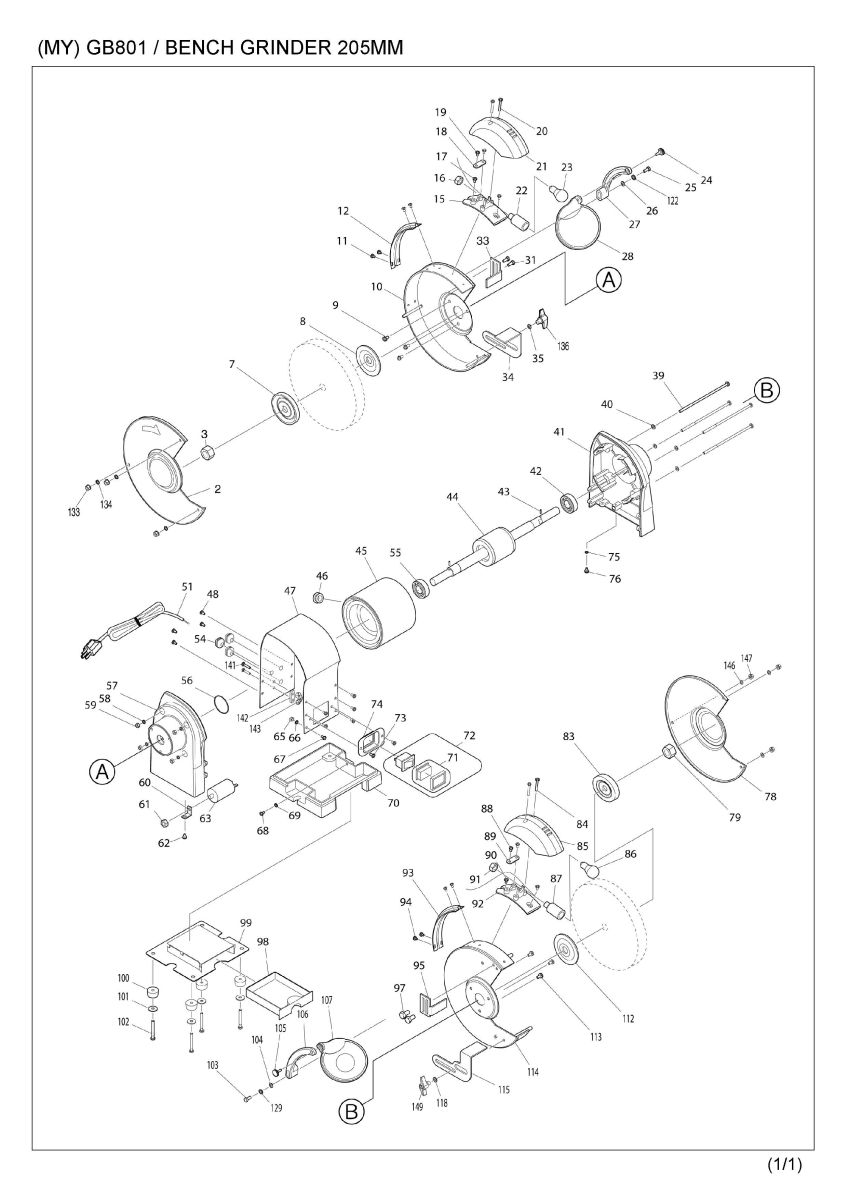

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 911276-3 | PAN HEAD SCREW M5X55 | 2 | |
| 2 | AL00000057 | WHEEL COVER L | 1 | |
| 3 | AL00000058 | HEX NUT M16L | 1 | |
| 4 | AL00000059 | PAN HEAD SCREW M5X5 | 2 | |
| 5 | AL00000060 | BALANCE PLATE | 1 | |
| 6 | AL00000061 | BALANCE WEIGHT | 2 | |
| 7 | AL00000062 | OUTER FLANGE | 1 | |
| 8 | AL00000063 | INNER FLANGE | 1 | |
| 9 | 911211-1 | PAN HEAD SCREW M5X12 | 3 | |
| 10 | AL00000064 | WHEEL COVER L | 1 | |
| 11 | 911107-6 | PAN HEAD SCREW M4X8 | 4 | |
| 12 | AL00000065 | CORD CLAMP | 1 | |
| 13 | 942101-7 | SPRING WASHER 5 | 1 | |
| 14 | 931201-8 | HEX. NUT M5 | 1 | |
| 15 | AL00000194 | LAMP COVER BASE | 1 | |
| 16 | AL00000009 | NUT | 1 | |
| 17 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 18 | AL00000010 | STRAIN RELIEF | 1 | |
| 19 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 20 | 911156-3 | PAN HEAD SCREW M4X30 | 2 | |
| 21 | AL00000011 | LAMP COVER | 1 | |
| 22 | AL00000012 | LAMP HOLDER ASSY | 1 | |
| 022-1 | AL00000138 | LAMP HOLDER ASSEMBLY | 1 | |
| 23 | AL00000013 | BULB | 1 | |
| 24 | AL00000014 | ADJUSTABLE KNOB | 1 | |
| 25 | 921351-7 | HEX. BOLT M6X30 | 1 | |
| 26 | 941151-9 | FLAT WASHER 6 | 1 | |
| 27 | AL00000015 | EYESHIELD MOUNTING ARM L | 1 | |
| 28 | AL00000016 | SAFETY EYE SHIELD | 1 | |
| 29 | 931201-8 | HEX. NUT M5 | 1 | |
| 30 | 942101-7 | SPRING WASHER 5 | 1 | |
| 31 | 921212-1 | HEX. BOLT M5X12 | 1 | |
| 32 | 942101-7 | SPRING WASHER 5 | 1 | |
| 33 | AL00000066 | SPARK DEFLECTOR (LEFT) | 1 | |
| 34 | AL00000067 | WORK REST (LEFT) | 1 | |
| 35 | 941202-8 | FLAT WASHER 8 | 2 | |
| 36 | 942101-7 | SPRING WASHER 5 | 1 | |
| 37 | 931201-8 | HEX. NUT M5 | 1 | |
| 38 | 921411-5 | HEX. BOLT M8X12 | 2 | |
| 39 | AL00000068 | PAN HEAD SCREW M5X142 | 4 | |
| 40 | 941101-4 | FLAT WASHER 5 | 4 | |
| 41 | AL00000069 | MOTOR HOUSING COVER R | 1 | |
| 42 | 211306-3 | BALL BEARING 6204LLB | 1 | |
| 43 | 951051-5 | SPRING PIN 3-8 | 2 | |
| 44 | AL00000070 | ROTOR | 1 | |
| 044-1 | AL00000241 | ROTOR | 1 | |
| 45 | AL00000190 | STATOR | 1 | |
| 045-1 | AL00000236 | STATOR | 1 | |
| 46 | AL00000022 | BUSH | 1 | |
| 47 | AL00000072 | MOTOR HOUSING | 1 | |
| 48 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 4 | |
| 49 | AL00000024 | CORD CLIP PLATE | 1 | |
| 50 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 51 | AL00000173 | POWER SUPPLY CORD | 1 | |
| 54 | AL00000026 | CORD GUARD | 3 | |
| 55 | 211306-3 | BALL BEARING 6204LLB | 1 | |
| 56 | AL00000073 | WAVE WASHER | 1 | |
| 57 | AL00000074 | MOTOR HOUSING COVER L | 1 | |
| 58 | 942101-7 | SPRING WASHER 5 | 4 | |
| 59 | 931201-8 | HEX. NUT M5 | 4 | |
| 60 | AL00000029 | CAPACITOR CLAMP | 1 | |
| 61 | 931402-8 | HEX. NUT M8 | 1 | |
| 62 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 63 | AL00000099 | CAPACITOR | 1 | |
| 64 | 942051-6 | SPRING WASHER 4 | 2 | |
| 65 | 931102-0 | HEX. NUT M4 | 4 | |
| 66 | 942051-6 | SPRING WASHER 4 | 2 | |
| 67 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 6 | |
| 68 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 69 | AL00000134 | TOOTHED LOCK WASHER 4 | 1 | |
| 70 | AL00000076 | BASE | 1 | |
| 71 | AL00000033 | SWITCH COVER ASSY | 1 | |
| 72 | AL00000032 | SWITCH ASSY COVER | 1 | |
| 072-1 | AL00000168 | SWITCH WITH COVER | 1 | |
| 73 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 74 | AL00000031 | SWITCH BOARD | 1 | |
| 75 | AL00000134 | TOOTHED LOCK WASHER 4 | 1 | |
| 76 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 78 | AL00000077 | SIDE COVER R | 1 | |
| 79 | AL00000078 | HEX NUT M16 | 1 | |
| 80 | AL00000059 | PAN HEAD SCREW M5X5 | 2 | |
| 81 | AL00000060 | BALANCE PLATE | 1 | |
| 82 | AL00000061 | BALANCE WEIGHT | 2 | |
| 83 | AL00000062 | OUTER FLANGE | 1 | |
| 84 | 911156-3 | PAN HEAD SCREW M4X30 | 2 | |
| 85 | AL00000011 | LAMP COVER | 1 | |
| 86 | AL00000013 | BULB | 1 | |
| 87 | AL00000012 | LAMP HOLDER ASSY | 1 | |
| 087-1 | AL00000138 | LAMP HOLDER ASSEMBLY | 1 | |
| 88 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 89 | AL00000010 | STRAIN RELIEF | 1 | |
| 90 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 2 | |
| 91 | AL00000009 | NUT | 1 | |
| 92 | AL00000194 | LAMP COVER BASE | 1 | |
| 93 | AL00000065 | CORD CLAMP | 1 | |
| 94 | 911107-6 | PAN HEAD SCREW M4X8 | 4 | |
| 95 | AL00000079 | SPARK DEFLECTOR (RIGHT) | 1 | |
| 96 | 942101-7 | SPRING WASHER 5 | 1 | |
| 97 | 921212-1 | HEX. BOLT M5X12 | 1 | |
| 98 | AL00000080 | COOLANT TRAY | 1 | |
| 99 | AL00000081 | COOLANT TRAY PLATE ASSY | 1 | |
| 100 | AL00000083 | RUBBER SLEEVE | 4 | |
| 101 | 941101-4 | FLAT WASHER 5 | 4 | |
| 102 | 911267-4 | PAN HEAD SCREW M5X45 | 4 | |
| 103 | 921351-7 | HEX. BOLT M6X30 | 1 | |
| 104 | 941151-9 | FLAT WASHER 6 | 1 | |
| 105 | AL00000014 | ADJUSTABLE KNOB | 1 | |
| 106 | AL00000038 | EYESHIELD MOUNTING ARM R | 1 | |
| 107 | AL00000037 | SAFETY EYE SHIELD WITH MAG | 1 | |
| 108 | 931201-8 | HEX. NUT M5 | 1 | |
| 109 | 942101-7 | SPRING WASHER 5 | 1 | |
| 110 | 931201-8 | HEX. NUT M5 | 1 | |
| 111 | 942101-7 | SPRING WASHER 5 | 1 | |
| 112 | AL00000063 | INNER FLANGE | 1 | |
| 113 | 911211-1 | PAN HEAD SCREW M5X12 | 3 | |
| 114 | AL00000084 | WHEEL COVER R | 1 | |
| 115 | AL00000085 | WORK REST (RIGHT) | 1 | |
| 116 | 942101-7 | SPRING WASHER 5 | 1 | |
| 117 | 931201-8 | HEX. NUT M5 | 1 | |
| 118 | 941202-8 | FLAT WASHER 8 | 2 | |
| 119 | 921411-5 | HEX. BOLT M8X12 | 2 | |
| 120 | 911274-7 | PAN HEAD SCREW M5X50 | 4 | |
| A01 | AL00000086 | WRENCH 10-13-17 | 1 | |
| A02 | AL00000087 | WRENCH 8-24 | 1 | |
| A04 | A-47254 | GRINDING WHEEL(BENCH,205) | 1 | |
| A04-1 | B-51976 | GRINDING WHEEL (BENCH,205) | 1 | |
| A05 | A-47260 | GRINDING WHEEL (BENCH,205) | 1 | |
| F01 | AL00000147 | SAFETY GOGGLES | 1 |
