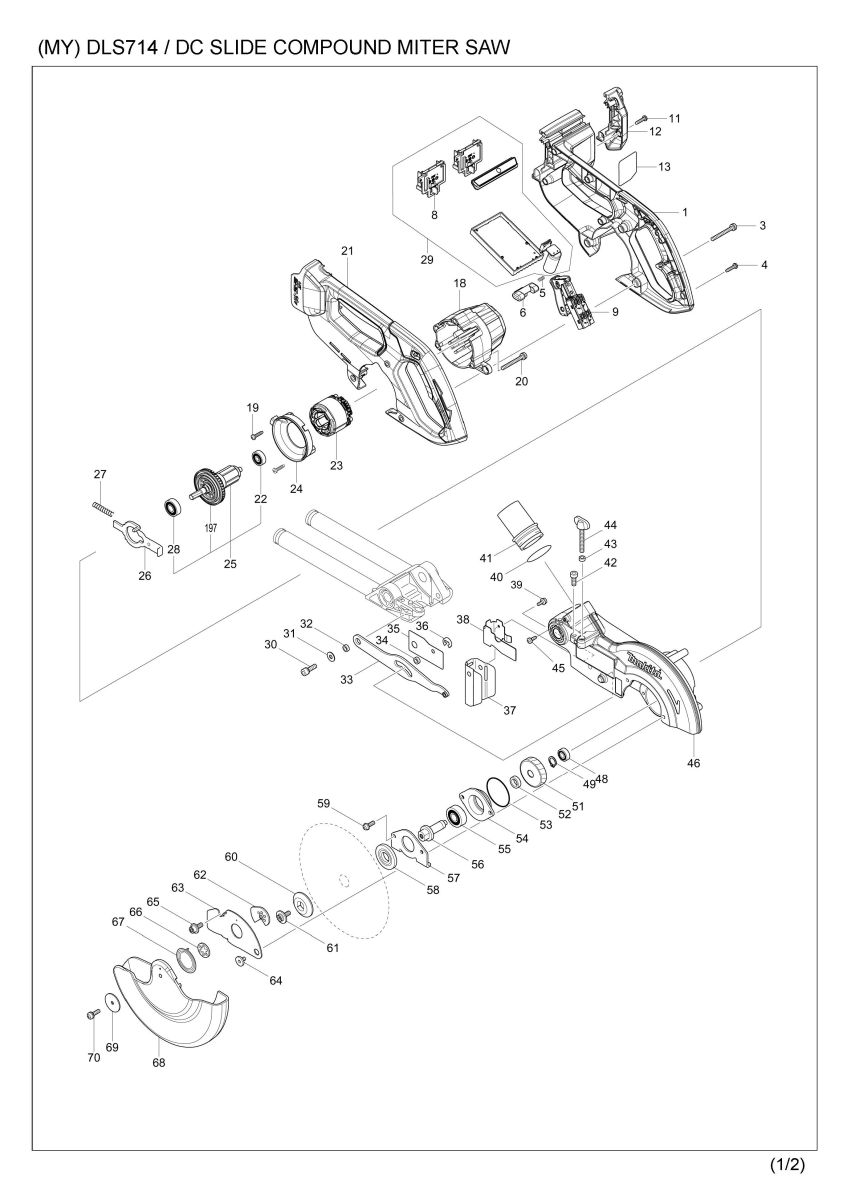

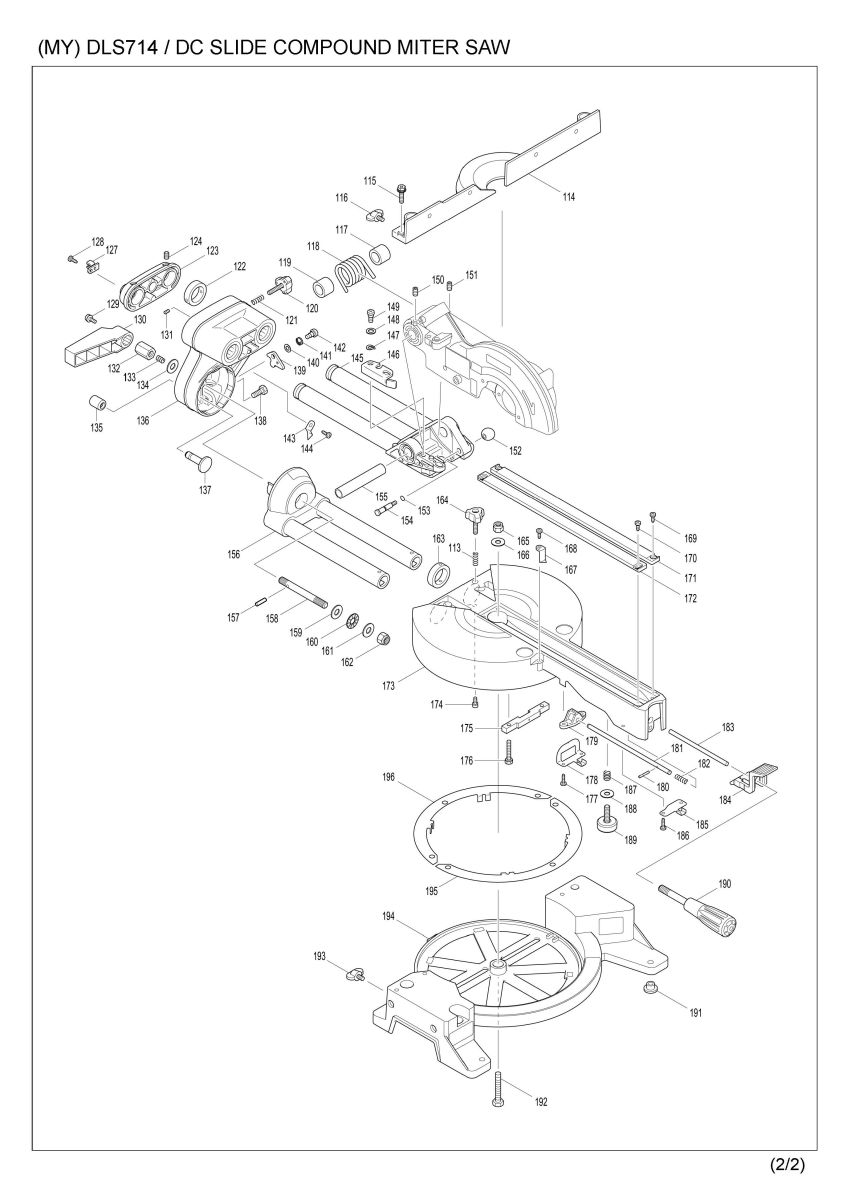

Part Diagram
Total: 195 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183B55-3 | HANDLE SET | 1 | |
| 1 | D10 | INC. 21 | ||
| 3 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | |
| 4 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 004-1 | 265A48-7 | TAPPING SCREW 4X18 | 6 | |
| 5 | 231397-8 | COMPRESSION SPRING 4 | 1 | |
| 6 | 456024-8 | LOCK OFF BUTTON | 1 | |
| 8 | 644808-8 | TERMINAL | 2 | |
| 9 | 650756-1 | SWITCH | 1 | |
| 11 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 011-1 | 265A48-7 | TAPPING SCREW 4X18 | 3 | |
| 12 | 143268-6 | HANDLE COVER COMPLETE | 1 | |
| 12 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 13 | 851E60-3 | DLS714 NAME PLATE | 1 | |
| 18 | 456022-2 | MOTOR HOUSING | 1 | |
| 19 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 019-1 | 265A48-7 | TAPPING SCREW 4X18 | 2 | |
| 20 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | |
| 21 | 183B55-3 | HANDLE SET | 1 | |
| 21 | D10 | INC. 1 | ||
| 22 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 23 | 629157-4 | STATOR | 1 | |
| 24 | 456023-0 | BAFFLE PLATE | 1 | |
| 25 | 519373-5 | ROTOR ASS'Y | 1 | |
| 25 | D10 | INC. 22,28,197 | ||
| 025-1 | 519373-5 | ROTOR ASS'Y | 1 | |
| 025-1 | D10 | INC. 22,28,197 | ||
| 025-2 | 519700-6 | ROTOR ASS'Y | 1 | |
| 025-2 | D10 | INC. 22,28,197 | ||
| 26 | 344681-3 | SHAFT LOCK | 1 | |
| 27 | 233092-6 | COMPRESSION SPRING 5 | 1 | |
| 28 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 29 | 143291-1 | CONTROLLER COMPLETE | 1 | |
| 29 | D10 | INC. 8 | ||
| 029-1 | 140B40-9 | CONTROLLER COMPLETE | 1 | |
| 029-1 | D10 | INC. 8 | ||
| 30 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 31 | 253804-1 | FLAT WASHER 6 | 1 | |
| 32 | 257163-5 | RING 6 | 1 | |
| 33 | 154643-1 | LINK PLATE COMPLETE | 1 | |
| 34 | 257163-5 | RING 6 | 1 | |
| 35 | 346330-8 | LINK COVER | 1 | |
| 36 | 961018-5 | STOP RING E-5 | 1 | |
| 37 | 424045-8 | GUARD | 1 | |
| 38 | 345438-5 | GUARD PLATE | 1 | |
| 39 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 40 | 213460-9 | O RING 35 | 1 | |
| 41 | 419277-0 | DUST NOZZLE | 1 | |
| 42 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 43 | 262001-8 | URETHANE RING 5 | 1 | |
| 44 | 265717-4 | SCREW M6X43 | 1 | |
| 45 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 46 | 140697-4 | BLADE CASE COMPLETE | 1 | |
| 46 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 46 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 48 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 49 | 961052-5 | RETAINING RING S-12 | 1 | |
| 51 | 227810-2 | HELICAL GEAR 53 | 1 | |
| 52 | 257088-3 | RING 12 | 1 | |
| 53 | 213623-7 | O RING 46 | 1 | |
| 54 | 317193-9 | BEARING BOX | 1 | |
| 55 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 56 | 323798-5 | SPINDLE | 1 | |
| 57 | 285694-4 | BEARING RETAINER 58 | 1 | |
| 58 | 224370-5 | INNER FLANGE 40 | 1 | |
| 59 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 60 | 224275-9 | OUTER FLANGE 40 | 1 | |
| 61 | 266733-9 | HEX. S.F.H. BOLT M6X16 | 1 | |
| 62 | 345585-2 | CENTER PLATE | 1 | |
| 63 | 346232-8 | CENTER COVER | 1 | |
| 64 | 265985-9 | HEX.SOCKET HEAD BOLT M6 | 1 | |
| 65 | 266732-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 66 | 345589-4 | CENTER WASHER | 1 | |
| 67 | 231934-8 | SPIRAL SPRING 26 | 1 | |
| 68 | 419123-7 | SAFETY COVER | 1 | |
| 69 | 267136-0 | FLAT WASHER 5 | 1 | |
| 70 | 265491-4 | H.S. BUTTON HEAD BOLT M5X16 | 1 | |
| 113 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 114 | 318655-0 | GUIDE FENCE | 1 | |
| 115 | 922344-7 | H.S.H.BOLT M6X25 WITH WG | 3 | |
| 116 | 251887-5 | SCREW M6X10 | 1 | |
| 117 | 416535-5 | SLEEVE 17 | 1 | |
| 118 | 233520-1 | TORSION SPRING 28 | 1 | |
| 119 | 416535-5 | SLEEVE 17 | 1 | |
| 120 | 265790-4 | THUMB SCREW M6X28 | 1 | |
| 121 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 122 | 257214-4 | RING 26 | 1 | |
| 123 | 318651-8 | PIPE HOLDER | 1 | |
| 124 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 2 | |
| 127 | 687045-1 | STRAIN RELIEF | 1 | |
| 128 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 129 | 911113-1 | PAN HEAD SCREW M4X10 WITH WR | 1 | |
| 130 | 416006-2 | LEVER 100 | 1 | |
| 131 | 913106-4 | SET SCREW M4X8 | 1 | |
| 132 | 252144-4 | HEX. NUT M10-17 | 1 | |
| 133 | 231266-3 | COMPRESSION SPRING 5 | 1 | |
| 134 | 253024-7 | FLAT WASHER 10 | 1 | |
| 135 | 286236-7 | CAP 16 | 1 | |
| 136 | 140609-7 | ARM COMPLETE | 1 | |
| 136 | C10 | 211376-2 | LINEAR BALL BEARING 2560 | 2 |
| 136 | C20 | 262077-5 | FELT RING 25 | 4 |
| 136 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 136 | C40 | 344638-4 | CAP 35 | 2 |
| 137 | 324295-4 | RELEASE PIN | 1 | |
| 138 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 2 | |
| 139 | 345299-3 | STOPPER PLATE | 1 | |
| 140 | 253726-5 | FLAT WASHER 6 | 1 | |
| 141 | 231663-3 | TORSION SPRING 8 | 1 | |
| 142 | 265113-6 | +PAN HEAD SCREW M5 | 1 | |
| 143 | 343678-9 | POINTER | 1 | |
| 144 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 145 | 140608-9 | FRONT ARM COMPLETE | 1 | |
| 146 | 344643-1 | STOPPER ARM | 1 | |
| 147 | 253948-7 | WAVE WASHER 8 | 1 | |
| 148 | 253835-0 | FLAT WASHER 8 | 1 | |
| 149 | 251267-5 | + PAN HEAD SCREW M6 | 1 | |
| 150 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 151 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 152 | 271601-3 | KNOB 20 | 1 | |
| 153 | 213021-5 | O RING 5 | 1 | |
| 154 | 324183-5 | STOPPER PIN | 1 | |
| 155 | 331350-5 | PIN 16-90 | 1 | |
| 156 | 140610-2 | ARM HOLDER COMPLETE | 1 | |
| 156 | C10 | 816392-5 | BEVEL SCALE LABEL | 1 |
| 157 | 256123-4 | PIN 5 | 1 | |
| 158 | 266320-4 | SCREW M10 | 1 | |
| 159 | 253024-7 | FLAT WASHER 10 | 1 | |
| 160 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | |
| 161 | 253024-7 | FLAT WASHER 10 | 1 | |
| 162 | 252130-5 | HEX. LOCK NUT M10-17 | 1 | |
| 163 | 257214-4 | RING 26 | 1 | |
| 164 | 265790-4 | THUMB SCREW M6X28 | 1 | |
| 165 | 252105-4 | HEX. LOCK NUT M8-13 | 1 | |
| 166 | 253731-2 | FLAT WASHER 8 | 1 | |
| 167 | 416355-7 | INDICATION PLATE | 1 | |
| 168 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 1 | |
| 169 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 170 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 171 | 419103-3 | KERF BOARD | 1 | |
| 172 | 419103-3 | KERF BOARD | 1 | |
| 173 | 140614-4 | TURN BASE COMPLETE | 1 | |
| 173 | C10 | 211376-2 | LINEAR BALL BEARING 2560 | 2 |
| 173 | C20 | 262077-5 | FELT RING 25 | 4 |
| 173 | C30 | 263005-3 | RUBBER PIN 6 | 1 |
| 173 | C40 | 344638-4 | CAP 35 | 2 |
| 173 | C50 | 810495-7 | CAUTION LABEL | 1 |
| 173 | C60 | 817283-3 | CAUTION LABEL | 2 |
| 173 | C61 | 813L22-1 | CAUTION LABEL | 2 |
| 174 | 922111-0 | HEX. SOCKET HEAD BOLT M4X10 | 1 | |
| 175 | 153580-6 | SQUARE ROD COMPLETE | 1 | |
| 175 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 176 | 925251-3 | HEX.BOLT M5X30 | 2 | |
| 177 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 178 | 344601-7 | LOCK PLATE | 1 | |
| 179 | 317616-7 | PIN HOLDER | 1 | |
| 180 | 256158-5 | PIN 3 | 1 | |
| 181 | 324288-1 | LOCK PIN | 1 | |
| 182 | 231325-3 | COMPRESSION SPRING 6 | 1 | |
| 183 | 324289-9 | ROD 6 | 1 | |
| 184 | 416450-3 | LOCK LEVER | 1 | |
| 185 | 345272-3 | LOCK LEVER PLATE | 1 | |
| 186 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 187 | 231418-6 | COMPRESSION SPRING 9 | 1 | |
| 188 | 253731-2 | FLAT WASHER 8 | 1 | |
| 189 | 266432-3 | ADJUST BOLT M8X27 | 1 | |
| 190 | 273658-0 | GRIP 32 | 1 | |
| 191 | 286212-1 | CAP 20 | 5 | |
| 192 | 921472-5 | HEX. BOLT M8X50 | 1 | |
| 193 | 251887-5 | SCREW M6X10 | 2 | |
| 193-1 | 911318-3 | P.H.SCREW M6X14 WITH WR | 2 | |
| 194 | 140612-8 | BASE COMPLETE | 1 | |
| 194 | C10 | 816339-9 | MITER SCALE PLATE | 1 |
| 194 | C20 | 810486-8 | CAUTION LABEL | 1 |
| 195 | 344646-5 | SLIDE PLATE | 1 | |
| 196 | 344646-5 | SLIDE PLATE | 1 | |
| 197 | 240033-5 | FAN 57 | 1 | |
| A01 | 122571-8 | VICE ASS'Y | 1 | |
| A01 | C10 | 316938-2 | VISE ARM | 1 |
| A01 | C20 | 251887-5 | SCREW M6X10 | 1 |
| A01 | C30 | 322313-2 | VISE ROD | 1 |
| A01 | C40 | 265733-6 | THUMB SCREW M10X60 | 1 |
| A01 | C50 | 253804-1 | FLAT WASHER 6 | 1 |
| A01 | C60 | 343651-9 | VISE PLATE | 1 |
| A01 | C70 | 251370-2 | + PAN HEAD SCREW M5 | 1 |
| A02 | 122852-0 | DUST BAG ASS'Y | 1 | |
| A02 | C10 | 410602-8 | FASTENER | 1 |
| A03 | 762001-3 | TRIANGULAR RULE | 1 | |
| A04 | 322312-4 | HOLDER | 2 | |
| A05 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A06 | B-03850 | T.C.T.SAW BLADE 190X20X24 | 1 | |
| A07B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A08B | 196399-0 | BATTERY BL1840 SET | 2 | |
| A08-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A08-2B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A09B | 450128-8 | BATTERY COVER | 2 |
