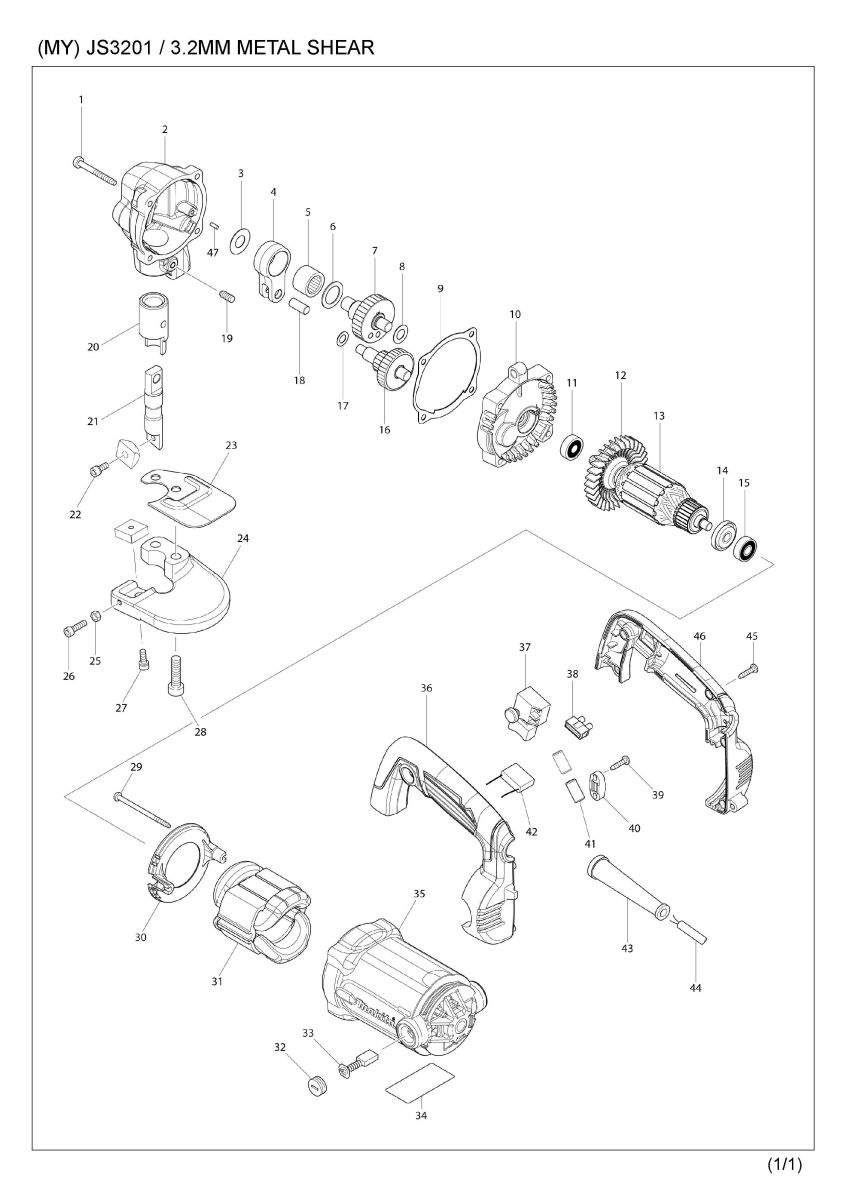

Part Diagram
Total: 59 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266056-5 | TAPPING SCREW 5X45 | 4 | |
| 2 | 141795-7 | GEAR HOUSING COMPLETE | 1 | |
| 2 | C10 | 800S40-0 | INDICATION LABEL | 1 |
| 3 | 253759-0 | FLAT WASHER 12 | 1 | |
| 4 | 331166-8 | ROD | 1 | |
| 5 | 212252-3 | NEEDLE BEARING 1816 | 1 | |
| 6 | 253198-4 | FLAT WASHER 18 | 1 | |
| 7 | 153141-2 | CRANK SHAFT COMPLETE | 1 | |
| 7 | C10 | 221879-8 | SPUR GEAR 41 | 1 |
| 7 | C20 | 254011-9 | WOODRUFF KEY 4 | 1 |
| 8 | 253311-4 | THIN WASHER 10 | 1 | |
| 009-1 | 442186-8 | GASKET | 1 | |
| 10 | 141796-5 | GEAR HOUSING COVER COMPLETE | 1 | |
| 10 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 11 | 211031-6 | BALL BEARING 608LLB | 1 | |
| 12 | 240094-5 | FAN 70 | 1 | |
| 13 | 513859-1 | ARMATURE ASS'Y 240V | 1 | |
| 13 | D10 | INC. 11,12,14,15 | ||
| 14 | 681644-1 | INSULATION WASHER | 1 | |
| 15 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 16 | 226058-3 | GEAR COMPLETE 18-46 | 1 | |
| 17 | 253215-0 | FLAT WASHER 8 | 1 | |
| 18 | 256118-7 | PIN 8 | 1 | |
| 19 | 913322-8 | SET SCREW M6X14 | 1 | |
| 20 | 321405-4 | METAL | 1 | |
| 21 | 321404-6 | BLADE HOLDER | 1 | |
| 22 | 922216-6 | HEX. SOCKET HEAD BOLT M5X14 | 1 | |
| 23 | 346641-1 | PROTECTOR | 1 | |
| 24 | 331165-0 | YOKE | 1 | |
| 25 | 931203-4 | HEX. NUT M5 | 1 | |
| 26 | 922227-1 | HEX. SOCKET HEAD BOLT M5X18 | 1 | |
| 27 | 922216-6 | HEX. SOCKET HEAD BOLT M5X14 | 1 | |
| 28 | 922452-4 | HEX. SOCKET HEAD BOLT M8X30 | 2 | |
| 29 | 266340-8 | TAPPING SCREW 4X65 | 2 | |
| 30 | 454140-0 | BAFFLE PLATE | 1 | |
| 31 | 525869-6 | FIELD ASS'Y 240V | 1 | |
| 31 | C10 | 654020-2 | RING TERMINAL | 2 |
| 31 | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 32 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | |
| 032-1 | 643515-0 | HOLDER CAP 7-11 | 2 | |
| 33 | 191963-2 | CARBON BRUSH CB-303 | 1 | |
| 34 | 814C79-1 | JS3201 NAME PLATE | 1 | |
| 35 | 158278-0 | MOTOR HOUSING COMPLETE | 1 | |
| 35 | C10 | 643708-9 | BRUSH HOLDER 5-11 | 2 |
| 36 | 187531-7 | HANDLE SET | 1 | |
| 36 | D10 | INC. 46 | ||
| 37 | 651284-9 | SWITCH SGEL115CDY-6 | 1 | |
| 39 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 40 | 687052-4 | STRAIN RELIEF | 1 | |
| 43 | 682540-6 | CORD GUARD 9.3-90 | 1 | |
| 043-1 | 682505-8 | CORD GUARD 10-90 | 1 | |
| 44 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 45 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 46 | 187531-7 | HANDLE SET | 1 | |
| 46 | D10 | INC. 36 | ||
| 47 | 256255-7 | PIN 3 | 1 | |
| A01 | 792287-5 | SHEAR BLADES SET | 1 | |
| A02 | 762007-1 | THICKNESS GAUGE | 1 | |
| A03 | 783202-0 | HEX. WRENCH 4 | 1 |
