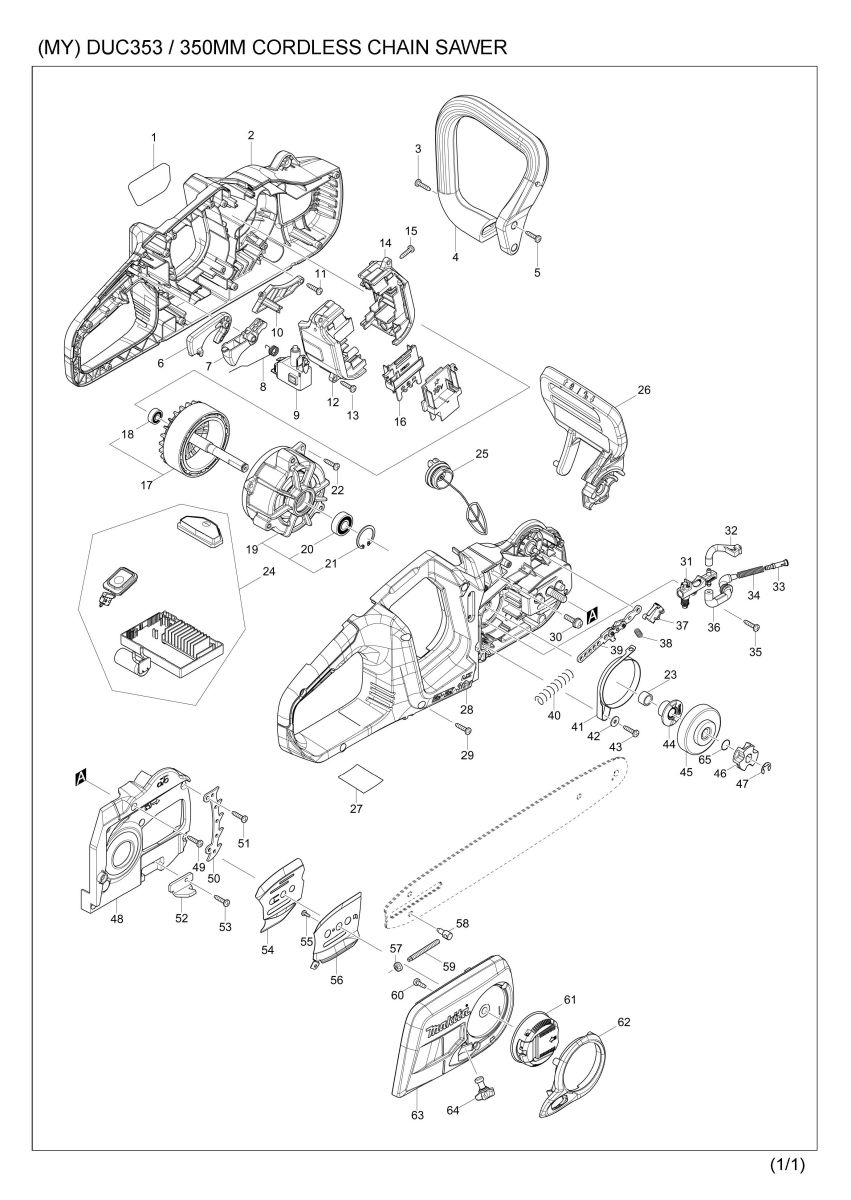

Part Diagram
Total: 97 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 810R17-1 | DUC353 MODEL NO. LABEL | 1 | |
| 2 | 183F59-9 | HOUSING SET | 1 | |
| 2 | C10 | 812D16-5 | CAUTION LABEL | 1 |
| 2 | D10 | INC. 28 | ||
| 002-1 | 183F59-9 | HOUSING SET | 1 | |
| 002-1 | C10 | 812D16-5 | CAUTION LABEL | 1 |
| 002-1 | D10 | INC. 28 | ||
| 3 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 4 | 457007-1 | FRONT HANDLE | 1 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 6 | 457013-6 | CATCH LEVER | 1 | |
| 7 | 457006-3 | SWITCH LEVER | 1 | |
| 8 | 232318-3 | TORSION SPRING 10 | 1 | |
| 9 | 650781-2 | SWITCH C3JW-6B-P | 1 | |
| 10 | 457010-2 | HOUSING L COVER | 1 | |
| 11 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 12 | 183F15-9 | TERMINAL BOX SET | 1 | |
| 12 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 12 | D10 | INC. 14 | ||
| 13 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 14 | 183F15-9 | TERMINAL BOX SET | 1 | |
| 14 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 14 | D10 | INC. 12 | ||
| 15 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 16 | 643874-2 | TERMINAL | 2 | |
| 17 | 519411-3 | ROTOR ASS'Y | 1 | |
| 17 | D10 | INC. 18 | ||
| 18 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 19 | 592H45-5 | STATOR ASS'Y | 1 | |
| 19 | D10 | INC. 20,21 | ||
| 20 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 21 | 962105-3 | RETAINING RING R-26 | 1 | |
| 22 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 23 | 257402-3 | SLEEVE 10 | 1 | |
| 24 | 144007-7 | CONTROLLER COMPLETE | 1 | |
| 25 | 168399-0 | TANKCAP COMPLETE | 1 | |
| 025-1 | 168508-1 | TANK CAP COMPLETE | 1 | |
| 025-1 | C10 | 213355-6 | O-RING 25 | 1 |
| 26 | 457022-5 | FRONT HAND GUARD | 1 | |
| 026-1 | 458418-3 | FRONT HAND GUARD | 1 | |
| 27 | 852V64-0 | DUC353 NAME PLATE | 1 | |
| 28 | 183F59-9 | HOUSING SET | 1 | |
| 28 | C10 | 812D16-5 | CAUTION LABEL | 1 |
| 28 | D10 | INC. 2 | ||
| 028-1 | 183F59-9 | HOUSING SET | 1 | |
| 028-1 | C10 | 812D16-5 | CAUTION LABEL | 1 |
| 028-1 | D10 | INC. 2 | ||
| 29 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 30 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 31 | 142156-4 | OIL PUMP COMPLETE | 1 | |
| 031-1 | 142156-4 | OIL PUMP COMPLETE | 1 | |
| 32 | 424904-6 | CONNECTOR B | 1 | |
| 33 | 452666-6 | NIPPLE | 1 | |
| 34 | 234207-8 | COMPRESSION SPRING 6 | 1 | |
| 35 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 36 | 424903-8 | CONNECTOR A | 1 | |
| 37 | 632H47-0 | SWITCH UNIT | 1 | |
| 037-1 | 632H47-0 | SWITCH UNIT | 1 | |
| 38 | 231298-0 | COMPRESSION SPRING 6 | 1 | |
| 39 | 163448-8 | LINKPLATE COMPLETE | 1 | |
| 40 | 232319-1 | COMPRESSION SPRING 9 | 1 | |
| 41 | 345454-7 | BRAKE BAND | 1 | |
| 42 | 267195-4 | FLAT WASHER 4 | 1 | |
| 43 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 043-1 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 44 | 221427-3 | WORM GEAR | 1 | |
| 45 | 161526-8 | BRAKE DRUM COMPLETE | 1 | |
| 045-1 | 161891-5 | BRAKE DRUM COMPLETE | 1 | |
| 46 | 221464-7 | SPROCKET 6 | 1 | |
| 47 | 961013-5 | STOP RING E-7 | 1 | |
| 48 | 457004-7 | HOUSING R COVER | 1 | |
| 49 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 50 | 347078-5 | SPIKE BUMPER | 1 | |
| 51 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 52 | 347079-3 | CHAIN CATCHER | 1 | |
| 53 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 54 | 346694-0 | GUIDE PLATE ES | 1 | |
| 55 | 266166-8 | TAPPING SCREW CT 3X8 | 1 | |
| 56 | 346699-0 | GUIDE PLATE CS | 1 | |
| 57 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 58 | 326310-0 | ADJUST PIN | 1 | |
| 59 | 326312-6 | ADJUST SCREW | 1 | |
| 60 | 266427-6 | TAPPING SCREW 4X12 | 3 | |
| 61 | 142235-8 | NUT COMPLETE | 1 | |
| 62 | 454519-5 | NUT COVER | 1 | |
| 63 | 457000-5 | SPROCKET COVER | 1 | |
| 64 | 142288-7 | WHEEL COMPLETE | 1 | |
| 64 | C10 | 213011-8 | O RING 7 | 1 |
| 65 | 213060-5 | O RING 10 | 1 | |
| A01 | 182229-1 | OIL SUPPLY 100CC | 1 | |
| A01-1 | 199897-3 | OIL VESSEL SET | 1 | |
| A02 | 165246-6 | GUIDE BAR 14 | 1 | |
| A02-1 | 165246-6 | GUIDE BAR 14 | 1 | |
| A03 | 419288-5 | CHAIN COVER | 1 | |
| A04 | 196741-5 | SAW CHAIN SET | 1 | |
| B01 | 191P53-7 | SPROCKET COVER SET | 1 | |
| B01 | D10 | INC. 55-64 |
