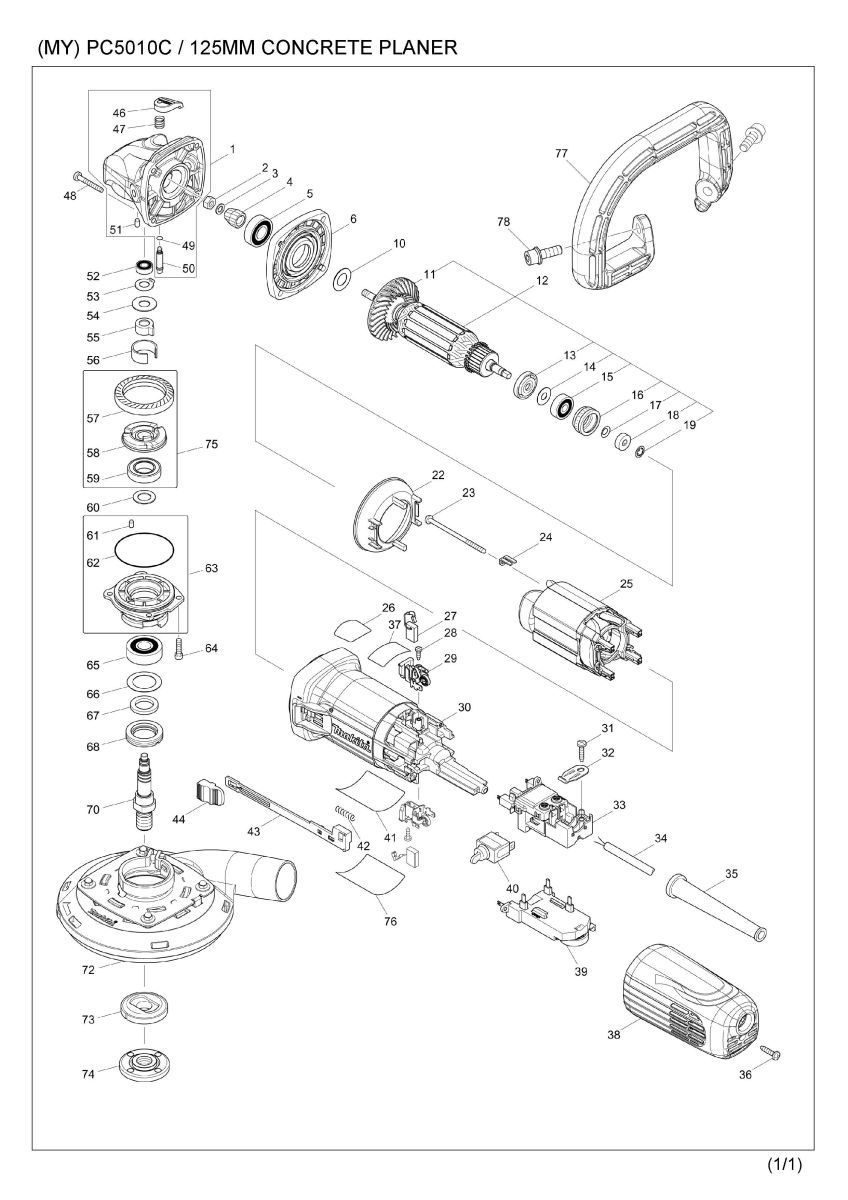

Part Diagram
Total: 79 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 136013-6 | GEAR HOUSING ASS'Y | 1 | |
| 1 | D10 | INC. 46,47,49-51 | ||
| 2 | 252186-8 | HEX. NUT M6 | 1 | |
| 3 | 253077-6 | FLAT WASHER 6 | 1 | |
| 4 | 227593-4 | SPIRAL BEVEL GEAR 9 | 1 | |
| 5 | 211142-7 | BALL BEARING 6001LLB | 1 | |
| 6 | 141981-0 | GEAR HOUSING COVER COMPLETE | 1 | |
| 10 | 253084-9 | FLAT WASHER 12 | 1 | |
| 11 | 240134-9 | FAN 60 | 1 | |
| 12 | 510377-0 | ARMATURE ASS'Y 220-240V | 1 | |
| 12 | D10 | INC. 11,13-19 | ||
| 13 | 681656-4 | INSULATION WASHER | 1 | |
| 14 | 253823-7 | FLAT WASHER 7 | 1 | |
| 15 | 210027-4 | BALL BEARING 627DDW | 1 | |
| 16 | 421738-8 | LABYRINTH RUBBER RING 22 | 1 | |
| 17 | 267756-0 | WAVE WASHER 6 | 1 | |
| 18 | 688117-5 | MAGNET SLEEVE | 1 | |
| 19 | 259039-2 | SELF LOCK 6 | 1 | |
| 22 | 453367-9 | BUFFLE PLATE | 1 | |
| 23 | 266258-3 | TAPPING SCREW 4X70 | 2 | |
| 24 | 344871-8 | RETAINER | 2 | |
| 25 | 626653-3 | FIELD 220-240V | 1 | |
| 26 | 898443-6 | SJS2 MARK LABEL | 1 | |
| 27 | 191978-9 | A.C. CARBON BRUSH CB-318 | 1 | |
| 28 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 2 | |
| 29 | 643770-4 | BRUSH HOLDER | 2 | |
| 30 | 453366-1 | MOTOR HOUSING | 1 | |
| 31 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 32 | 687169-3 | STRAIN RELIEF | 1 | |
| 33 | 632K99-9 | SWITCH BLOCK | 1 | |
| 34 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 35 | 682559-5 | CORD GUARD 8 | 1 | |
| 36 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 37 | 817M63-5 | INDICATION LABEL | 1 | |
| 38 | 453365-3 | REAR COVER C | 1 | |
| 39 | 620736-1 | CONTROLLER | 1 | |
| 40 | 651418-4 | SWITCH ST115A-40 | 1 | |
| 41 | 854S18-5 | PC5010C NAME PLATE | 1 | |
| 42 | 233071-4 | COMPRESSION SPRING 4 | 1 | |
| 43 | 453847-5 | SWITCH LEVER | 1 | |
| 44 | 453368-7 | SWITCH KNOB | 1 | |
| 46 | 453369-5 | PIN CAP | 1 | |
| 47 | 234057-1 | COMPRESSION SPRING 8 | 1 | |
| 48 | 266361-0 | TAPPING SCREW 4X30 | 4 | |
| 49 | 213032-0 | O RING 4 | 1 | |
| 50 | 256535-1 | SHOULDER PIN 6 | 1 | |
| 51 | 263002-9 | RUBBER PIN 4 | 1 | |
| 52 | 210006-2 | BALL BEARING 696ZZ | 1 | |
| 53 | 961005-4 | RETAINING RING S-9 | 1 | |
| 54 | 253180-3 | FLAT WASHER 10 | 1 | |
| 55 | 310683-1 | JOINT SLEEVE | 1 | |
| 56 | 346556-2 | C TYPE PLATE | 1 | |
| 57 | 227594-2 | SPIRAL BEVEL GEAR 41 | 1 | |
| 58 | 313228-4 | COUPLING | 1 | |
| 59 | 210302-8 | BALL BEARING 6903ZZ | 1 | |
| 60 | 253744-3 | FLAT WASHER 12 | 1 | |
| 61 | 263002-9 | RUBBER PIN 4 | 1 | |
| 62 | 213641-5 | O RING 51 | 1 | |
| 63 | 136012-8 | BEARING BOX ASSEMBLY | 1 | |
| 63 | D10 | INC. 61,62 | ||
| 64 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 4 | |
| 65 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 66 | 267279-8 | FLAT WASHER 21 | 1 | |
| 67 | 443124-3 | FELT RING 17 | 1 | |
| 68 | 285854-8 | BEARING RETAINER 20-33 | 1 | |
| 70 | 326130-2 | SPINDLE | 1 | |
| 72 | 195238-1 | 115/125MM DUST COVER K SET | 1 | |
| 72 | C10 | 265180-1 | PAN HEAD SCREW M5X16 | 1 |
| 072-1 | 127147-6 | 125MM DUST COVER K ASSY | 1 | |
| 072-1 | C10 | 265180-1 | PAN HEAD SCREW M5X16 | 1 |
| 73 | 224415-9 | INNER FLANGE 42 | 1 | |
| 74 | 224554-5 | LOCK NUT 14-45 | 1 | |
| 75 | 135556-5 | COUPLING ASS'Y | 1 | |
| 75 | D10 | INC. 57-59 | ||
| 76 | 892272-9 | CLEAR LABEL | 1 | |
| 77 | 458690-7 | LOOP HANDLE | 1 | |
| 78 | 922443-5 | H.S.H.BOLT M8X25 WITH WR | 2 | |
| A01 | 140B63-7 | STEEL CASE COMPLETE | 1 | |
| A02 | 782426-5 | LOCK NUT WRENCH 35 | 1 |
