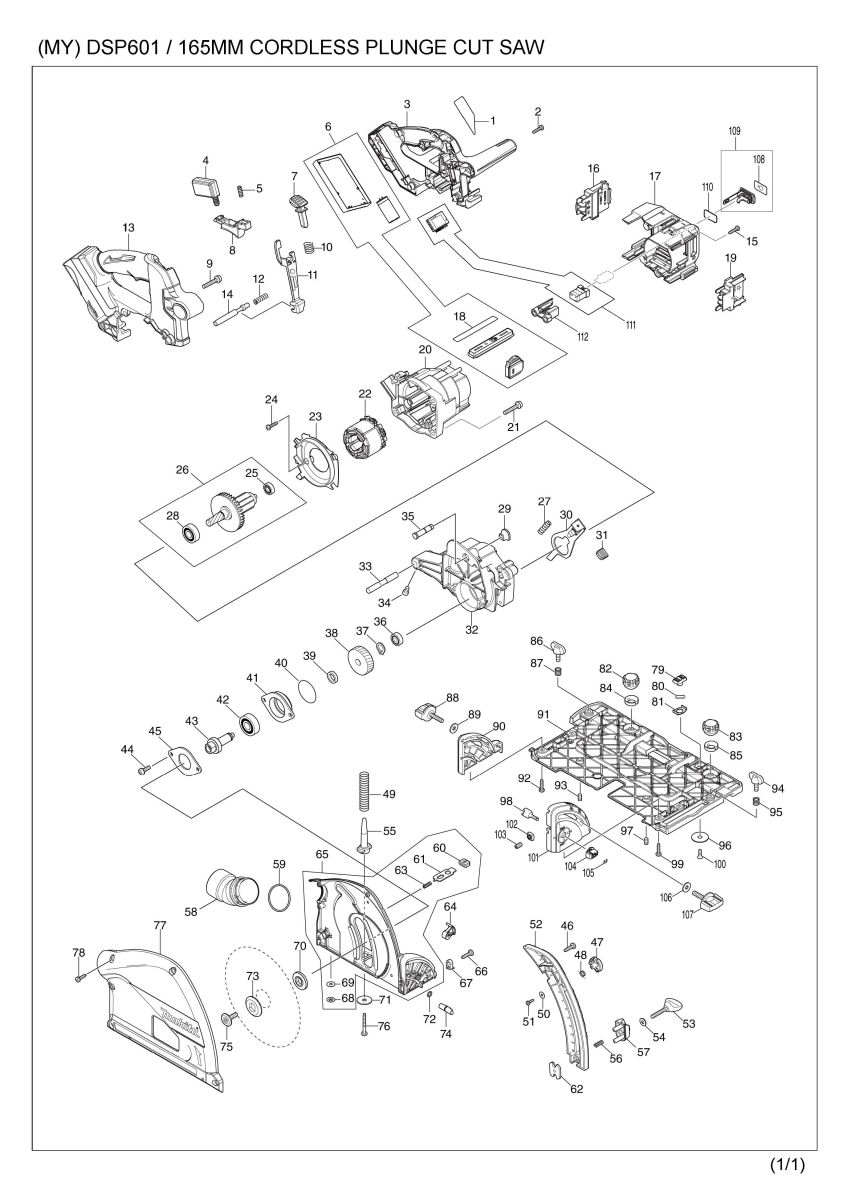

Part Diagram
Total: 164 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 853V15-6 | DSP601 NAME PLATE | 1 | |
| 002 | 265995-6 | TAPPING SCREW 4X18 | 8 | |
| 003 | 183H79-5 | HANDLE REAR COVER SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 13,17 | |||
| 004 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 005 | 234173-9 | COMPRESSION SPRING 4 | 1 | |
| 006A | 135915-3 | CONTROLLER ASS'Y | 1 | |
| C10 | 620691-7 | SUB CONTROLLER | 1 | |
| D10 | INC. 18 | |||
| 006-1A | 135974-7 | CONTROLLER ASSY | 1 | |
| C10 | 620691-7 | SUB CONTROLLER | 1 | |
| D10 | INC. 18 | |||
| 006-1B | 135974-7 | CONTROLLER ASSY | 1 | |
| C10 | 620691-7 | SUB CONTROLLER | 1 | |
| D10 | INC. 18 | |||
| 007 | 419629-5 | LOCK OFF BUTTON | 1 | |
| 008 | 457748-9 | SWITCH LEVER | 1 | |
| 009 | 911253-5 | PAN HEAD SCREW M5X30 | 2 | |
| 010 | 233089-5 | COMPRESSION SPRING 12 | 1 | |
| 011 | 457749-7 | LOCK PLATE | 1 | |
| 012 | 233267-7 | COMPRESSION SPRING 7 | 1 | |
| 013 | 183H79-5 | HANDLE REAR COVER SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 3,17 | |||
| 014 | 324709-3 | LOCK PIN 8 | 1 | |
| 015 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 016 | 643874-2 | TERMINAL | 1 | |
| 017 | 183H79-5 | HANDLE REAR COVER SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 3,13 | |||
| 018 | 813D03-7 | INDICATION LABEL | 1 | |
| 019 | 643874-2 | TERMINAL | 1 | |
| 020 | 457750-2 | MOTOR HOUSING | 1 | |
| 021 | 911253-5 | PAN HEAD SCREW M5X30 | 4 | |
| 022 | 629275-8 | STATOR | 1 | |
| 023 | 457751-0 | BAFFLE PLATE | 1 | |
| 024 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 025 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 026 | 519448-0 | ROTOR ASSY | 1 | |
| D10 | INC. 25,28 | |||
| 027 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 028 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 029 | 286040-4 | CAP | 1 | |
| 030 | 345742-2 | SHAFT LOCK | 1 | |
| 031 | 286039-9 | CAP | 1 | |
| 032 | 144586-5 | GEAR HOUSING COMPLETE | 1 | |
| C10 | 263002-9 | RUBBER PIN 4 | 1 | |
| 033A | 326960-1 | PIN 8 | 1 | |
| 033-1A | 324716-6 | PIN 8 | 1 | |
| 033-1B | 324716-6 | PIN 8 | 1 | |
| 033-2 | 327B66-0 | PIN 8 | 1 | |
| 034 | 265907-9 | HEX. SOCKET HEAD BOLT M5X10 | 1 | |
| 035 | 324708-5 | STOPPER PIN 8 | 1 | |
| 036 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 037 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 038 | 221548-1 | HELICAL GEAR 41 | 1 | |
| 039 | 257010-0 | RING 12 | 1 | |
| 040 | 213512-6 | O RING 39 | 1 | |
| 041 | 318088-9 | BEARING BOX | 1 | |
| 042 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 043 | 324707-7 | SPINDLE | 1 | |
| 044 | 911221-8 | PAN HEAD SCREW M5X16 | 2 | |
| 045 | 285689-7 | BEARING RETAINER 55 | 1 | |
| 046 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 047 | 419630-0 | LOCK LEVER | 1 | |
| 048 | 231665-9 | TORSION SPRING 7 | 1 | |
| 049 | 233479-2 | COMPRESSION SPRING 11 | 1 | |
| 050 | 253821-1 | FLAT WASHER 3 | 1 | |
| 051 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | |
| 052 | 457756-0 | DEPTH GUIDE | 1 | |
| 053 | 251867-1 | THUMB SCREW M5X30 | 1 | |
| 054 | 941101-4 | FLAT WASHER 5 | 1 | |
| 055 | 419624-5 | SPRING HOLDER | 1 | |
| 056 | 231372-4 | COMPRESSION SPRING 5 | 1 | |
| 057 | 419623-7 | STOPPER BLOCK | 1 | |
| 058 | 457752-8 | DUST NOZZLE | 1 | |
| 059 | 213460-9 | O RING 35 | 1 | |
| 060 | 286041-2 | CAP 14 | 2 | |
| 061 | 345747-2 | SPACER PLATE | 2 | |
| 062 | 345744-8 | NUT PLATE | 1 | |
| 063 | 233025-1 | COMPRESSION SPRING 2 | 2 | |
| 064 | 144867-7 | LEVER 20 COMPLETE | 1 | |
| C10 | 263002-9 | RUBBER PIN 4 | 1 | |
| 065A | 144868-5 | BLADE CASE COMPLETE | 1 | |
| D10 | INC. 60,61,63,68,69 | |||
| 065-1A | 140D56-6 | BLADE CASE COMPLETE | 1 | |
| D10 | INC. 60,61,63,68,69 | |||
| 065-1B | 140D56-6 | BLADE CASE COMPLETE | 1 | |
| D10 | INC. 60,61,63,68,69 | |||
| 066 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | |
| 067 | 419632-6 | POSITION PLATE | 1 | |
| 068 | 259008-3 | PUSH NUT 4 | 2 | |
| 069A | 253874-0 | FLAT WASHER 4 | 2 | |
| 069-1A | 347392-9 | PLATE | 2 | |
| 069-1B | 347392-9 | PLATE | 2 | |
| 070 | 224593-5 | INNER FLANGE 35 | 1 | |
| 071 | 253010-8 | FLAT WASHER 6 | 1 | |
| 072 | 213021-5 | O RING 5 | 1 | |
| 073 | 224409-4 | OUTER FLANGE 35 | 1 | |
| 074 | 324710-8 | PIN 8 | 1 | |
| 075 | 266403-0 | HEX. SOCKET HEAD BOLT M6 | 1 | |
| 076 | 266053-1 | TAPPING SCREW 4X35 | 1 | |
| 077A | 319605-8 | BLADE CASE COVER | 1 | |
| 077-1A | 319702-0 | BLADE CASE COVER | 1 | |
| 077-1B | 319702-0 | BLADE CASE COVER | 1 | |
| 078 | 266034-5 | TAPPING SCREW CT 4X16 | 5 | |
| 079 | 458092-7 | SLIDE LEVER | 1 | |
| 080 | 253932-2 | WAVE WASHER 10 | 1 | |
| 081 | 345977-5 | PLATE | 1 | |
| 082 | 265775-0 | THUMB SCREW M4X3 | 1 | |
| 083 | 265775-0 | THUMB SCREW M4X3 | 1 | |
| 084 | 419627-9 | HOLDER | 1 | |
| 085 | 419627-9 | HOLDER | 1 | |
| 086 | 265701-9 | THUMB SCREW M6X14 | 1 | |
| 087 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 088 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 089 | 253111-2 | FLAT WASHER 6 | 1 | |
| 090 | 419596-4 | REAR ANGULAR GUIDE | 1 | |
| 091 | 319604-0 | BASE | 1 | |
| 091-1 | 312B95-6 | BASE | 1 | |
| 092 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 093 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 1 | |
| 094 | 265701-9 | THUMB SCREW M6X14 | 1 | |
| 095 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 096 | 345748-0 | LOCK WASHER | 1 | |
| 097 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 1 | |
| 098 | 324731-0 | STOPPER PIN | 1 | |
| 099 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 100 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 1 | |
| 101 | 419595-6 | FRONT ANGULAR GUIDE | 1 | |
| 101-1 | 413A11-6 | FRONT ANGULAR GUIDE | 1 | |
| 102 | 252157-5 | SQUARE NUT M6 | 1 | |
| 103 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 1 | |
| 104 | 457963-5 | DIAL 22 | 1 | |
| 105 | 961017-7 | STOP RING E-3 | 1 | |
| 106 | 253111-2 | FLAT WASHER 6 | 1 | |
| 107 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 108 | 813T75-8 | CAP LABEL | 1 | |
| 108-1 | 818H48-4 | CAP LABEL | 1 | |
| 109A | 183H92-3 | CAP SET | 1 | |
| D10 | INC. 108 | |||
| 109B | 183J85-2 | CAP SET | 1 | |
| 109-1A | 183J85-2 | CAP SET | 1 | |
| D10 | INC. 108 | |||
| 109-1B | 140G30-2 | CAP COMPLETE | 1 | |
| 109-2A | 140G30-2 | CAP COMPLETE | 1 | |
| D10 | INC. 108 | |||
| 110A | 213275-4 | O RING 18 | 1 | |
| 110B | 213218-6 | O RING 16 | 1 | |
| 110-1A | 213218-6 | O RING 16 | 1 | |
| 110-1B | 213A05-9 | O-RING16 | 1 | |
| 110-2A | 213A05-9 | O-RING16 | 1 | |
| 111 | 620753-1 | SUB CONTROLLER | 1 | |
| 112 | 458038-3 | HOLDER | 1 | |
| 113A | 213045-1 | O-RING 6 | 2 | |
| A01A | B-57364 | TCT BLADE165X20X56TWOOD/MDF D | 1 | |
| A01-1A | B-57364 | TCT BLADE165X20X56TWOOD/MDF D | 1 | |
| A01-1B | B-57364 | TCT BLADE165X20X56TWOOD/MDF D | 1 | |
| A02 | 783203-8 | HEX. WRENCH 5 | 1 | |
| A03A | 198906-5 | WIRELESS UNIT SET | 1 | |
| A03-1A | 199393-1 | WIRELESS UNIT SET | 1 | |
| A03-2A | 199393-1 | WIRELESS UNIT SET | 1 | |
| A03-3A | 199393-1 | WIRELESS UNIT SET | 1 |
