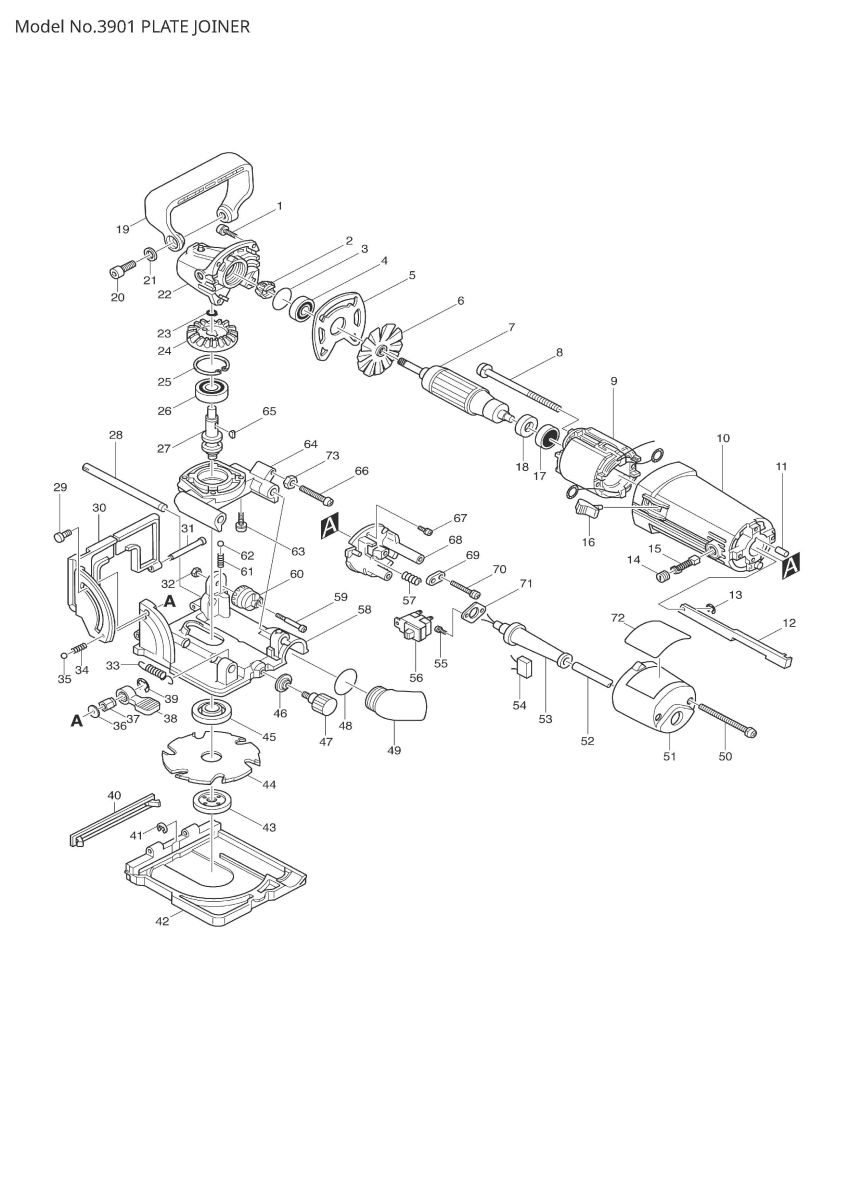

Part Diagram
Total: 105 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 911136-9 | PAN HEAD SCREW M4X20 | 4 | |
| 2 | 221357-8 | SPIRAL BEVEL GEAR 11 | 1 | |
| 3 | 213407-3 | O RING 26 | 1 | |
| 4 | 211088-7 | BALL BEARING 6000DDW | 1 | |
| 5 | 341398-9 | PLATE | 1 | |
| 6 | 241509-5 | FAN 60 | 1 | |
| 007D_ | 511909-6 | ARMATURE ASS'Y 240V | 1 | |
| 007D_ | D10 | INC. 6,17,18 | ||
| 8 | 911596-5 | PAN HEAD SCREW M4X70 | 2 | |
| 009D_ | 593139-1 | FIELD ASS'Y 240V | 1 | |
| 009D_ | C10 | 654100-4 | RING TERMINAL | 2 |
| 009D_ | C20 | 654501-6 | CONNECTOR P-1.25 | 2 |
| 10 | 159283-0 | MOTOR HOUSING COMPLETE | 1 | |
| 10 | C10 | 643932-4 | BRUSH HOLDER 6X9 | 2 |
| 10 | D10 | INC. 11 | ||
| 11 | 263002-9 | RUBBER PIN 4 | 1 | |
| 12 | 411328-5 | SWITCH ROD | 1 | |
| 13 | 257903-1 | STOP RING E-2.3 | 1 | |
| 14 | 643550-8 | BRUSH HOLDER CAP 5-8 | 2 | |
| 015B_ | 191940-4 | CARBON BRUSH CB-411 | 1 | |
| 16 | 414663-0 | SWITCH LEVER | 1 | |
| 017-1 | 210025-8 | BALL BEARING 627LLB | 1 | |
| 18 | 681614-0 | INSULATION WASHER | 1 | |
| 19 | 415253-2 | GRIP | 1 | |
| 20 | 922422-3 | HEX. SOCKET HEAD BOLT M8X16 | 2 | |
| 21 | 941202-8 | FLAT WASHER 8 | 2 | |
| 22 | 157393-7 | GEAR HOUSING COMPLETE | 1 | |
| 22 | C10 | 212005-0 | NEEDLE BEARING 810 | 1 |
| 22 | C20 | 231464-9 | COMPRESSION SPRING 5 | 1 |
| 22 | C30 | 256616-1 | PIN 5 | 1 |
| 22 | C40 | 343312-1 | CUP | 1 |
| 22 | D10 | INC. 3 | ||
| 23 | 961052-5 | RETAINING RING S-12 | 1 | |
| 24 | 221356-0 | SPIRAL BEVEL GEAR 36 | 1 | |
| 25 | 962151-6 | RETAINING RING R-32 | 1 | |
| 26 | 211106-1 | BALL BEARING 6201LLB | 1 | |
| 27 | 322658-8 | SPINDLE | 1 | |
| 28 | 322657-0 | ROD 10 | 2 | |
| 29 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | |
| 30 | 316494-2 | FENCE | 1 | |
| 31 | 256689-4 | PIN 4 | 2 | |
| 32 | 931102-0 | HEX. NUT M4 | 1 | |
| 33 | 231795-6 | TENSION SPRING 8 | 2 | |
| 34 | 231282-5 | COMPRESSION SPRING 2.4 | 1 | |
| 35 | 216001-0 | STEEL BALL 3.5 | 1 | |
| 36 | 253804-1 | FLAT WASHER 6 | 1 | |
| 37 | 252133-9 | HEX. NUT M6 | 1 | |
| 38 | 272229-0 | LEVER 40 | 1 | |
| 39 | 961014-3 | STOP RING E-8 | 1 | |
| 40 | 162163-1 | RUBBER FACING | 1 | |
| 41 | 961017-7 | STOP RING E-3 | 2 | |
| 42 | 316496-8 | BLADE COVER | 1 | |
| 43 | 224505-8 | LOCK NUT 10-40 | 1 | |
| 44 | 793382-4 | T.C.T. CUTTER BLADE 100-4 | 1 | |
| 044-1 | B-12924 | CUTTER 100MM-4 | 1 | |
| 044-2 | B-20644 | CUTTER 100MMX6T | 1 | |
| 044-3 | B-20644 | CUTTER 100MMX6T | 1 | |
| 45 | 224280-6 | INNER FLANGE 40 | 1 | |
| 46 | 232131-9 | LEAF SPRING | 1 | |
| 47 | 265716-6 | SCREW M5X10 | 1 | |
| 48 | 213008-7 | O RING 22.4 | 1 | |
| 49 | 415252-4 | DUST NOZZLE | 1 | |
| 50 | 911198-7 | PAN HEAD SCREW M4X70 | 2 | |
| 51 | 410190-5 | REAR COVER | 1 | |
| 052D_ | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 053A_ | 682502-4 | CORD GUARD 8-85 | 1 | |
| 55 | 911111-5 | PAN HEAD SCREW M4X10 WITH W | 2 | |
| 56 | 651601-3 | SWITCH SS106AY-2 | 1 | |
| 57 | 231223-1 | COMPRESSION SPRING 6 | 1 | |
| 58 | 316495-0 | BASE | 1 | |
| 59 | 265026-1 | + PAN HEAD SCREW M4 | 1 | |
| 60 | 316491-8 | STOPPER | 1 | |
| 61 | 231282-5 | COMPRESSION SPRING 2.4 | 1 | |
| 62 | 216001-0 | STEEL BALL 3.5 | 1 | |
| 63 | 911136-9 | PAN HEAD SCREW M4X20 | 4 | |
| 64 | 316493-4 | BEARING BOX | 1 | |
| 65 | 254002-0 | WOODRUFF KEY 3 | 1 | |
| 066-1 | 911267-4 | PAN HEAD SCREW M5X45 | 1 | |
| 67 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | |
| 68 | 410191-3 | SWITCH HOLDER | 1 | |
| 69 | 687001-1 | STRAIN RELIEF | 1 | |
| 70 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 71 | 687637-6 | SET PLATE | 1 | |
| 72 | 857433-8 | NAME PLATE 3901 | 1 | |
| 73 | 931203-4 | HEX. NUT M5 | 1 | |
| A01 | 921332-1 | HEX. BOLT M6X20 | 1 | |
| A02-1 | 316492-6 | CLAMP | 1 | |
| A03 | 150455-0 | ANGLE GUIDE COMPLETE | 1 | |
| A03 | C10 | 816274-1 | SCALE LABEL "MM" | 1 |
| A04 | 226217-9 | SPUR GEAR 16 | 1 | |
| A05 | 961017-7 | STOP RING E-3 | 1 | |
| A06 | 253186-1 | FLAT WASHER 7 | 1 | |
| A07 | 271415-0 | KNOB 20 | 1 | |
| A08 | 232130-1 | LEAF SPRING | 1 | |
| A09 | 253804-1 | FLAT WASHER 6 | 1 | |
| A10 | 252133-9 | HEX. NUT M6 | 1 | |
| A11 | 272229-0 | LEVER 40 | 1 | |
| A12 | 961014-3 | STOP RING E-8 | 1 | |
| A13 | 782401-1 | LOCK NUT WRENCH 20 | 1 | |
| A14 | 122474-6 | DUST BAG ASS'Y | 1 | |
| A14 | C10 | 410602-8 | FASTENER | 1 |
| A15-2 | 824540-2 | PLASTIC CARRYING CASE | 1 | |
| A16 | 415579-2 | SET PLATE 4 | 1 | |
| B01 | 122473-8 | ANGLE GUIDE ASS'Y | 1 | |
| B01 | D11 | INC. A01,A02,A03-A12 |
