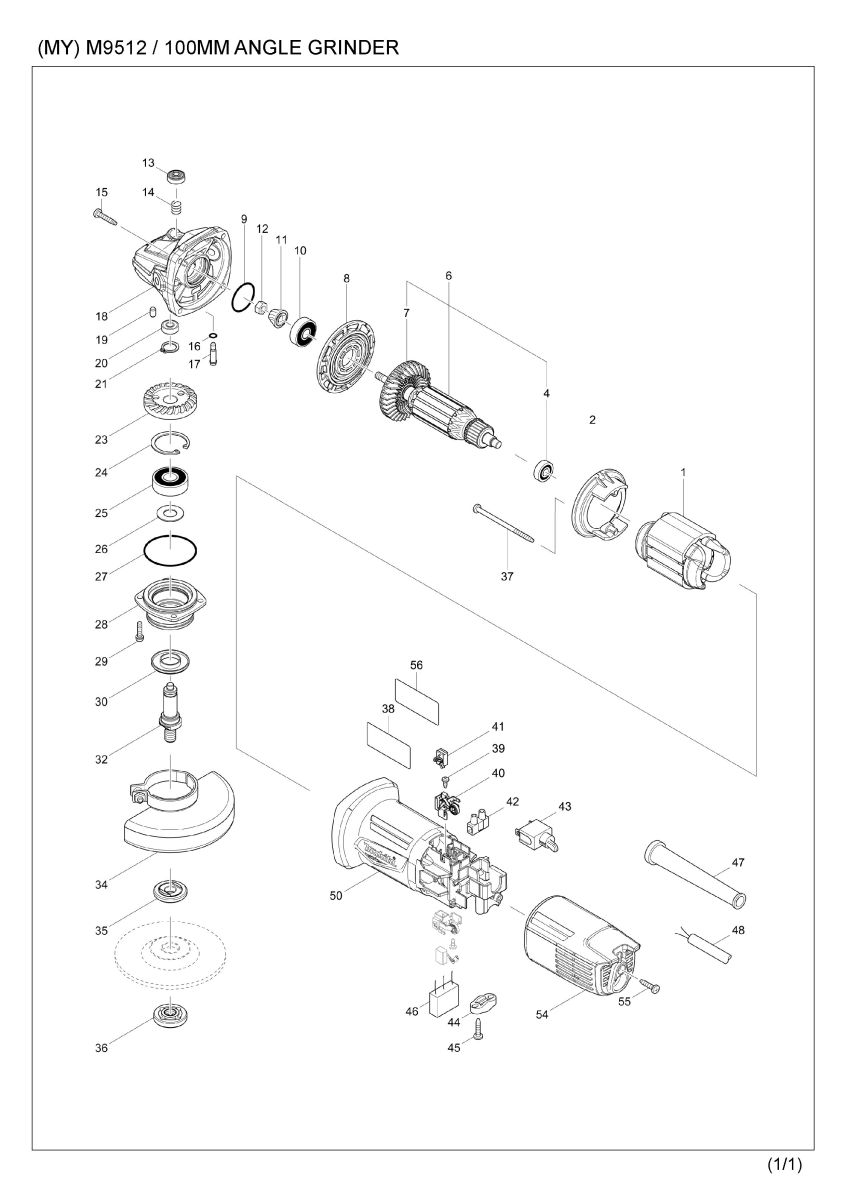

Part Diagram
Total: 82 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001A | 628390-5 | FIELD 220-240V | 1 | |
| 001B | 628390-5 | FIELD 220-240V | 1 | |
| 2 | 457130-2 | BAFFLE PLATE | 1 | |
| 004A | 210169-4 | BALL BEARING 607LLB | 1 | |
| 004-1B | 210169-4 | BALL BEARING 607LLB | 1 | |
| 006A | 513953-9 | ARMATURE ASS'Y 220-240V | 1 | |
| 006A | D10 | INC. 4,7 | ||
| 006-1A | 515553-1 | ARMATURE ASS'Y 220-240V | 1 | |
| 006-1A | D10 | INC. 4,7 | ||
| 006-2B | 515553-1 | ARMATURE ASS'Y 220-240V | 1 | |
| 006-2B | D10 | INC. 4,7 | ||
| 7 | 240076-7 | FAN 56 | 1 | |
| 8 | 457122-1 | BEARING RETAINER | 1 | |
| 009A | 213407-3 | O RING 26 | 1 | |
| 009-1A | 213445-5 | O-RING 26 | 1 | |
| 009-1B | 213445-5 | O-RING 26 | 1 | |
| 010A | 210125-4 | BALL BEARING 629DDW | 1 | |
| 010-1B | 210125-4 | BALL BEARING 629DDW | 1 | |
| 11 | 221475-2 | SPIRAL BEVEL GEAR 10 | 1 | |
| 12 | 252186-8 | HEX. NUT M6 | 1 | |
| 13 | 419589-1 | CAP | 1 | |
| 14 | 233376-2 | COMPRESSION SPRING 8 | 1 | |
| 015A | 266324-6 | TAPPING SCREW 4X22 | 4 | |
| 015-1A | 265651-8 | TAPPING SCREW 4X22 | 4 | |
| 015-1B | 265651-8 | TAPPING SCREW 4X22 | 4 | |
| 16 | 213960-9 | O RING 5 | 1 | |
| 17 | 268228-8 | SHOULDER PIN 5 | 1 | |
| 18 | 319487-8 | GEAR HOUSING | 1 | |
| 19 | 263002-9 | RUBBER PIN 4 | 1 | |
| 20 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 21 | 961052-5 | RETAINING RING S-12 | 1 | |
| 23 | 221476-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 24 | 257978-0 | RETAINING RING(INT)R-32 | 1 | |
| 25 | 211345-3 | BALL BEARING 6201DDW | 1 | |
| 26 | 267238-2 | FLAT WASHER 12 | 1 | |
| 27 | 213622-9 | O RING 45 | 1 | |
| 28 | 123847-6 | BEARING BOX ASSEMBLY | 1 | |
| 28 | D10 | INC. 27 | ||
| 29 | 265100-5 | PAN HEAD SCREW M4X16 | 4 | |
| 30 | 345464-4 | LABYRINTH RING | 1 | |
| 32 | 326828-1 | SPINDLE | 1 | |
| 34 | 123588-4 | WHEEL COVER 100MK ASSEMBLY | 1 | |
| 34 | C10 | 213589-1 | O-RING 4 | 1 |
| 034A | C20 | 911227-6 | PAN HEAD SCREW M5X18 | 1 |
| 034B | C20 | 911227-6 | PAN HEAD SCREW M5X18 | 1 |
| 035A | 224470-1 | INNER FRANGE 30 | 1 | |
| 035-1A | 224491-3 | INNER FLANGE 29 | 1 | |
| 035-1B | 224491-3 | INNER FLANGE 29 | 1 | |
| 036A | 224585-4 | LOCK NUT 10-30 | 1 | |
| 036-1A | 224493-9 | LOCK NUT 10-29 | 1 | |
| 036-1B | 224493-9 | LOCK NUT 10-29 | 1 | |
| 037A | 266325-4 | TAPPING SCREW 4X70 | 2 | |
| 037-1A | 265657-6 | TAPPING SCREW 4X70 | 2 | |
| 037-1B | 265657-6 | TAPPING SCREW 4X70 | 2 | |
| 38 | 853E52-8 | M9512 NAME PLATE | 1 | |
| 039A | 266492-5 | TAPPING SCREW 3X8 | 2 | |
| 039-1A | 265954-0 | TAPPING SCREW BIND PT3X8 | 2 | |
| 039-2A | 265683-5 | TAPPING SCREW BIND PT 3X8 | 2 | |
| 039-2B | 265683-5 | TAPPING SCREW BIND PT 3X8 | 2 | |
| 40 | 643716-0 | BRUSH HOLDER | 2 | |
| 41 | 194722-3 | CARBON BRUSH CB-459 | 1 | |
| 42 | 654532-5 | TERMINAL BLOCK 1P | 1 | |
| 43 | 651434-6 | SWITCH TN15-2 | 1 | |
| 44 | 687123-7 | STRAIN RELIEF | 1 | |
| 045A | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 045-1A | 265652-6 | TAPPING SCREW 4X18 | 2 | |
| 045-1B | 265652-6 | TAPPING SCREW 4X18 | 2 | |
| 47 | 682583-8 | CORD GUARD | 1 | |
| 048A | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 048-1B | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 050A | 457475-8 | MOTOR HOUSING | 1 | |
| 050-1A | 412222-4 | MOTOR HOUSING | 1 | |
| 050-1B | 412221-6 | MOTOR HOUSING | 1 | |
| 54 | 457483-9 | REAR COVER | 1 | |
| 055A | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 055-1A | 265652-6 | TAPPING SCREW 4X18 | 1 | |
| 055-1B | 265652-6 | TAPPING SCREW 4X18 | 1 | |
| 056A | 892295-7 | CLEAR LABEL | 1 | |
| 056-1A | 816X01-0 | CLEAR LABEL | 1 | |
| 056-1B | 816X01-0 | CLEAR LABEL | 1 | |
| A01 | 782420-7 | LOCK NUT WRENCH 20 | 1 | |
| A02 | 153489-2 | GRIP 36 COMPLETE | 1 |
