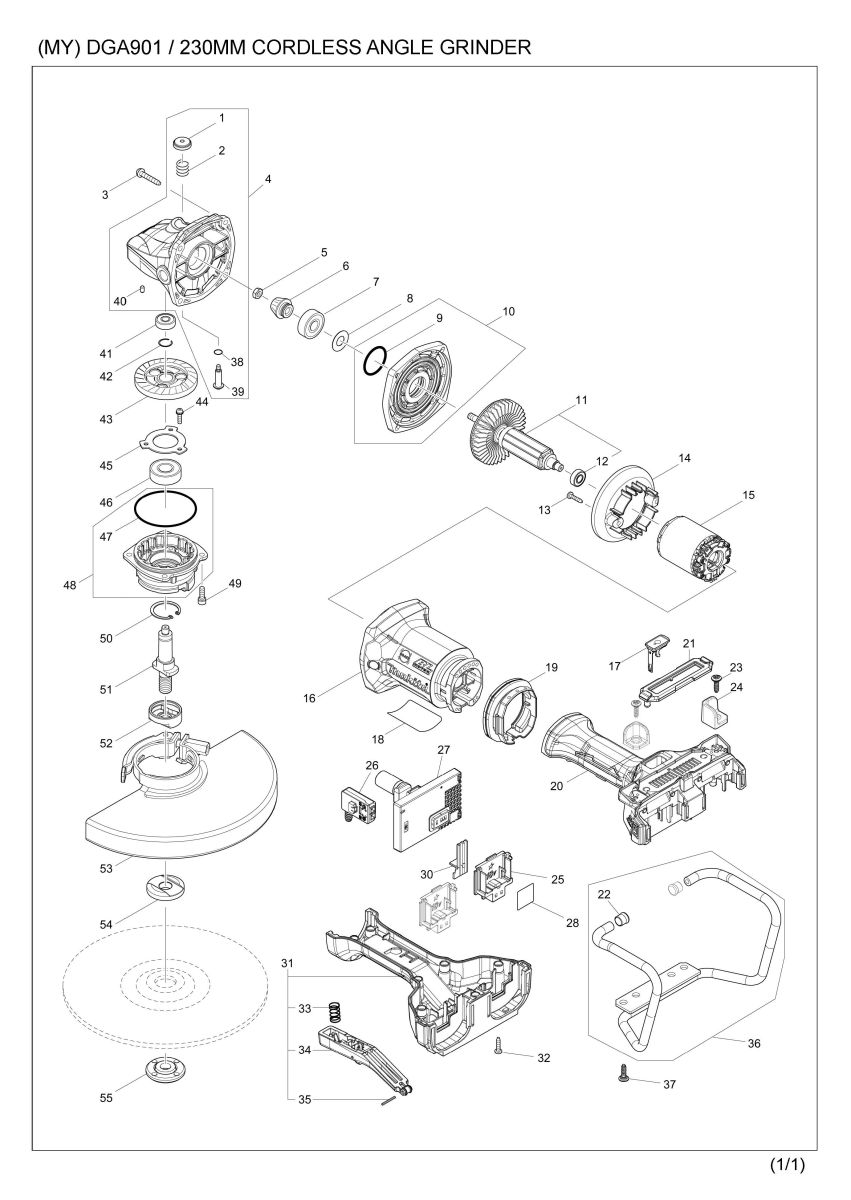

Part Diagram
Total: 84 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 451485-7 | PIN CAP | 1 | |
| 2 | 233089-5 | COMPRESSION SPRING 12 | 1 | |
| 3 | 266173-1 | TAPPING SCREW 5X30 | 4 | |
| 4 | 135918-7 | GEAR HOUSING ASS'Y | 1 | |
| 4 | D10 | INC. 1,2,38-40 | ||
| 5 | 264010-3 | HEX.NUT M7 | 1 | |
| 6 | 227563-3 | SPIRAL BEVEL GEAR 10B | 1 | |
| 7 | 211137-0 | BALL BEARING 6201LLU | 1 | |
| 8 | 253759-0 | FLAT WASHER 12 | 1 | |
| 9 | 213459-4 | O RING 32 | 1 | |
| 10 | 135916-1 | GEAR HOUSING COVER ASS'Y | 1 | |
| 10 | D10 | INC. 9 | ||
| 11 | 519436-7 | ROTOR ASS'Y | 1 | |
| 11 | D10 | INC. 12 | ||
| 011-1 | 519436-7 | ROTOR ASS'Y | 1 | |
| 011-1 | D10 | INC. 12 | ||
| 12 | 211166-3 | BALL BEARING 698DDW | 1 | |
| 13 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 14 | 457618-2 | BAFFLE PLATE | 1 | |
| 15 | 629376-2 | STATOR | 1 | |
| 16 | 457615-8 | MOTOR HOUSING | 1 | |
| 17 | 140F99-0 | CAP COMPLETE | 1 | |
| 17 | C10 | 213218-6 | O RING 16 | 1 |
| 17 | C20 | 818H07-8 | CAP LABEL | 1 |
| 18 | 854U99-1 | DGA901 NAME PLATE | 1 | |
| 19 | 457619-0 | VIBRATION PROOF RUBBER | 1 | |
| 20 | 136022-5 | HANDLE SWITCH LEVER ASS'Y | 1 | |
| 20 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 20 | D10 | INC. 31,33-35 | ||
| 020-1 | 136110-8 | HANDLE SWITCH LEVER ASS'Y | 1 | |
| 020-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 020-1 | D10 | INC. 31,33-35 | ||
| 21 | 457620-5 | DUST COVER | 1 | |
| 22 | 422230-7 | CAP | 2 | |
| 23 | 251587-7 | H.L.TAPPING SCREW 5X18 | 2 | |
| 24 | 327048-0 | PROTECTION BLOCK | 2 | |
| 024-1 | 347482-8 | PROTECTION BLOCK | 2 | |
| 25 | 644809-6 | TERMINAL | 2 | |
| 26 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 27 | 620987-6 | CONTROLLER COMPLETE | 1 | |
| 27 | C10 | 801H41-5 | INDICATION LABEL | 1 |
| 28 | 854V05-2 | DGA901 SERIAL NO. LABEL | 1 | |
| 30 | 457621-3 | LENS | 1 | |
| 31 | 136022-5 | HANDLE SWITCH LEVER ASS'Y | 1 | |
| 31 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 31 | D10 | INC. 20,33-35 | ||
| 031-1 | 136110-8 | HANDLE SWITCH LEVER ASS'Y | 1 | |
| 031-1 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 031-1 | D10 | INC. 20,33-35 | ||
| 32 | 265999-8 | TAPPING SCREW 4X25 | 7 | |
| 33 | 234357-9 | COMPRESSION SPRING 11 | 1 | |
| 34 | 144584-9 | SWITCH LEVER COMPLETE | 1 | |
| 35 | 951019-1 | SPRING PIN 2-20 | 1 | |
| 36 | 135919-5 | GUARD PIPE ASS'Y | 1 | |
| 36 | D10 | INC. 22 | ||
| 37 | 251587-7 | H.L.TAPPING SCREW 5X18 | 4 | |
| 38 | 213026-5 | O RING 7 | 1 | |
| 39 | 256516-5 | SHOULDER PIN 11 | 1 | |
| 40 | 263002-9 | RUBBER PIN 4 | 1 | |
| 41 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 42 | 233925-5 | RING SPRING 13 | 1 | |
| 43 | 227561-7 | SPIRAL BEVEL GEAR 49 | 1 | |
| 44 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | |
| 45 | 285851-4 | BEARING RETAINER | 1 | |
| 46 | 211241-5 | BALL BEARING 6202DDW | 1 | |
| 47 | 213720-9 | O RING 67 | 1 | |
| 48 | 135917-9 | BEARING BOX ASS'Y | 1 | |
| 48 | D10 | INC. 47 | ||
| 49 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | |
| 50 | 962151-6 | RETAINING RING R-32 | 1 | |
| 51 | 326963-5 | SPINDLE | 1 | |
| 52 | 310800-3 | LEAD FLANGE | 1 | |
| 53 | 122847-3 | TOOLLESS WHEEL COVER 230K | 1 | |
| 54 | 224447-6 | INNER FLANGE 42B | 1 | |
| 55 | 224485-8 | LOCK NUT 14-45 | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782407-9 | LOCK NUT WRENCH 35 | 1 | |
| A02-1 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| A03B | 821717-0 | PLASTIC CARRYING CASE | 1 | |
| A03B | C10 | 162271-8 | LATCH | 2 |
| A04B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A05-1B | 197280-8 | BATTERY BL1850B SET | 2 |
