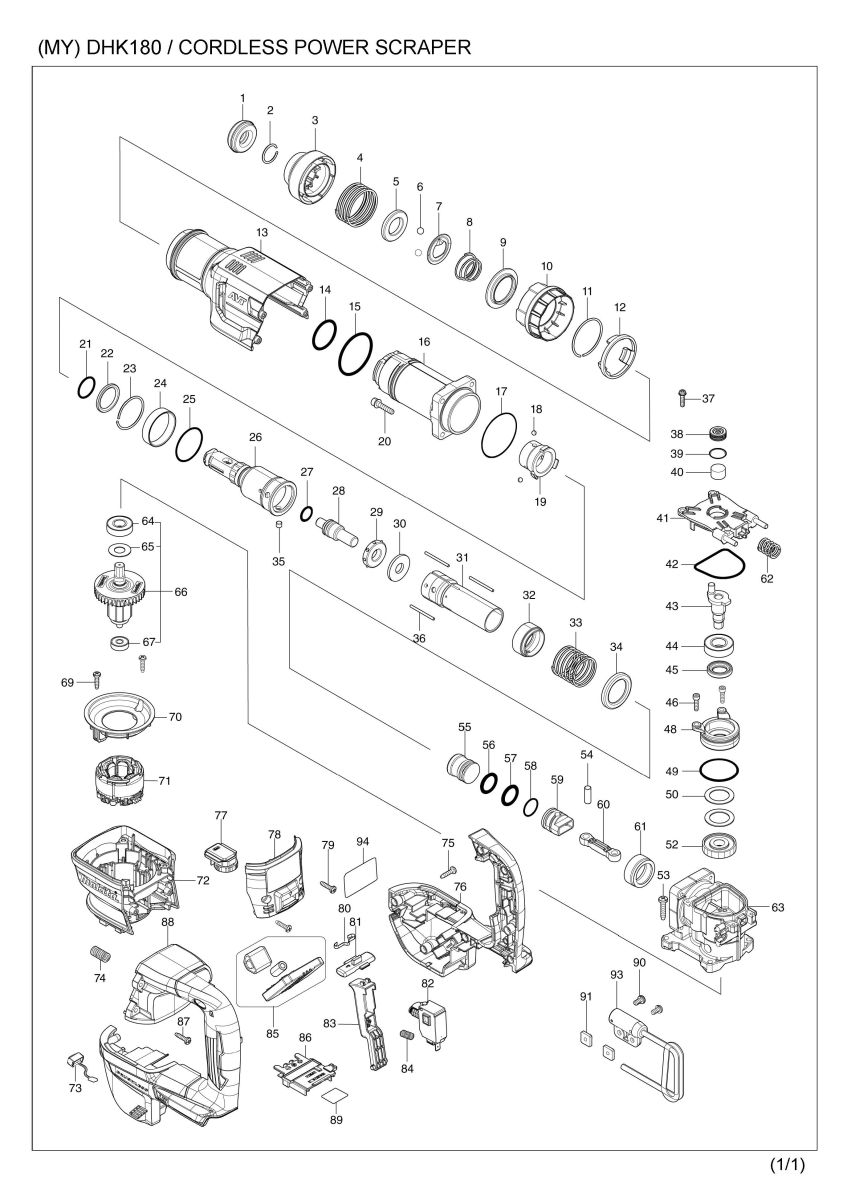

Part Diagram
Total: 105 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 286283-8 | CAP 38 | 1 | |
| 2 | 233966-1 | RING SPRING 19 | 1 | |
| 3 | 450275-5 | CHUCK COVER | 1 | |
| 4 | 234039-3 | COMPRESSION SPRING 42 | 1 | |
| 5 | 257288-5 | RING 21 | 1 | |
| 6 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 7 | 345873-7 | GUIDE WASHER | 1 | |
| 8 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 9 | 345874-5 | STEEL BALL GUIDE | 1 | |
| 10 | 450274-7 | CHANGE RING | 1 | |
| 11 | 231985-1 | RING SPRING 43 | 1 | |
| 12 | 459752-4 | SUPPORT RING | 1 | |
| 13 | 459748-5 | HOUSING COVER | 1 | |
| 14 | 213465-9 | O RING 31 | 1 | |
| 15 | 213617-2 | O RING 47 | 1 | |
| 16 | 319988-6 | BARREL | 1 | |
| 17 | 213606-7 | O RING 48 | 1 | |
| 18 | 216002-8 | STEEL BALL 4.8 | 3 | |
| 19 | 331796-5 | RING 25 | 1 | |
| 20 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 4 | |
| 21 | 213008-7 | O RING 22.4 | 1 | |
| 22 | 262142-0 | URETHAN RING 26 | 1 | |
| 23 | 233956-4 | RING SPRING 37 | 1 | |
| 24 | 257296-6 | RING 39 | 1 | |
| 25 | 213142-3 | O-RING 35 | 1 | |
| 26 | 324837-4 | TOOL HOLDER | 1 | |
| 27 | 213128-7 | O RING 12 | 1 | |
| 28 | 324844-7 | IMPACT BOLT | 1 | |
| 29 | 424065-2 | RUBBER RING 13 | 1 | |
| 30 | 267363-9 | FLAT WASHER 12 | 1 | |
| 31 | 326814-2 | CYLINDER | 1 | |
| 32 | 326813-4 | RING 29 | 1 | |
| 33 | 234041-6 | COMPRESSION SPRING 32 | 1 | |
| 34 | 345872-9 | CUP WASHER 29 | 1 | |
| 35 | 268226-2 | PIN 6 | 3 | |
| 36 | 256862-6 | ROD 2.5 | 3 | |
| 37 | 911133-5 | PAN HEAD SCREW M4X18 | 4 | |
| 38 | 419988-7 | FILTER CAP | 1 | |
| 39 | 213218-6 | O RING 16 | 1 | |
| 40 | 443129-3 | FILTER | 1 | |
| 41 | 459746-9 | CRANK CAP | 1 | |
| 42 | 424067-8 | SEAL RING | 1 | |
| 43 | 324845-5 | CRANK SHAFT | 1 | |
| 44 | 211232-6 | BALL BEARING 6002LLU | 1 | |
| 45 | 213219-4 | OIL SEAL 15 | 1 | |
| 46 | 265490-6 | HEX. SOCKET HEAD BOLT M4X16 | 2 | |
| 48 | 318202-7 | BEARING BOX | 1 | |
| 49 | 213513-4 | O RING 39 | 1 | |
| 50 | 267126-3 | FLAT WASHER 22 | 2 | |
| 52 | 226675-9 | HELICAL GEAR 36 | 1 | |
| 53 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 54 | 256087-2 | PIN 7 | 1 | |
| 55 | 324847-1 | STRIKER | 1 | |
| 56 | 213283-5 | O-RING 18 | 1 | |
| 57 | 213283-5 | O-RING 18 | 1 | |
| 58 | 213262-3 | O RING 18 | 1 | |
| 59 | 450298-3 | PISTON | 1 | |
| 60 | 450278-9 | CONNECTING ROD | 1 | |
| 61 | 331797-3 | SLEEVE 29 | 1 | |
| 62 | 232560-6 | COMPRESSION SPRING 12 | 1 | |
| 63 | 158523-3 | CRANK HOUSING COMPLETE | 1 | |
| 63 | C10 | 213415-4 | O RING 28 | 1 |
| 64 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 65 | 253748-5 | FLAT WASHER 12 | 1 | |
| 66 | 519589-2 | ROTOR ASSY | 1 | |
| 66 | D10 | INC. 64,65,67 | ||
| 67 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 69 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 70 | 459749-3 | BAFFLE PLATE | 1 | |
| 71 | 629451-4 | STATOR | 1 | |
| 72 | 459747-7 | MOTOR HOUSING | 1 | |
| 73 | 620936-3 | LED CIRCUIT | 1 | |
| 74 | 232411-3 | COMPRESSION SPRING 8 | 1 | |
| 75 | 265995-6 | TAPPING SCREW 4X18 | 7 | |
| 76 | 183N36-9 | HOUSING SET | 1 | |
| 76 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 76 | D10 | INC. 88 | ||
| 77 | 620796-3 | DIAL CIRCUIT | 1 | |
| 78 | 140M96-8 | MOTOR HOUSING COVER COMPLETE | 1 | |
| 79 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 80 | 232152-1 | LEAF SPRING | 1 | |
| 81 | 459751-6 | TRIGGER LOCK | 1 | |
| 82 | 651399-2 | SWITCH C3JW-6B-PA | 1 | |
| 83 | 459750-8 | SWITCH LEVER | 1 | |
| 84 | 232561-4 | COMPRESSION SPRING 5 | 1 | |
| 85 | 620C18-9 | CONTROLLER | 1 | |
| 86 | 643874-2 | TERMINAL | 1 | |
| 87 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 88 | 183N36-9 | HOUSING SET | 1 | |
| 88 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 88 | D10 | INC. 76 | ||
| 89 | 856L09-0 | DHK180 SERIAL NO. LABEL | 1 | |
| 90 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | |
| 91 | 264002-2 | SQUARE NUT M5 | 2 | |
| 93 | 127344-4 | HOOK ASS'Y | 1 | |
| 94 | 856L02-4 | DHK180 NAME PLATE | 1 | |
| A01B | 821552-6 | CONNECTOR PLASTIC CASE (TYPE4) | 1 | |
| A01B | C10 | 453974-8 | LATCH | 4 |
| A02B | 835D35-4 | INNER TRAY | 1 | |
| A03B | 8006H0-0 | DHK180RTJ PLASTIC CASE LABEL | 2 | |
| A04B | 8006G9-5 | DHK180RTJ INDICATION LABEL | 1 | |
| A05B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A06B | 450128-8 | BATTERY COVER | 1 | |
| A07B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A07B | D10 | COMPO-PARTS |
