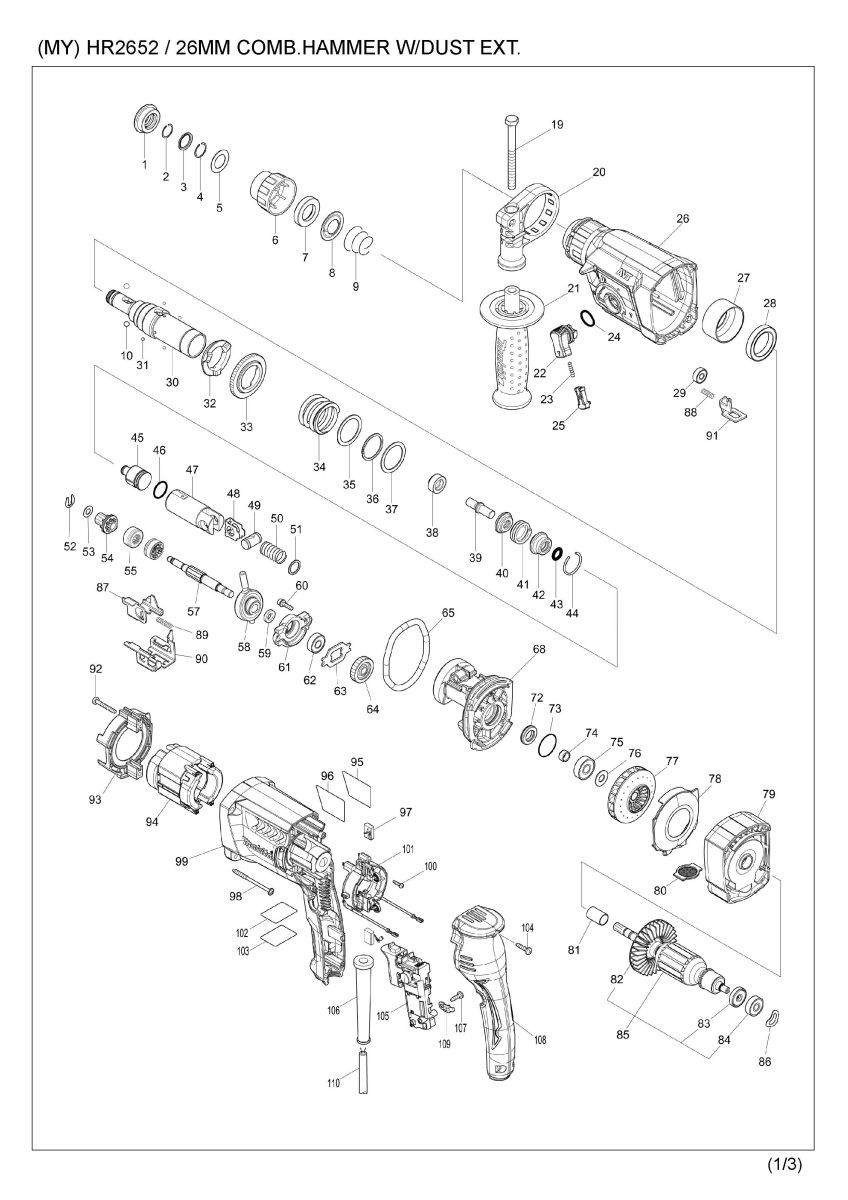

Part Diagram
Total: 166 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 286288-8 | CAP 35 | 1 | |
| 2 | 233989-9 | RING SPRING 14 | 1 | |
| 3 | 346834-0 | WASHER 16 | 1 | |
| 4 | 233992-0 | RING SPRING 15 | 1 | |
| 5 | 267114-0 | FLAT WASHER 17 | 1 | |
| 6 | 455393-4 | CHUCK COVER | 1 | |
| 7 | 325813-1 | RING 21 | 1 | |
| 8 | 346177-0 | GUIDE WASHER | 1 | |
| 9 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 10 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 19 | 266745-2 | HEX.BOLT M8X90 | 1 | |
| 20 | 453129-5 | GRIP BASE | 1 | |
| 21 | 158057-6 | GRIP 36 COMPLETE | 1 | |
| 21 | C10 | 931402-8 | HEX. NUT M8 | 1 |
| 22 | 161656-5 | CHANGE LEVER COMPLETE | 1 | |
| 23 | 234264-6 | COMPRESSION SPRING 3 | 1 | |
| 24 | 213278-8 | O RING 17 | 1 | |
| 25 | 457709-9 | LOCK BUTTON | 1 | |
| 26 | 140C99-2 | GEAR HOUSING COMPLETE | 1 | |
| 26 | C10 | 213636-8 | OIL SEAL 25 | 1 |
| 27 | 331890-3 | CUP SLEEVE | 1 | |
| 28 | 211294-4 | BALL BEARING 6806LLU | 1 | |
| 29 | 210028-2 | BALL BEARING 606ZZ | 1 | |
| 30 | 142973-2 | TOOL HOLDER COMPLETE | 1 | |
| 30 | C10 | 213344-1 | OIL SEAL 9 | 1 |
| 31 | 216019-1 | STEEL BALL 3 | 4 | |
| 32 | 332139-4 | DRIVING FLANGE | 1 | |
| 33 | 227360-7 | SPUR GEAR 51 | 1 | |
| 34 | 234148-8 | COMPRESSION SPRING 31 | 1 | |
| 35 | 267153-0 | FLAT WASHER 30 | 1 | |
| 36 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | |
| 37 | 267153-0 | FLAT WASHER 30 | 1 | |
| 38 | 325782-6 | SLEEVE 9A | 1 | |
| 39 | 325789-2 | IMPACT BOLT A | 1 | |
| 40 | 325794-9 | RING 10A | 1 | |
| 41 | 424267-0 | CUSHION RING 12 | 1 | |
| 42 | 325798-1 | O-RING CASE A | 1 | |
| 43 | 213073-6 | O RING 9 | 1 | |
| 44 | 233979-2 | RING SPRING 28 | 1 | |
| 45 | 325784-2 | STRIKER | 1 | |
| 46 | 213258-4 | O RING 17.5 | 1 | |
| 47 | 310345-1 | PISTON CYLINDER | 1 | |
| 48 | 346036-8 | GUIDE PLATE | 1 | |
| 49 | 324215-8 | PISTON JOINT | 1 | |
| 50 | 234098-7 | COMPRESSION SPRING 14 | 1 | |
| 51 | 267447-3 | FLAT WASHER 14 | 1 | |
| 52 | 257336-0 | STOP RING EXT U-6 | 1 | |
| 53 | 253186-1 | FLAT WASHER 7 | 1 | |
| 54 | 227359-2 | SPUR GEAR 10 | 1 | |
| 55 | 332125-5 | CLUTCH CAM | 2 | |
| 57 | 326448-1 | CAM SHAFT | 1 | |
| 58 | 219014-0 | SWASH BEARING 10 | 1 | |
| 59 | 257321-3 | RING 8 | 1 | |
| 60 | 266437-3 | HEX. SOCKET HEAD BOLT M4X16 | 2 | |
| 61 | 310344-3 | BEARING BOX | 1 | |
| 62 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 63 | 285735-6 | BEARING RETAINER | 1 | |
| 64 | 227719-8 | HELICAL GEAR 26 | 1 | |
| 65 | 213728-3 | O-RING 68 | 1 | |
| 68 | 141572-7 | INNER HOUSING COMPLETE | 1 | |
| 72 | 213678-2 | OIL SEAL 12 | 1 | |
| 73 | 213407-3 | O RING 26 | 1 | |
| 74 | 262569-4 | SLEEVE 9 | 1 | |
| 75 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 76 | 253733-8 | FLAT WASHER 9 | 1 | |
| 77 | 240182-8 | FAN 65 | 1 | |
| 78 | 457711-2 | BAFFLE PLATE | 1 | |
| 79 | 457710-4 | FAN HOUSING | 1 | |
| 80 | 457713-8 | FILTER PLATE | 1 | |
| 81 | 262184-4 | SLEEVE 10 | 1 | |
| 82 | 240121-8 | FAN 65 | 1 | |
| 83 | 681652-2 | INSULATION WASHER | 1 | |
| 84 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 85 | 515424-2 | ARMATURE ASSY 240V | 1 | |
| 85 | D10 | INC. 82-84 | ||
| 86 | 267804-5 | WAVE WASHER 15 | 1 | |
| 87 | 347230-5 | CHANGE PLATE B | 1 | |
| 88 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 89 | 234343-0 | COMPRESSION SPRING 5 | 1 | |
| 90 | 347229-0 | CHANGE PLATE A | 1 | |
| 91 | 347228-2 | LOCK PLATE | 1 | |
| 92 | 266361-0 | TAPPING SCREW 4X30 | 2 | |
| 93 | 451527-7 | BAFFLE PLATE | 1 | |
| 94 | 628393-9 | FIELD | 1 | |
| 95 | 819389-3 | CLEAR LABEL | 1 | |
| 96 | 855J95-6 | HR2652 NAME PLATE | 1 | |
| 97 | 194074-2 | CARBON BRUSH CB-325 | 1 | |
| 98 | 266334-3 | TAPPING SCREW 4X60 | 4 | |
| 99 | 451536-6 | MOTOR HOUSING | 1 | |
| 100 | 266556-5 | TAPPING SCREW 3X12 | 2 | |
| 101 | 632K38-9 | BRUSH HOLDER UNIT | 1 | |
| 102 | 855J99-8 | HR2652 SERIAL NO. LABEL | 1 | |
| 103 | 819390-8 | CLEAR LABEL | 1 | |
| 104 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 105 | 650626-4 | SWITCH TG853TB-1 | 1 | |
| 106 | 682566-8 | CORD GUARD 10 | 1 | |
| 107 | 266385-6 | TAPPING SCREW 4X14 | 1 | |
| 108 | 451528-5 | HANDLE COVER | 1 | |
| 109 | 687682-1 | STRAIN RELIEF | 1 | |
| 110 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |

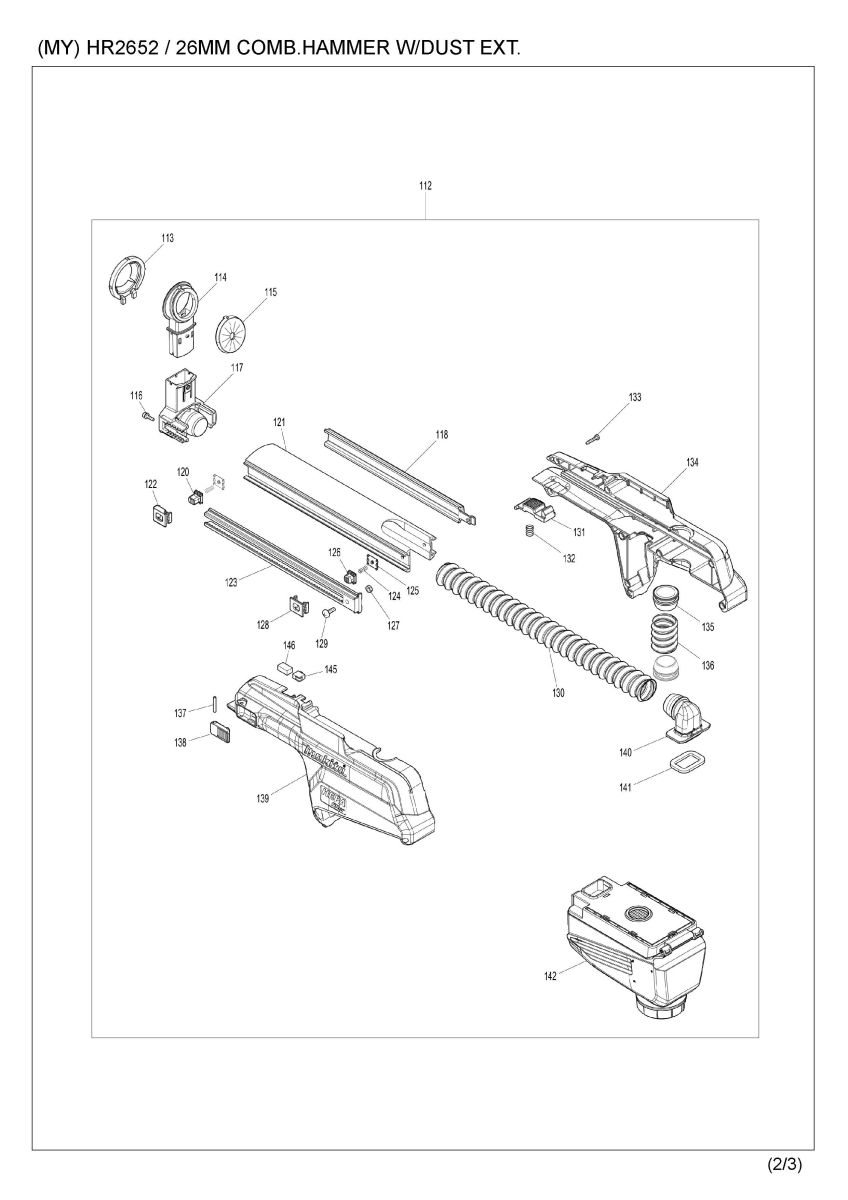

| 112 | 127185-8 | DUST COLLECTION SYSTEM | 1 | |
| 112 | D10 | INC. 113-118,120-142,145,146 | ||
| 113 | 424722-2 | FITTING RUBBER | 1 | |
| 114 | 455736-0 | COLLECTOR | 1 | |
| 115 | 424474-5 | SEALING CAP | 1 | |
| 116 | 251568-1 | H.S.H.BOLT M3X12 WITH WR | 2 | |
| 117 | 457730-8 | COLLECTOR BASE A | 1 | |
| 118 | 457723-5 | PIPE COVER | 1 | |
| 120 | 457718-8 | PUSH BUTTON B | 1 | |
| 121 | 326988-9 | SLIDE PIPE | 1 | |
| 122 | 457728-5 | STOPPER BASE B | 1 | |
| 123 | 457722-7 | RACK GUIDE | 1 | |
| 124 | 232386-6 | COMPRESSION SPRING 4 | 2 | |
| 125 | 457721-9 | SPRING PLATE | 2 | |
| 126 | 457717-0 | PUSH BUTTON A | 1 | |
| 127 | 931102-0 | HEX. NUT M4 | 1 | |
| 128 | 457719-6 | STOPPER BASE A | 1 | |
| 129 | 251314-2 | + SCREW M4X12 | 1 | |
| 130 | 245045-3 | HOSE 30 | 1 | |
| 131 | 458668-0 | LOCK LEVER | 1 | |
| 132 | 231316-4 | COMPRESSION SPRING 7 | 1 | |
| 133 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 134 | 183K50-7 | HOUSING SET | 1 | |
| 134 | D10 | INC. 139 | ||
| 135 | 457712-0 | JOINT SLEEVE | 2 | |
| 136 | 245047-9 | HOSE 30 | 1 | |
| 136-1 | 245042-9 | HOSE 30 C | 1 | |
| 137 | 256158-5 | PIN 3 | 1 | |
| 138 | 457720-1 | PUSH LEVER | 1 | |
| 139 | 183K50-7 | HOUSING SET | 1 | |
| 139 | D10 | INC. 134 | ||
| 140 | 457724-3 | INNER PIPE | 1 | |
| 141 | 457725-1 | SPONGE SHEET B | 1 | |

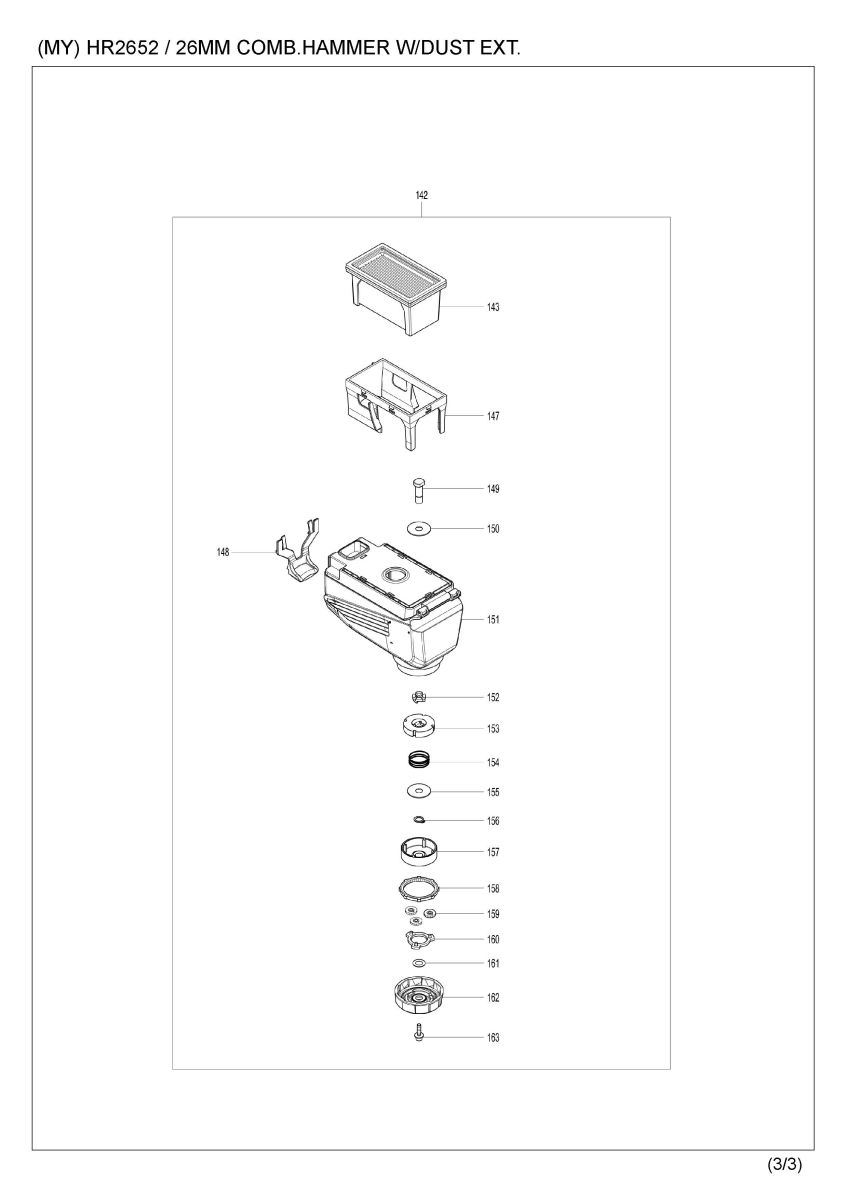

| 142 | 199586-0 | DUST CASE SET | 1 | |
| 142 | D10 | INC. 143,147-163 | ||
| 143 | 199557-7 | FILTER SET | 1 | |
| 145 | 458687-6 | STOPPER | 1 | |
| 146 | 422315-9 | DAMPER | 1 | |
| 147 | 457727-7 | FILTER GUARD | 1 | |
| 148 | 453148-1 | RELEASE LEVER | 1 | |
| 149 | 327221-2 | SHAFT | 1 | |
| 150 | 253431-4 | FLAT WASHER 8 | 1 | |
| 151 | 140G88-1 | DUST CASE COMPLETE | 1 | |
| 151 | C10 | 256533-5 | ROD 2.5 | 1 |
| 151 | C20 | 423426-3 | SPONGE SHEET A | 1 |
| 151 | C30 | 457726-9 | FILTER BASE | 1 |
| 152 | 310918-0 | CAM | 1 | |
| 153 | 310919-8 | HAMMER | 1 | |
| 154 | 232482-0 | COMPRESSION SPRING 21 | 1 | |
| 155 | 253431-4 | FLAT WASHER 8 | 1 | |
| 156 | 961004-6 | RETAINING RING S-8 | 1 | |
| 157 | 226856-5 | SUPER GEAR 17 | 1 | |
| 158 | 226857-3 | INTERNAL GEAR 49 | 1 | |
| 159 | 226855-7 | SUPER GEAR 15 | 3 | |
| 160 | 140F90-8 | CARRIER COMPLETE | 1 | |
| 161 | 253430-6 | FLAT WASHER 8 | 1 | |
| 162 | 140H88-7 | DIAL COMPLETE | 1 | |
| 162 | C10 | 422431-7 | SPONGE SHEET | 1 |
| 163 | 922129-1 | H.S.H.BOLT M4X16 WITH WG | 1 | |
| A01 | 324219-0 | DEPTH GAUGE | 1 | |
| A02 | 424474-5 | SEALING CAP | 5 | |
| A03 | 821781-1 | PLASTIC CASE | 1 | |
| A03 | C10 | 162302-3 | LATCH | 2 |
| B01 | 196968-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 2 |
| B01 | D10 | INC. 1,2,4,10,41,43,44,46,97 |
