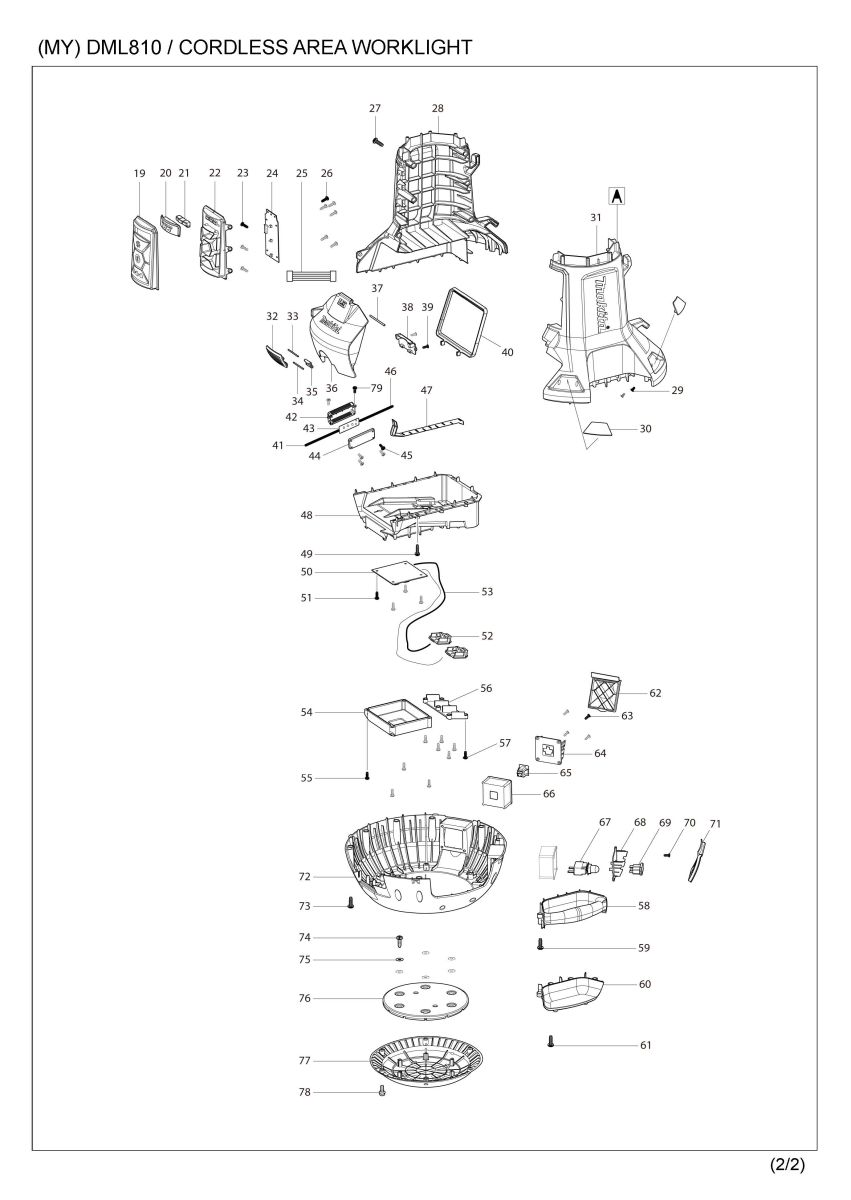

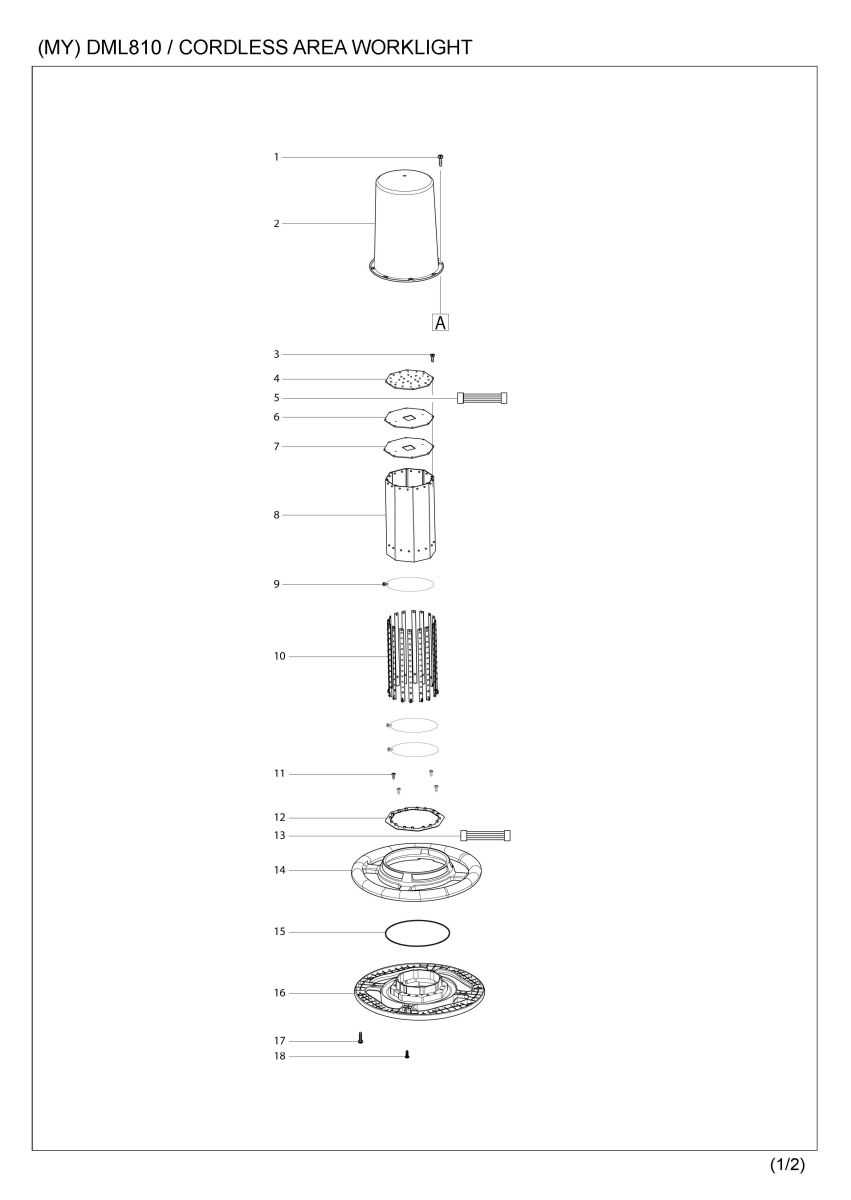

Part Diagram
Total: 83 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | QY00000001 | TAPPING SCREW 4X20 | 8 | |
| 2 | QY00000002 | LED COVER | 1 | |
| 3 | QY00000003 | TAPPING SCREW 3.5X14 | 8 | |
| 4 | QY00000004 | LED PLATE | 1 | |
| 5 | QY00000005 | WIRE UNIT 6X300 | 1 | |
| 6 | QY00000006 | INSULATION PLATE | 1 | |
| 7 | QY00000007 | HEAT SINK PLATE COVER | 1 | |
| 8 | QY00000008 | HEAT SINK PLATE | 1 | |
| 9 | QY00000009 | TAPPING SCREW 3X6 | 48 | |
| 10 | QY00000010 | LED PLATE LONG | 16 | |
| 11 | QY00000011 | TAPPING SCREW 3X12 | 4 | |
| 12 | QY00000012 | DISTRIBUTION UNIT FOR LED | 1 | |
| 13 | QY00000013 | WIRE UNIT 6X1000 | 1 | |
| 14 | QY00000014 | CIRCLE HANDLE UPPER | 1 | |
| 15 | QY00000015 | O-RING | 1 | |
| 16 | QY00000016 | CIRCLE HANDLE LOWER | 1 | |
| 17 | QY00000001 | TAPPING SCREW 4X20 | 8 | |
| 18 | QY00000017 | TAPPING SCREW 3.5X14 | 12 | |
| 19 | QY00000018 | SWITCH COVER | 1 | |
| 20 | QY00000019 | INDICATOR COVER | 1 | |
| 21 | QY00000020 | INDICATOR UNIT | 1 | |
| 22 | QY00000021 | SWITCH PCB BASE | 1 | |
| 23 | QY00000017 | TAPPING SCREW 3.5X14 | 3 | |
| 24 | QY00000022 | SWITCH UNIT | 1 | |
| 25 | QY00000023 | WIRE UNIT 10X850 | 1 | |
| 26 | QY00000017 | TAPPING SCREW 3.5X14 | 6 | |
| 27 | QY00000024 | TAPPING SCREW 5X20 | 6 | |
| 28 | QY00000073 | HOUSING SET | 1 | |
| 28 | D10 | INC. 31 | ||
| 29 | QY00000026 | TAPPING SCREW 3X8 | 8 | |
| 30 | QY00000027 | REFLECTOR | 4 | |
| 31 | QY00000073 | HOUSING SET | 1 | |
| 31 | D10 | INC. 28 | ||
| 32 | QY00000029 | LATCH | 1 | |
| 33 | QY00000030 | PIN 2.5X73 | 1 | |
| 34 | QY00000031 | PIN 4X75 | 1 | |
| 35 | QY00000032 | BATTERY COVER PLATE | 1 | |
| 36 | QY00000033 | BATTERY COVER | 1 | |
| 37 | QY00000034 | PIN 2.5X52.5 | 1 | |
| 38 | QY00000035 | BATTERY COVER BASE | 1 | |
| 39 | QY00000036 | TAPPING SCREW 3X12 | 2 | |
| 40 | QY00000037 | BATTERY COVER PACKING | 1 | |
| 41 | QY00000038 | CABLE | 1 | |
| 041-1 | QY00000090 | CABLE | 1 | |
| 42 | QY00000039 | POWER UNDER COVER | 1 | |
| 43 | QY00000040 | PCB BOARD | 1 | |
| 44 | QY00000041 | POWER COVER | 1 | |
| 45 | QY00000011 | TAPPING SCREW 3X12 | 4 | |
| 46 | QY00000042 | WIRE UNIT 400 | 1 | |
| 47 | QY00000043 | PACKING | 1 | |
| 48 | QY00000044 | BATTERY BOX LOWER | 1 | |
| 49 | QY00000001 | TAPPING SCREW 4X20 | 8 | |
| 50 | QY00000045 | MAIN CONTROLER UNIT | 1 | |
| 51 | QY00000017 | TAPPING SCREW 3.5X14 | 4 | |
| 52 | QY00000046 | TERMINAL | 2 | |
| 53 | QY00000047 | WIRE UNIT 300 | 2 | |
| 54 | QY00000048 | CONTROLER BOX | 1 | |
| 55 | QY00000017 | TAPPING SCREW 3.5X14 | 4 | |
| 56 | QY00000049 | BATTERY TERMINAL FIX PLATE | 1 | |
| 57 | QY00000017 | TAPPING SCREW 3.5X14 | 6 | |
| 58 | QY00000050 | UPPER GRIP | 1 | |
| 59 | QY00000024 | TAPPING SCREW 5X20 | 3 | |
| 60 | QY00000051 | LOWER GRIP | 1 | |
| 61 | QY00000024 | TAPPING SCREW 5X20 | 4 | |
| 62 | QY00000052 | AC OUTPUT SOCKET COVER | 1 | |
| 63 | QY00000036 | TAPPING SCREW 3X12 | 4 | |
| 64 | QY00000071 | AC OUTPUT SOCKET FLAME B | 1 | |
| 65 | QY00000068 | AC OUTPUT SOCKET E | 1 | |
| 66 | QY00000055 | SOCKET CASE | 2 | |
| 67 | QY00000056 | HUSE SET | 1 | |
| 68 | QY00000057 | AC INPUT SOCKET FRAME | 1 | |
| 69 | QY00000058 | AC INPUT POWER CONNECTOR | 1 | |
| 70 | QY00000036 | TAPPING SCREW 3X12 | 6 | |
| 71 | QY00000059 | AC INPUT SOCKET COVER | 1 | |
| 72 | QY00000060 | LOWER HOUSING | 1 | |
| 73 | QY00000024 | TAPPING SCREW 5X20 | 11 | |
| 74 | QY00000024 | TAPPING SCREW 5X20 | 6 | |
| 75 | QY00000061 | WASHER 5 | 6 | |
| 76 | QY00000062 | WEIGHT | 1 | |
| 77 | QY00000063 | WEIGHT COVER | 1 | |
| 78 | QY00000064 | PAN HEAD SCREW M5X20 | 6 | |
| 79 | QY00000011 | TAPPING SCREW 3X12 | 4 | |
| A01 | QY00000082 | POWER SUPPLY CORD 2500 E | 1 |
