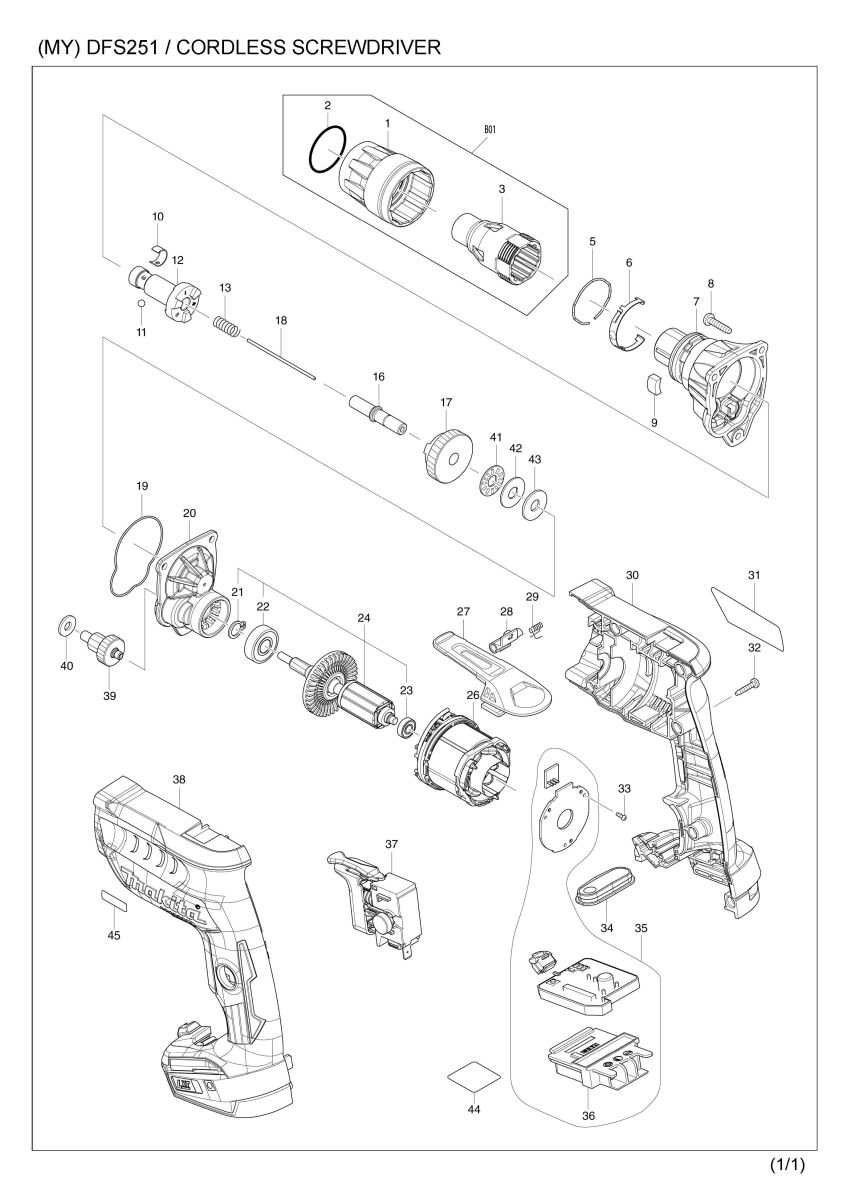

Part Diagram
Total: 74 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 455591-0 | LOCK RING | 1 | |
| 2 | 424235-3 | SEAL RING 30 | 1 | |
| 3 | 450968-4 | LOCATOR 3/8" | 1 | |
| 5 | 234348-0 | RING SPRING 30 | 1 | |
| 6 | 232245-4 | LEAF SPRING | 1 | |
| 7 | 144157-8 | GEAR HOUSING COMPLETE | 1 | |
| 7 | C10 | 213139-2 | DUST SEAL 13 | 1 |
| 8 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 008-1 | 265A48-7 | TAPPING SCREW 4X18 | 3 | |
| 9 | 423413-2 | RUBBER PLATE | 1 | |
| 10 | 232050-9 | LEAF SPRING | 1 | |
| 11 | 216001-0 | STEEL BALL 3.5 | 1 | |
| 12 | 326839-6 | SPINDLE 180N | 1 | |
| 13 | 233126-5 | COMPRESSION SPRING 6 | 1 | |
| 16 | 256343-0 | COLLARED PIN 8 | 1 | |
| 17 | 221479-4 | SPUR GEAR 34-180 | 1 | |
| 18 | 256342-2 | ROD 2 | 1 | |
| 19 | 424928-2 | SEAL RING | 1 | |
| 20 | 144161-7 | GEAR HOUSING COVER COMPLETE | 1 | |
| 20 | C10 | 210003-8 | BALLBEARING 685ZZ | 1 |
| 21 | 961005-4 | RETAINING RING S-9 | 1 | |
| 22 | 211493-8 | BALL BEARING 609DDW | 1 | |
| 23 | 210039-7 | BALL BEARING 695DDW | 1 | |
| 023-1 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 24 | 519424-4 | ROTOR ASS'Y | 1 | |
| 24 | D10 | INC. 21-23 | ||
| 024-1 | 510471-8 | ROTOR ASS'Y | 1 | |
| 024-1 | D10 | INC. 21-23 | ||
| 26 | 629135-4 | STATOR | 1 | |
| 27 | 162272-6 | HOOK | 1 | |
| 28 | 142908-3 | LEVER COMPLETE | 1 | |
| 028-1 | 140M84-5 | LEVER COMPLETE | 1 | |
| 29 | 233619-2 | TORSION SPRING 3 | 1 | |
| 30 | 183F17-5 | HOUSING SET | 1 | |
| 30 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 30 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 30 | D10 | INC. 38 | ||
| 31 | 852V41-2 | DFS251 NAME PLATE | 1 | |
| 32 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | |
| 33 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 34 | 144162-5 | SWITCH PLATE COMPLETE | 1 | |
| 35 | 620616-1 | CONTROLLER COMPLETE | 1 | |
| 35 | D10 | INC. 36 | ||
| 36 | 643860-3 | TERMINAL | 1 | |
| 37 | 650733-3 | SWITCH C3JW-4B-2L | 1 | |
| 38 | 183F17-5 | HOUSING SET | 1 | |
| 38 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 38 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 38 | D10 | INC. 30 | ||
| 39 | 221478-6 | GEAR COMPLETE 9-23 | 1 | |
| 40 | 267100-1 | FLAT WASHER 6 | 1 | |
| 41 | 216415-3 | THRUST NEEDLE CAGE 821 | 1 | |
| 041-1 | 216415-3 | THRUST NEEDLE CAGE 821 | 1 | |
| 42 | 216212-7 | WASHER 821 | 1 | |
| 43 | 261111-8 | URETHANE WASHER 8 | 1 | |
| 44 | 852U75-9 | DFS251 SERIAL NO. LABEL | 1 | |
| 45 | 810W86-2 | 2500RPM INDICATION LABEL | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03 | 784802-9 | MAGNETIC SOCKET BIT 3/8-65 | 1 | |
| A04 | 450128-8 | BATTERY COVER | 1 | |
| A05 | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A05A | D10 | COMPO-PARTS | ||
| A06A | 197600-6 | BATTERY BL1830B SET | 2 | |
| A06B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A06C | 197280-8 | BATTERY BL1850B SET | 2 | |
| A06-1A | 197600-6 | BATTERY BL1830B SET | 2 | |
| A06-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A06-1C | 197280-8 | BATTERY BL1850B SET | 2 | |
| A07 | 821645-9 | PLASTIC CARRYING CASE | 1 | |
| A07A | C10 | 162315-4 | LATCH | 2 |
| A07A | C20 | 452137-3 | HANDLE | 1 |
| B01 | 197027-0 | LOCATOR 3/8" SET | 1 | |
| B01 | D10 | INC. 1-3 |
