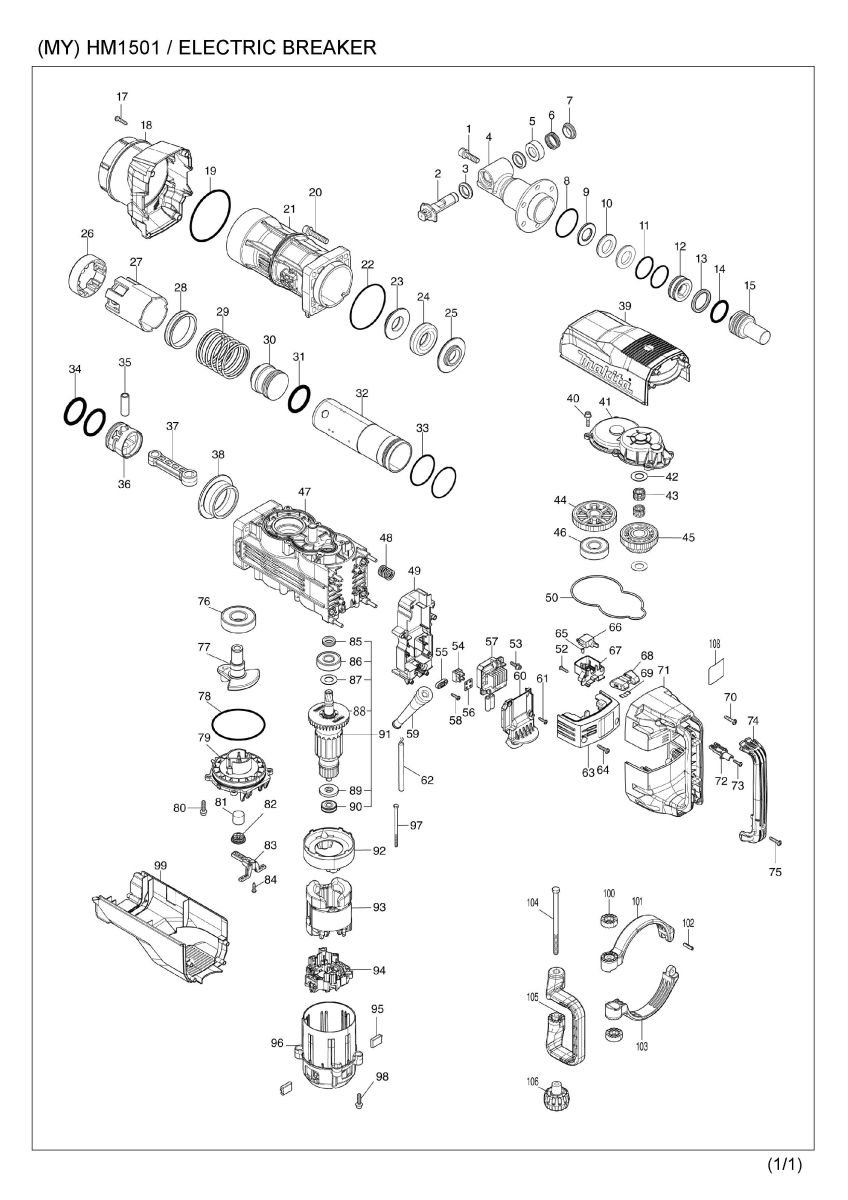

Part Diagram
Total: 116 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 265B53-0 | H.S HEAD BOLT M10X35 WM | 6 | |
| 002 | 327671-1 | TOOL RETAINER | 1 | |
| 003 | 262197-5 | RUBBER RING 20 | 2 | |
| 004 | 313322-2 | TOOL HOLDER A | 1 | |
| 005 | 327672-9 | SPRING BASE B | 1 | |
| 006 | 232641-6 | COMPRESSION SPRING 28 | 1 | |
| 007 | 327670-3 | RETAINER SLEEVE | 1 | |
| 008 | 213670-8 | O RING 58 | 1 | |
| 009 | 253487-7 | FLAT WASHER 26 | 1 | |
| 010 | 262198-3 | URETHANE RING 26 | 2 | |
| 010-1 | 262198-3 | URETHANE RING 26 | 2 | |
| 011 | 213569-7 | O RING 45 | 2 | |
| 012 | 327674-5 | RING 24 | 1 | |
| 013 | 213911-2 | X-RING 38 | 1 | |
| 014 | 213912-0 | O-RING 40 | 1 | |
| 015 | 327668-0 | IMPACT BOLT A | 1 | |
| 017 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 018 | 412874-1 | BARREL COVER | 1 | |
| 019 | 213916-2 | O-RING106 | 1 | |
| 020 | 265B55-6 | H.S HEAD BOLT M10X50 WM | 4 | |
| 021 | 313324-8 | BARREL | 1 | |
| 022 | 213806-9 | O RING 90 | 1 | |
| 023 | 327667-2 | SHOULDER RING 30 B | 1 | |
| 024 | 262196-7 | RUBBER RING 31 | 1 | |
| 025 | 327666-4 | SHOULDER RING 30 A | 1 | |
| 026 | 313321-4 | GUIDE RING | 1 | |
| 027 | 412859-7 | SLIDE SLEEVE | 1 | |
| 028 | 327664-8 | SLEEVE 65 | 1 | |
| 029 | 232646-6 | COMPRESSION SPRING 66 | 1 | |
| 030 | 327665-6 | STRIKER | 1 | |
| 031 | 213913-8 | O-RING 48 | 1 | |
| 032 | 327662-2 | CYLINDER 59 | 1 | |
| 033 | 213656-2 | O RING 53 | 2 | |
| 034 | 213913-8 | O-RING 48 | 2 | |
| 035 | 327663-0 | PIPE 15 | 1 | |
| 036 | 412858-9 | PISTON | 1 | |
| 037 | 412857-1 | CONNECTING ROD | 1 | |
| 038 | 327661-4 | SPACER | 1 | |
| 039 | 412875-9 | TOP COVER | 1 | |
| 040 | 266923-4 | H.S.HEAD BOLT M6X25 WITH GM | 6 | |
| 041 | 413211-2 | GEAR COVER | 1 | |
| 042 | 267487-1 | FLAT WASHER 17 | 2 | |
| 043 | 212230-3 | NEEDLE CAGE 1715 | 2 | |
| 044 | 227832-2 | HELICAL GEAR 53 | 1 | |
| 045 | 227833-0 | GEAR COMPLETE 31-45 | 1 | |
| 046 | 210234-9 | BALL BEARING 2216LLB | 1 | |
| 047 | 140W39-0 | CRANK HOUSING B COMPLETE | 1 | |
| 048 | 232645-8 | COMPRESSION SPRING 16B | 4 | |
| 049 | 412868-6 | CONTROLLER CASE | 1 | |
| 050 | 422636-9 | SEAL RING | 1 | |
| 052 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 053 | 266903-0 | HEX.S.HEAD BOLT M5X20 WITH WR | 2 | |
| 054 | 654741-6 | TERMINAL BLOCK | 2 | |
| 055 | 687053-2 | STRAIN RELIEF | 1 | |
| 056 | 685756-2 | RUBBER SHEET | 2 | |
| 057 | 620E05-0 | CONTROLLER | 1 | |
| 058 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 059 | 682560-0 | CORD GUARD 10 | 1 | |
| 060 | 412869-4 | CORD COVER | 1 | |
| 061 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 062 | 692623-4 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | |
| 063 | 140W49-7 | CONTROLLER COVER COMPLETE | 1 | |
| 064 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 065 | 263027-3 | RUBBER PIN 4 | 1 | |
| 066 | 651423-1 | SWITCH | 1 | |
| 066-1 | 651423-1 | SWITCH | 1 | |
| 067 | 412878-3 | SWITCH HOLDER | 1 | |
| 068 | 451112-6 | SLIDE LEVER | 1 | |
| 069 | 232209-8 | LEAF SPRING | 1 | |
| 070 | 266041-8 | TAPPING SCREW 5X25 | 8 | |
| 071 | 140W50-2 | HANDLE COMPLETE | 1 | |
| C10 | 263044-3 | RUBBER PIN 6 | 4 | |
| 072 | 412879-1 | SWITCH SUPPORT | 1 | |
| 073 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 074 | 412880-6 | HANDLE COVER | 1 | |
| 075 | 266041-8 | TAPPING SCREW 5X25 | 1 | |
| 076 | 210233-1 | BALL BEARING 2818LLU | 1 | |
| 077 | 327660-6 | CRANK SHAFT | 1 | |
| 078 | 213914-6 | O-RING 100 | 1 | |
| 079 | 412864-4 | CRANK CAP B | 1 | |
| 080 | 266923-4 | H.S.HEAD BOLT M6X25 WITH GM | 4 | |
| 081 | 443127-7 | FILTER | 1 | |
| 082 | 424668-2 | FILTER CAP | 1 | |
| 083 | 412867-8 | FILTER GUIDE | 1 | |
| 084 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 085 | 332129-7 | SEALING SCREW | 1 | |
| 086 | 211152-4 | BALL BEARING 6303LLU | 1 | |
| 087 | 267487-1 | FLAT WASHER 17 | 1 | |
| 088 | 240213-3 | FAN 80 | 1 | |
| 089 | 681630-2 | INSULATION WASHER | 1 | |
| 090 | 210232-3 | BALL BEARING 6200DDW | 1 | |
| 091 | 515544-2 | ARMATURE ASSY 240V | 1 | |
| D10 | INC. 85-90 | |||
| 092 | 412861-0 | BUFFLE PLATE | 1 | |
| 093 | 634749-6 | FIELD 240V | 1 | |
| 094 | 632R65-8 | BRUSH HOLDER UNIT | 1 | |
| 095 | 197129-2 | CARBON BRUSH CB-218 | 1 | |
| 096 | 412860-2 | MOTOR HOUSING | 1 | |
| 097 | 265B54-8 | + HEX BOLT M5X95 WITH GM | 2 | |
| 098 | 266923-4 | H.S.HEAD BOLT M6X25 WITH GM | 4 | |
| 099 | 412886-4 | REAR COVER B | 1 | |
| 100 | 417002-3 | SIDE HANDLE CAM | 2 | |
| 101 | 312A28-5 | SIDE HANDLE BASE A | 1 | |
| 102 | 951166-8 | SPRING PIN 5-24 | 1 | |
| 103 | 312A29-3 | SIDE HANDLE BASE B | 1 | |
| 104 | 265439-6 | HEX. BOLT M8X150 | 1 | |
| 105 | 412881-4 | SIDE HANDLE | 1 | |
| 106 | 252640-2 | WING NUT M8 | 1 | |
| 108 | 858C25-4 | HM1501 NAME PLATE | 1 | |
| A01 | D-15285 | BULL POINT 400 | 1 | |
| A01-1 | D-15285 | BULL POINT 400 | 1 | |
| A02 | 821839-6 | PLASTIC CARRYING CASE | 1 | |
| A03 | 8028F6-2 | HM1501 PLASTIC CASE LABEL | 2 | |
| B01 | 191M24-6 | HAMMER SERVICE KIT | 1 | |
| C10 | 181490-7 | HAMMER GREASE 30G | 4 | |
| D10 | INC. 13,14,31,34,95 |
