Product Detail
![](data/images/item/43197_img_TD111D.png)
![](data/images/itemimage/thm_58562_img_TD111D_act_1.png)
![](data/images/itemimage/thm_05156_img_TD111D_act_2.pdf.png)
TD111DSME/ DWAE/ DWYE/ DZ

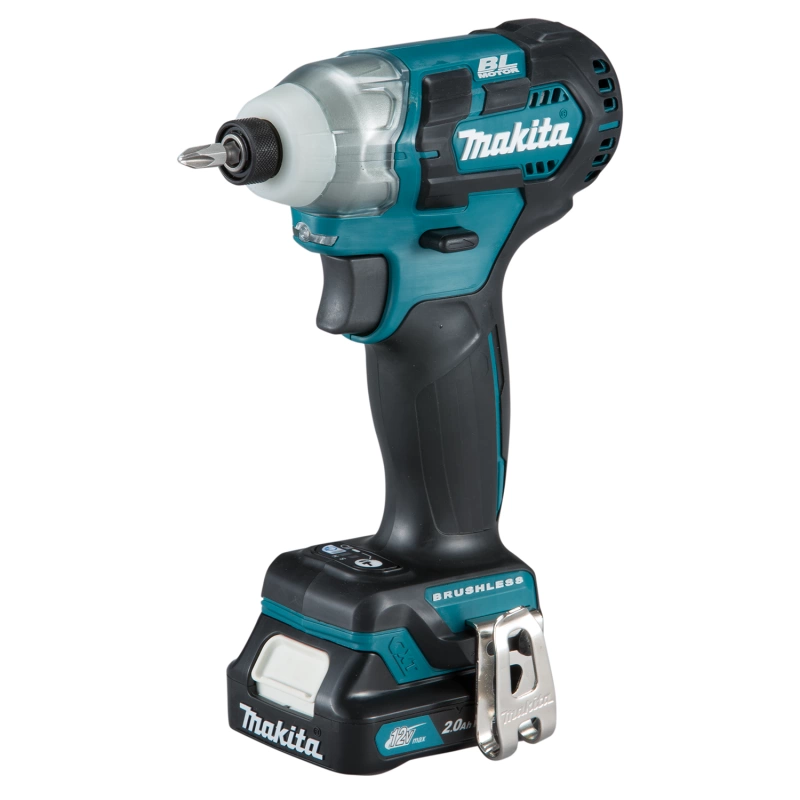

12Vmax Cordless Impact Driver
Features
- 3-Mode operation: A-mode / Hard mode / Soft mode for multiple applications
- A-Mode feature helps eliminate "screw cam-out" and "cross threading" by driving at low speed until tightening begins
- Best possible ergonomic handle for screwdriving applications
- Built-in LED light with preglow and afterglow functions illuminates the work area
- Convenient 6.35 mm (1/4") hex chuck for quick bit changes
Specification
![12Vmax bar 4.0Ah](https://www.makita.my/data/ckfinder/images/icon/batterybar/12vmaxbar40ah.png)
Thumbnail | ![]() |
Model Name | TD111DSME/ DWAE/ DWYE/ DZ |
Capacity | Machine Screw: M4 - M8 (5/32 - 5/16") Standard Bolt: M5 - M14 (3/16 - 9/16") High Tensile Bolt: M5 - M12 (3/16 - 1/2") Coarse Thread (in length): 22 - 90 mm (7/8 - 3-1/2") |
Product Name | 12Vmax Cordless Impact Driver |
Hex Shank | 6.35 mm (1/4") |
Impacts Per Minute (IPM) | Hard: 0 - 3,900 | Soft: 0 - 1,600 |
Max Fastening Torque | 135 N·m (1,200 in. lbs.) |
No Load Speed (RPM) | Hard: 0 - 3,000 | Soft: 0 - 1,300 |
Dimensions (L x W x H) | 135 x 66 x 210 mm (5-5/16" x 2-5/8" x 8-1/4") |
Net Weight | 0.97 - 1.1 kg (2.1 - 2.5 lbs.) |
Work Amount (approx.) | 340 pcs with BL1021B Coarse Thread Wood Screw 45 mm (Melapi) |
Standard Equipment
Philips Bit, Belt Clip
Available Option(s)
DSME: 1x Speed Charger, 2x 4.0Ah Battery
DWAE: 1x Standard Charger, 2x 2.0Ah Battery
DWYE: 1x Standard Charger, 2x 1.5Ah Battery
DZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
