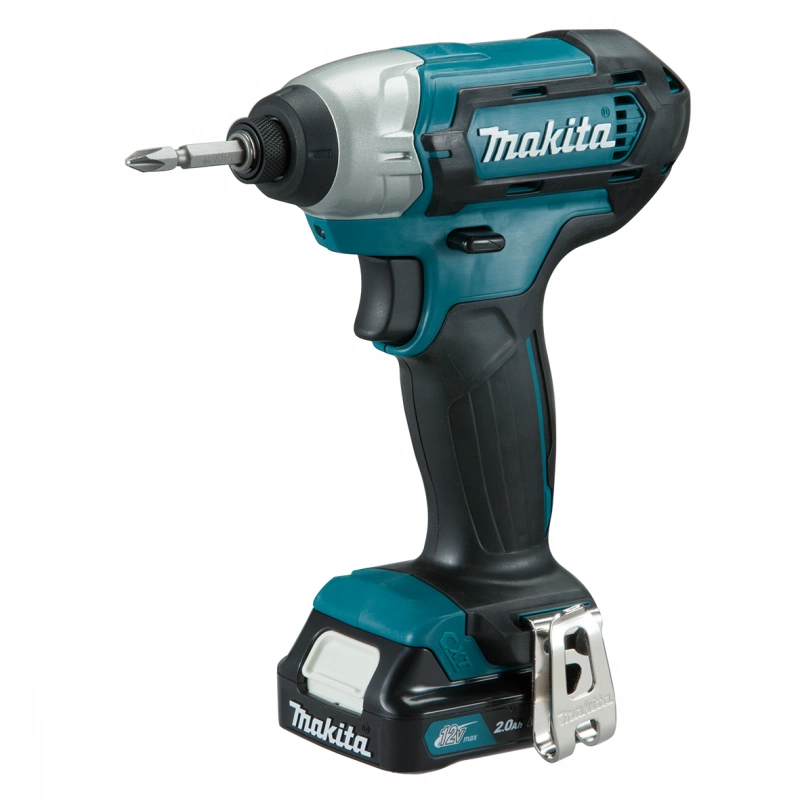

TD110DSME/ DWAE/ DWYE/ DZ
12Vmax Cordless Impact Driver
Features
- Best possible ergonomic handle for screwdriving applications
- Multi-contact terminals ensure stable contact with battery even under extreme vibration
- Built-in LED light with pre-glow and afterglow functions illuminates the work area
- Convenient 6.35 mm (1/4") hex chuck for quick bit changes
- Electric brake for maximum productivity and increased operator safety
Specification
![12Vmax bar 4.0Ah](https://www.makita.my/data/ckfinder/images/icon/batterybar/12vmaxbar40ah.png)
Thumbnail | ![]() |
Model Name | TD110DSME/ DWAE/ DWYE/ DZ |
Capacity | Machine Screw: M4 - M8 (5/32 - 5/16") Standard Bolt: M5 - M12 (3/16 - 1/2") High Tensile Bolt: M5 - M10 (3/16 - 3/8") Coarse Thread (in length): 22 - 90 mm (7/8 - 3-1/2") |
Product Name | 12Vmax Cordless Impact Driver |
Hex Shank | 6.35 mm (1/4") |
Impacts Per Minute (IPM) | 0 - 3,500 |
Max Fastening Torque | 110 N·m (970 in. lbs.) |
No Load Speed (RPM) | 0 - 2,600 |
Dimensions (L x W x H) | 153 x 66 x 204 mm (6" x 2-5/8" x 8-1/8") |
Net Weight | 1.0 - 1.2 kg (2.3 - 2.6 lbs.) |
Work Amount (approx.) | 250 pcs with BL1021B Coarse Thread Wood Screw 45 mm (Melapi) |
Standard Equipment
Philips Bit, Belt Clip
Available Option(s)
DSME: 1x Speed Charger, 2x 4.0Ah Battery
DWAE: 1x Standard Charger, 2x 2.0Ah Battery
DWYE: 1x Standard Charger, 2x 1.5Ah Battery
DZ: Without Charger, Battery & Carrying Case
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
