Product Detail
TL064DSME/ DWAE/ DZ

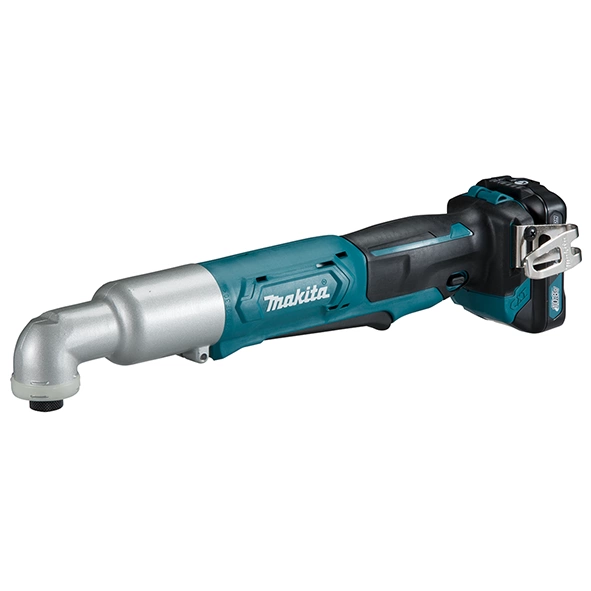

12Vmax Cordless Angle Impact Driver
Features
- Compact & lightweight right angle impact driver for fastening and loosening in tight spaces
- Large conveniently located paddle switch for comfortable operation
- Over one foot of tool extension for extra reach into deep tight spaces
- LED light with preglow and afterglow feature illuminates the work area
- 360 degrees rotatable head enables operation from optimum angle
Specification
| Thumbnail |  |
| Model Name | TL064DSME/ DWAE/ DZ |
| Capacity | Machine Screw: M4 - M8 (5/32 - 5/16") Standard Bolt: M4 - M12 (5/32 - 1/2") High Tensile Bolt: M4 - M8 (5/32 - 5/16") Coarse Thread (in length): 22 - 75 mm (7/8" - 2-31/32") |
| Product Name | 12Vmax Cordless Angle Impact Driver |
| Hex Shank | 6.35 mm (1/4") |
| Impacts Per Minute (IPM) | 0 - 3,000 |
| Max Fastening Torque | 60 N·m (530 in. lbs.) |
| No Load Speed (RPM) | 0 - 2,000 |
| Dimensions (L x W x H) | 361 x 66 x 86 mm (14-1/4" x 2-5/8" x 3-3/8") |
| Net Weight | 1.2 - 1.6 kg (2.7 - 3.4 lbs.) |
| Work Amount (approx.) | 933 pcs with BL1021B Machine Screw M8 x 16 mm |
Standard Equipment
Philips Bit, Belt Clip
Available Option(s)
DSME: 1x Speed Charger, 2x 4.0Ah Battery
DWAE: 1x Standard Charger, 2x 2.0Ah Battery
DZ: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
