Product Detail
Features
- Powerful 1,100 W motor delivers 8.0 J of impact energy to handle the most demanding applications
- Integrated damper spring at the base of the impact bolt is engineered to absorb impact vibrations from the drill bit
- Lock-on or trigger activation in “Chipping Only” mode with a push button start/stop control
- LED service light notifies the user approximately 8 hours before the brushes need to be replaced
- LED power light indicates switch failure or cord damage
Specification
| Thumbnail |  |

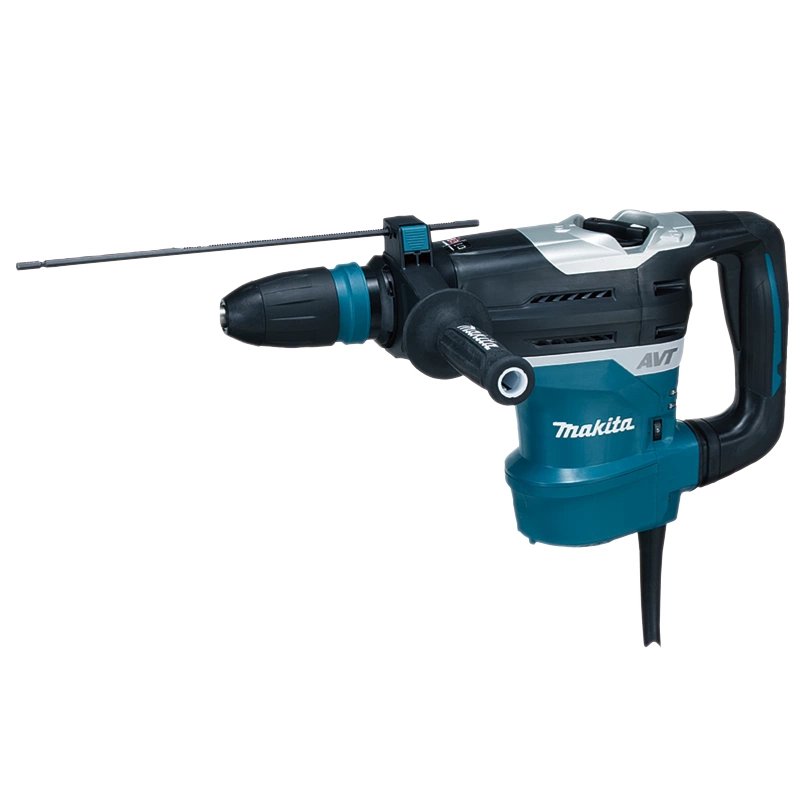

| Model Name | HR4013C |
| Product Name | Rotary Hammer |
| Continuous Rating Input | 1,100 W |
| Impact Energy | EPTA-Procedure 05/2009: 8 J Our Experimental Conditions: 11.4 J |
| Capacity | Concrete (with TCT Bit): 40 mm (1-9/16") Concrete (with Core Bit): 105 mm (4-1/8") |
| Impacts Per Minute (IPM) | 1,450 - 2,900 |
| No Load Speed (RPM) | 250 - 500 |
| Dimensions (L x W x H) | 479 x 112 x 263 mm (18-11/16 x 4-3/8 x 10-3/8") |
| Net Weight | 6.8 - 6.9 kg (14.9 - 15.3 lbs.) |
| Power Supply Cord | 5.0 m (16.4 ft) |
Standard Equipment
Depth Gauge, Side Handle, Side Grip, Bit Grease, Cloth
Depth Gauge, Side Handle, Side Grip, Bit Grease, Cloth
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
