Product Detail
Features
- All ball and needle bearings for longer life
- Built-in thickness gauge for operator convenience
- Easy punch and die replacement for less down time
- Lock-On Button enables easy continuous operation
- Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation
Specification
Thumbnail | |
Model Name | JN3201 |

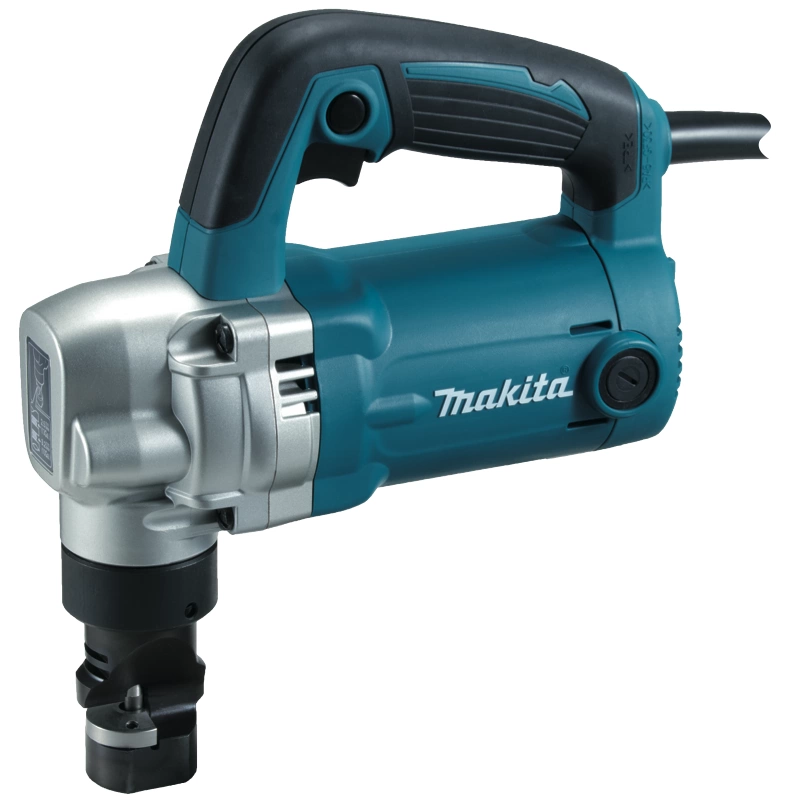

Product Name | Nibbler |
Continuous Rating Input | 710 W |
Capacity | Steel up to 400 N/mm² : 3.2 mm Steel up to 600 N/mm² : 2.5 mm Steel up to 800 N/mm² : 1.0 mm Aluminum up to 200 N/mm² : 3.5 mm |
Min Cutting Radius | Outside edge : 128 mm (5 - 1/16") Inside edge : 120 mm (4 - 3/4") |
Strokes Per Minute (SPM) | 1,300 |
Dimensions (L x W x H) | 225 x 90 x 254 mm (8-7/8" x -1/2" x 10") |
Net Weight | 3.4 kg (7.5 lbs.) |
Power Supply Cord | 2.5 m (8.2 ft) |
Standard Equipment
Punch, Die, Wrench 50, Hex Wrench, Washer
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
