Product Detail
Features
- High performance and durability at less expense
- 3-Mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
- Re-located operating mode lever for increased protection and durability
- Improved bit guide for increased bit stability during drilling applications
- Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
Specification
Thumbnail | |
Model Name | M8701X3B |

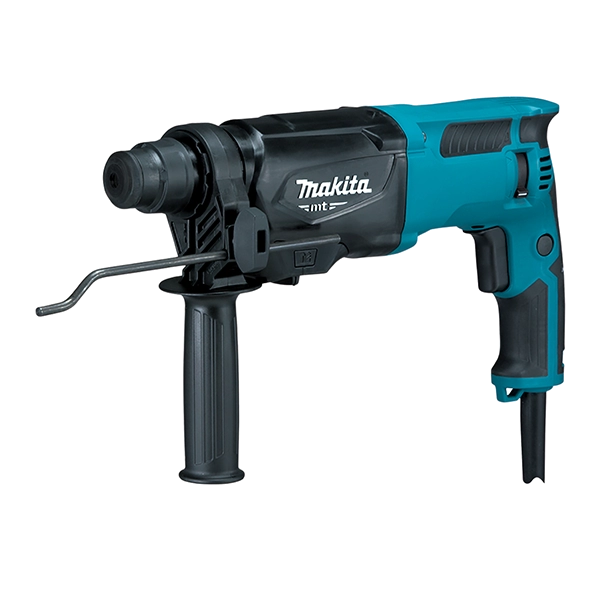

Product Name | Combination Hammer |
Continuous Rating Input | 800 W |
Impact Energy | EPTA-Procedure 05/2009: 2.3 J |
Capacity | Concrete: 26 mm (1") Steel: 13 mm (1/2") Wood: 32 mm (1-1/4") |
Impacts Per Minute (IPM) | 0 - 4,500 |
No Load Speed (RPM) | 0 - 1,200 |
Dimensions (L x W x H) | 362 x 71 x 194 mm (14-1/4" x 2-13/16" x 7-5/8") |
Net Weight | 2.7 kg (6 lbs.) |
Power Supply Cord | 4.0 m (13.1 ft) |
Standard Equipment
Side Grip, Depth Gauge, Drill Chuck 13 mm (194041-7), SDS-Plus Chisel Assortment 3 pcs Set (D-30134)
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
