Product Detail
Features
- Lightweight at Only 1.3 kg (2.9 lbs) for Increased Maneuverability
- Air duster for sweeping up job site floor as well as workpieces
- Compatible with EN ISO11148-13
- Slim soft grip provides increased comfort
- Drives a range of 18 gauge brad nails, from 15mm (5/8") to 50mm (2"), into hard or soft wood applications; magazine capacity is up to 100 nails
Specification
| Thumbnail |  |
| Model Name | AF506 |
| Capacity | Length: 15 - 50 mm (5/8 - 2") Gauge: 18 Ga |
| Operating Pressure | 0.49 - 0.83 MPa (70 - 120 PSI) |
| Magazine Capacity | 100 |
| Compressed Air | Driver Stroke: 85.5 mm (3-3/8") Cylinder Bore Diameter: 28 mm (1-1/8") |

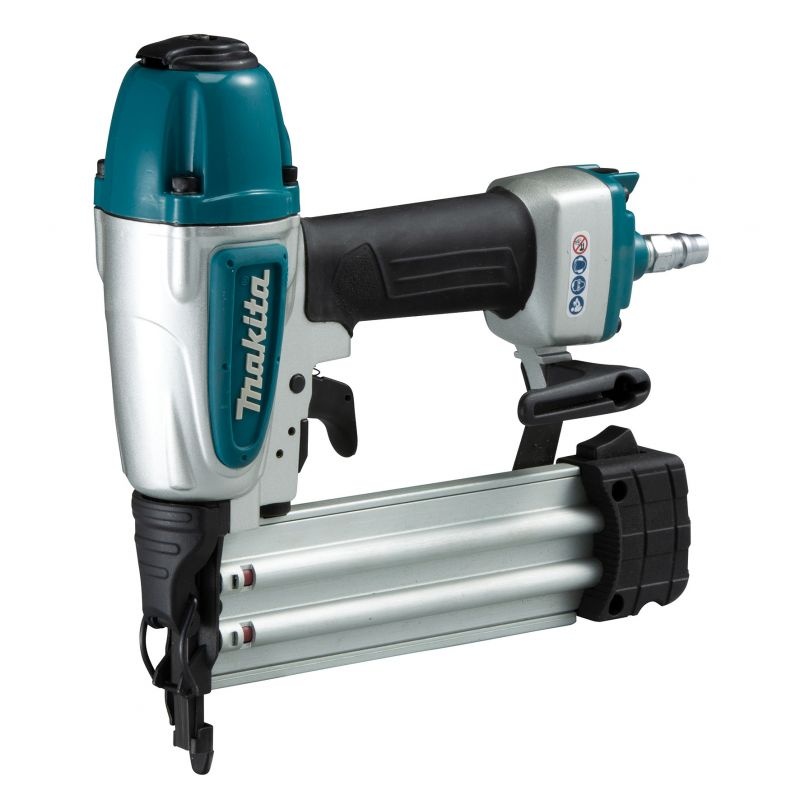

| Product Name | Pneumatic Brad Nailer |
| Dimensions (L x W x H) | 250 x 70 x 256 mm (9-7/8" x 2-3/4" x 10-1/8") |
| Net Weight | 1.3 kg (2.9 lbs.) |
Standard equipment
Safety Goggles, Nose Adapter, Oil
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
