Product Detail

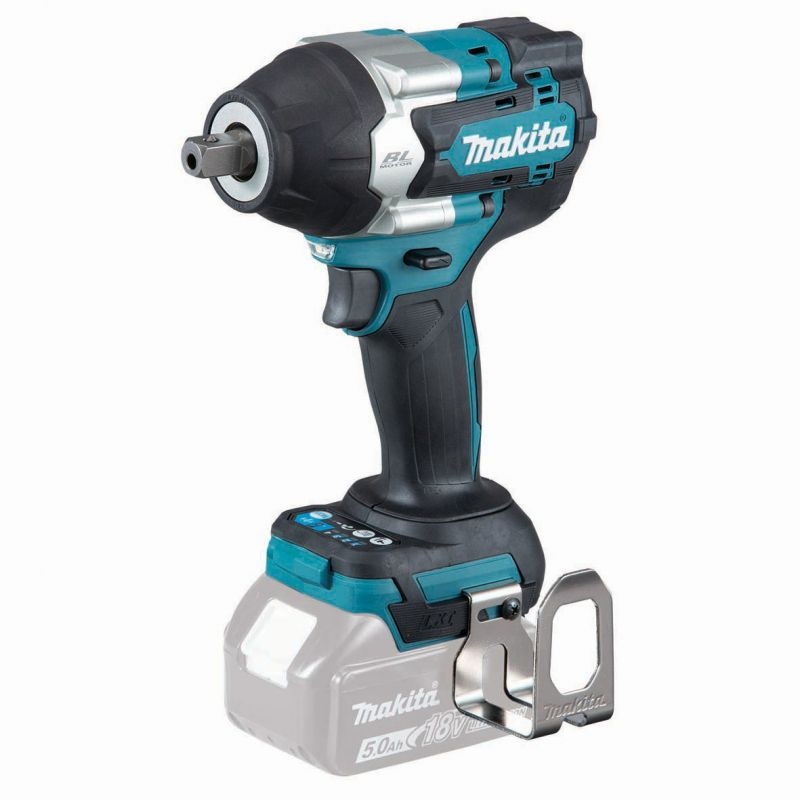

DTW701TJX1/ ZX1/ Z 12.7 mm (1/2")
18V Cordless Impact Wrench
Features
- 3 modes of reaction time for automatic stop available both in forward and reverse rotation modes
- Trigger switch with full speed mode allows for less hand and finger fatigue
- Compact design with a short overall length of 170 mm (6-11/16")
- BL motor delivers 700 N·m (520 ft.lbs.) of max torque
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Variable 4-speed provides fastening control for a wide range of applications
- Durable, reversible belt clip convenient for temporary tool hanging
Specification
Thumbnail | |
Model Name | DTW701TJX1/ ZX1/ Z |
Product Name | 18V Cordless Impact Wrench |
Square Drive | 12.7 mm (1/2") |
Fastening Capacities | Standard Bolt: M10 - M24 (3/8 - 1") High Strength Bolt (Grade 10.9): M10 - M16 (3/8 - 5/8") High Strength Bolt (Grade F10T): M12, M16 (7/16, 5/8") |
Nut-Busting Torque | 1,000 N·m (740 ft. lbs.) |
Impacts Per Minute (IPM) | Max: 0 - 2,700 | Hard: 0 - 2,400 | Mid: 0 - 1,700 | Soft: 0 - 1,000 |
Max Fastening Torque | 700 N·m (520 ft. lbs.) |
No Load Speed (RPM) | Max: 0 - 2,200 | Hard: 0 - 1,900 | Mid: 0 - 1,200 | Soft: 0 - 500 |
Dimensions (L x W x H) | 170 x 81 x 276 mm (6-11/16 x 3-3/16 x 10-7/8") |
Net Weight | 2.3 - 2.7 kg (5.1 - 6.0 lbs.) |
Standard Equipment
Hook
Available Option
TJX1: 1x Rapid Charger, 2x 5.0Ah Battery, 1x Makpac Connector Box
Z/ZX1: Without Charger & Battery
*Items of standard equipment and specifications may vary by country or area. Net weight and dimensions may differ depending on the type of battery(ies) used. All pictures shown are for illustration purpose only. Continuous Usage Time/ Work Amount: Actual performance may vary based on application.
